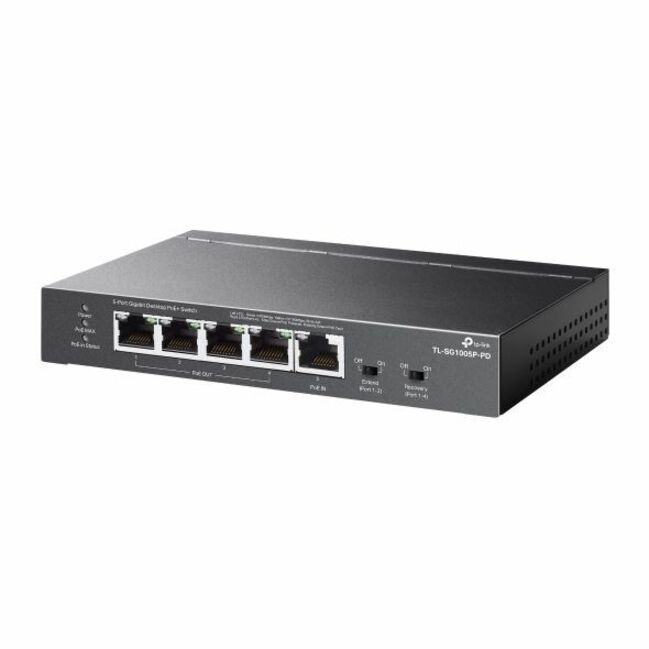

TL-SG1005P-PD is an unmanaged switch with 5 Gigabit ports that requires no AC or DC power supply. It provides 1 PoE (Power over Ethernet) IN port and 4 PoE OUT ports. It can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4. In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
5 RJ45 ports (port 1 to port 5) of the switch support Power over Ethernet (PoE) function. They can automatically detect and get power from all IEEE 802.3af/at/bt compliant Power Sourcing Equipment (PSE) at port 5 and provide power for IEEE 802.3af/at compliant Powered Devices (PDs) at port 1-4.
Overload Arrangement
TL-SG1005P-PD has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption exceeds the PoE power budget, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Intelligent Power Management
Priority (port 1 > port 2 > port 3 > port 4): This function will help protect the system when the system power is overloaded. For example. if the switch is powered by 802.3bt (type 4) with port 1, 2 and 4 consuming 15.4 W respectively, and an additional PoE device with 20 W is connected to port 3, the system will cut off the power of port 4 to compensate for the overload.
Highlight Performance
- Up to 250 m PoE power supply and data transmission under Extend Mode for port 1-2.
- With PoE Auto Recovery, the switch will constantly detect the data transmission with PoE-powered devices (PD) for port 1-4. When the switch finds that a PD stops sending data packets to the switch for a long period, the switch will reboot it automatically.
Easy to Use
TL-SG1005P-PD is easy to install and use. It requires no configuration and installation. With desktop and wall mountable design, outstanding performance and quality, the TP-Link 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+ Out TL-SG1005P-PD is a great selection for expanding your network.
- Effectively reduces downtime with improved network performance
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| PoE Budget | 66 W |
| Power Source | Power Supply |
| Power Consumption | 2.68 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100/1000Base-T |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+ |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
