What This Product Does

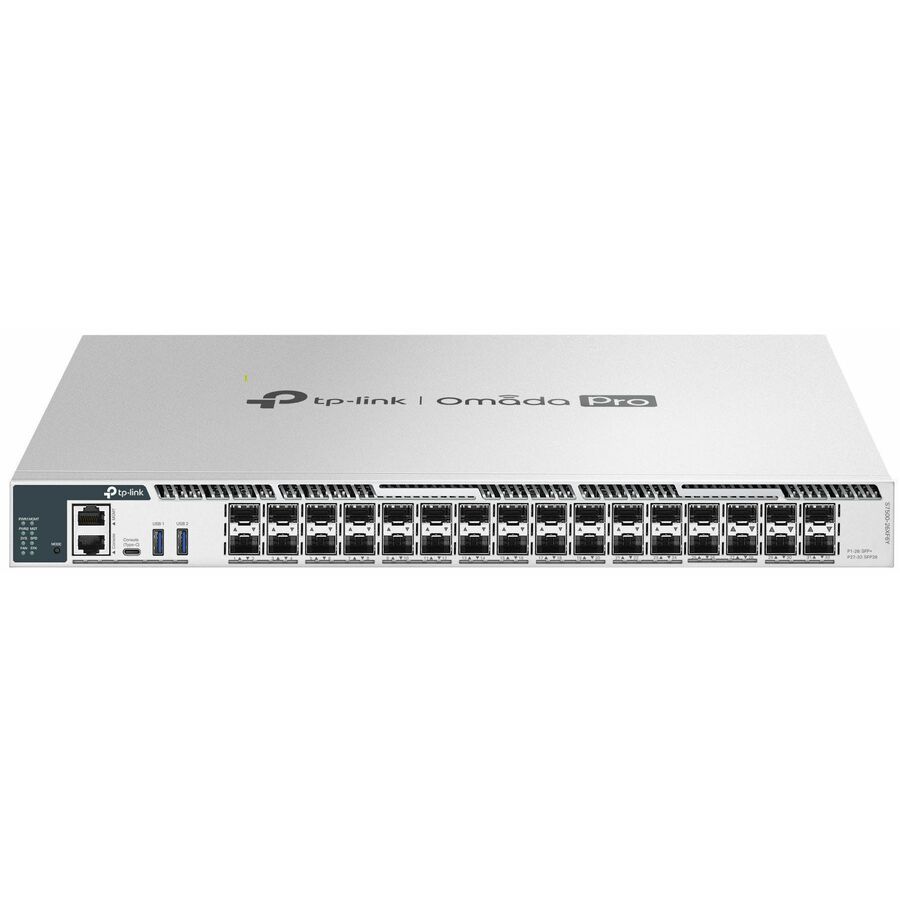

Omada Campus S7500-26XF6Y is a high-performance L3 managed switch tailored for the aggregation layer, featuring L3 routing, fast 25 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 26� 10 Gbps SFP+ slots, 6� 25 Gbps SFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-26XF6Y offers a dependable networking solution for enterprises, campus, and ISPs.
High-speed Connectivity and Powerful Stacking
26� 10 Gbps SFP+ slots and 6� 25 Gbps SFP28 slots provide up to 820 Gbps switching capacity per unit. Physical stacking of up to 12 unitsenhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing. M-LAG improves link reliability from the card level to the device level.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions. PTPv2 and 802.1AS provide sub-microsecond-level time synchronization precision by leveraging hardware timestamping.
Omada Integration
Integration into the Omada system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Omada and Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada and Omada Pro create a highly scalable network-all controlled from a single interface.
- 26� 10 Gbps SFP+ slots and 6� 25 Gbps SFP28 slots
- Physical stacking for built-in redundancy and performance
- M-LAG improves link reliability from the card level to the device level
- L3 Features: OSPF, BGP, IS-IS, VRF, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies, VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, RSPAN, and PTPv2
- Centralized cloud management via the web or the Omada app
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Number of Power Supplies Supp | 2 |
| Redundant Power Supply Suppor | Yes |
| Number of Power Supplies Inst | 1 |
| Input Voltage | 230 V AC |
| Power Source | AC |
| Power Consumption | 86.70 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 25GBase-X |
| Layer Supported | 3 |
| Ethernet Port | |
|---|---|
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 3.13 GB/s |
| Frequency | 60 Hz |
| MTBF | 632865 Hour |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 32 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 26 |
| Misc Ports | |
|---|---|
| Stack Port | Yes |
| Port/Expansion Slot Details | 6 � 25 Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
