What This Product Does

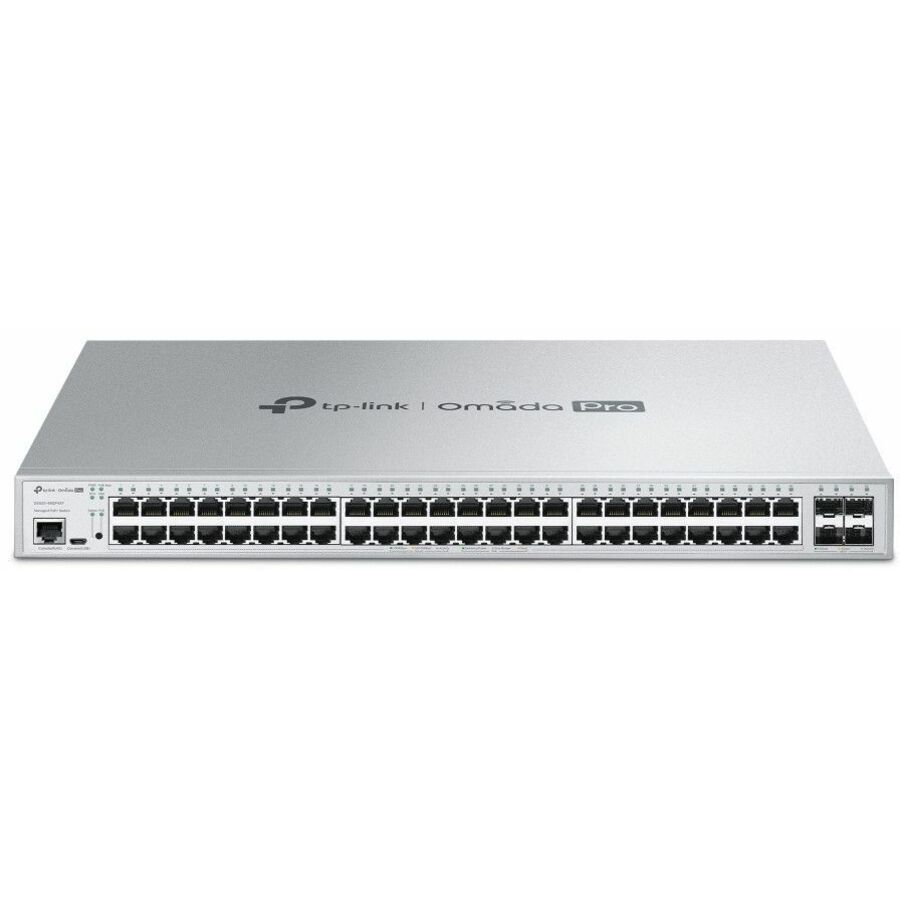

Build and expand your lightning-fast network with Omada Pro S5500-48GP4XF-a fully enterprise-level managed switch with 48� gigabit PoE+ ports and 4� 10G SFP+ ports. Users can supply up to 500 W total power to connected devices and flexibly deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support together with high-performance static routing, enterprise-level QoS, advanced security features and a selection of Layer 2 management options make S5500-48GP4XF a great choice for enterprises, MDUs, hotels, and ISPs.
Layer 2 and Layer 3 features include Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP to meet the needs of ISP customers, while IP-MAC-Port Binding, VLAN Binding, and Access Control List (ACL) functions protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime.
IEEE 802.3at/af-compliant Power over Ethernet
48� IEEE 802.3at/af-compliant PoE ports supply up to 500 W total power to 802.3at and 802.3af devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.
Enterprise Switch with 10G Uplink
4� 10 Gbps SFP+ slots deliver non-blocking performance and minimal latency, ensuring rapid, dependable connections to servers and other switches.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
Abundant L2 and L3 features
S5500-48GP4XF supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
- Effectively reduces downtime with improved network performance
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Features 48 networking ports to establish large network
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
- Rack mounting enables you to organize wires & secure cables for professional installation
- Managed switch provides a reliable foundation for your network
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Comes in silver color for better adaption to the space
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| PoE Budget | 500 W |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 635.70 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10GBase-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Frequency | 60 Hz |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 � Micro-USB Console Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
