What This Product Does

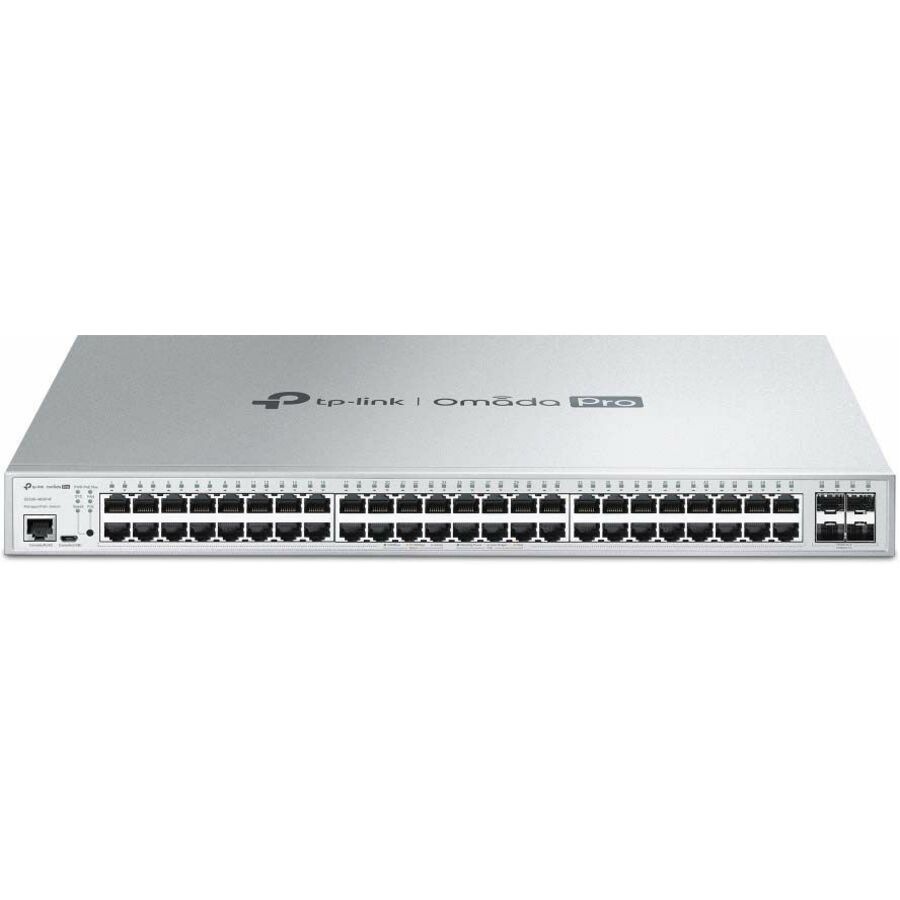

The S5500-48GP4F provides 48 Ethernet ports (10/100/1000 Mbps) compliant with 802.3at/af PoE. Users can supply up to 384 W total power to connected devices and flexibly deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support together with high-performance static routing, enterprise-level QoS, advanced security features and a selection of Layer 2 management options make S5500-48GP4F a great choice for small and medium-sized businesses.
Layer 2 and Layer 3 features include Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, and DLDP to meet the needs of ISP customers, while IP-MAC-Port Binding, VLAN Binding, and Access Control List (ACL) functions protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image mean faster setup and configuration with less downtime. This cloud-manageable access switch is ideal for enterprise branch offices and campus networks, as well as SMBs.
IEEE 802.3at/af-compliant Power over Ethernet
48� IEEE 802.3at/af-compliant PoE ports supply up to 384 W total power to 802.3at and 802.3af devices. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission-even when bandwidth is in short supply.
Abundant L2 and L3 Features
S5500-48GP4F supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
- 384 W PoE Budget
- : 48� 802.3at/af-compliant PoE+ ports with a total power supply of 384 W.
- Full Gigabit Ports
- : 48� gigabit PoE+ ports and 4� gigabit SFP slots provide high-speed connections.
- Integrated into Omada Pro
- : Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and Omada App.
- Management Flexibility
- : Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP.
- Ethernet Ring Protection Switching (ERPS)
- : Blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.
- Static Routing
- : Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies
- : ACL, IP-MAC-Port Binding, VLAN Binding, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimized Voice and Video Applications
- : L2/L3/L4 QoS and IGMP Snooping.
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| PoE Budget | 384 W |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Power Consumption | 464.20 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| Appearance | |
|---|---|
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Frequency | 60 Hz |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
