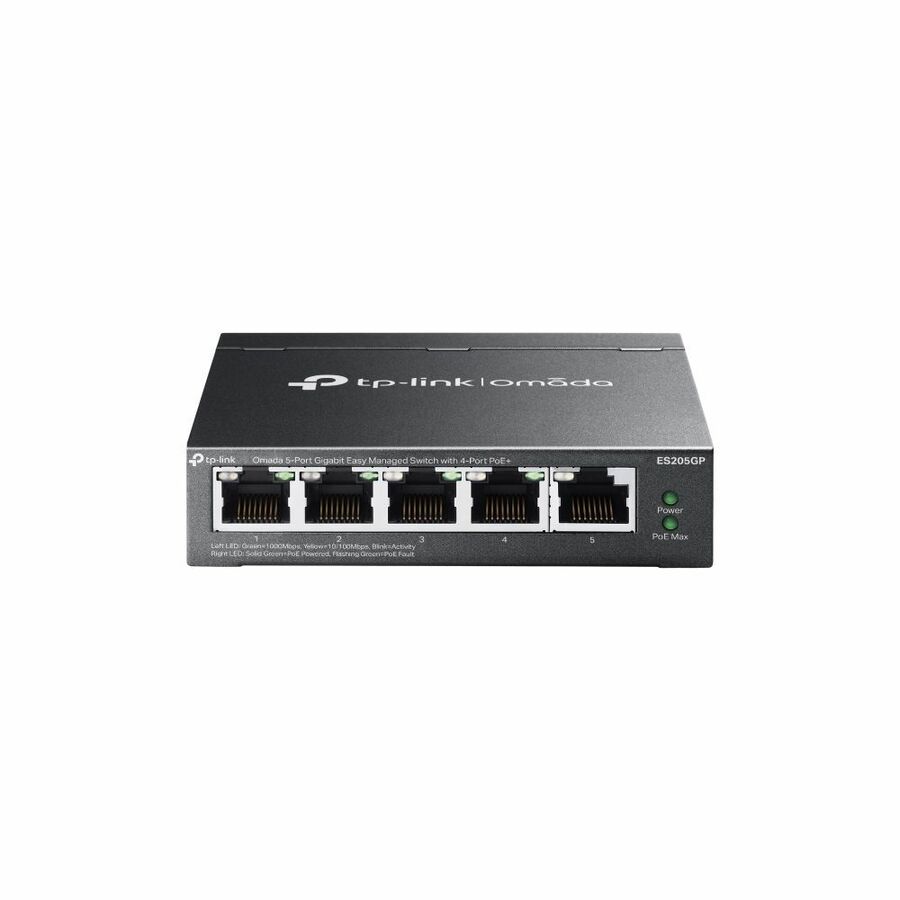

Omada Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

$ 58.49 $ 58.49
$ 58.49

$ 58.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • MTBF
  • Environmental Compliance
  • Certifications & Standards
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • 5� Gigabit RJ45 Ports
  • 65W Total PoE Budget
  • Fanless Design for Silent Operation
  • Easy Centralized Management
  • Automatic Loop Prevention
  • PoE Auto Recovery
  • Traffic Separation
  • Traffic Prioritization

Software Defined Networking (SDN) with Cloud Access

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

  • Easy to Use
  • Hardware, Software, or Cloud-Based Controllers
  • Centralized Management via Web or Omada App
  • Zero-Touch Provisioning (ZTP)

Abundant Functions for Reliable Surveillance Networking

  • Transmission Distance up to 250 m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery

Multiple Application Scenarios | Surveillance

Works with IP Cameras

Wi-Fi Coverage

Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

More from the Manufacturer

  • 5� 10/100/1000Mbps RJ45 ports (4� 802.3at/af-compliant PoE+)
  • 65W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
Brand
Brand TP-LINK Technologies Co.
Power & Battery
PoE Budget 65 W
Input Voltage 5 V DC
Power Source Power Adapter
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 5
PoE (RJ-45) Port Yes
Size / Dimensions
Form Factor Wall Mountable
General Features
Manageable Yes
MTBF 559597 Hour
Manufacturer TP-LINK Technologies Co., Ltd
Misc Ports
Port/Expansion Slot Details 1 � Gigabit Ethernet Network
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
