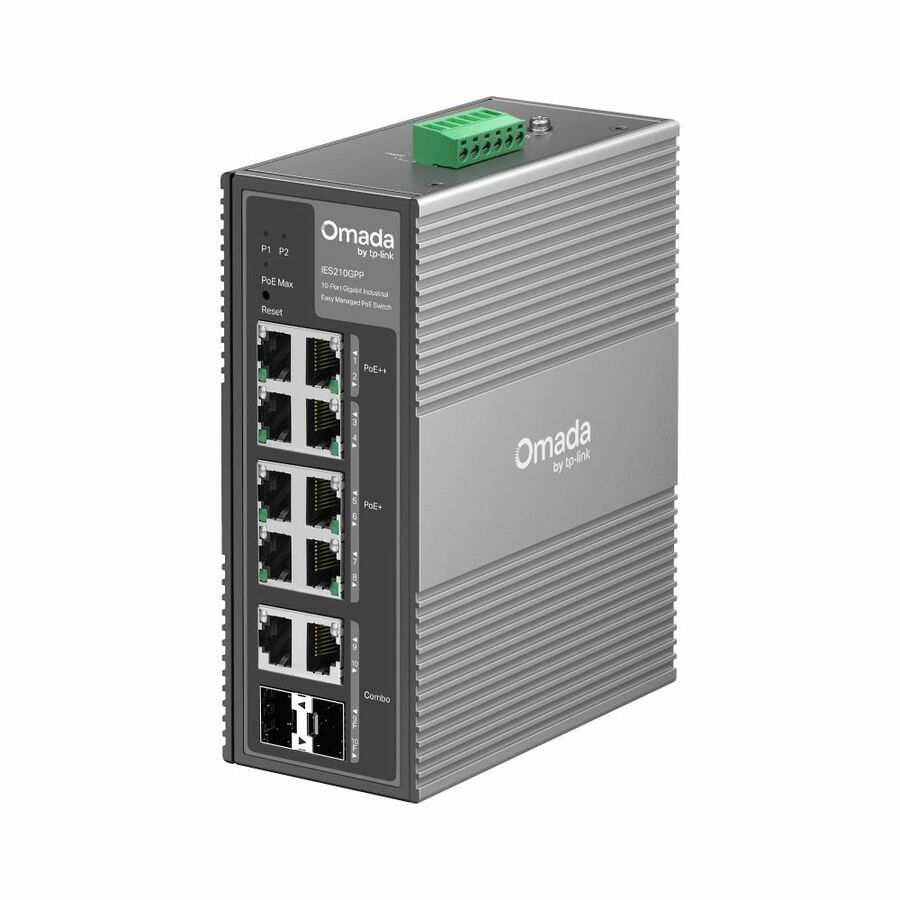

Omada Industrial10-Port Gigabit Easy Managed PoE++Switch
- 10� Gigabit Ports (2� PoE++, 6� PoE+, 2� RJ45/SFP Combo)
- 240W Total PoE Budget
- -40°C to 75°C Operating Temperature
- 12~57VDC 1+1 Redundant Power Input
- Industrial-Grade IP40 Aluminum Casing
- Abundant Functions for CCTV Networking
- Easy Centralized Management
- DIN-Rail & Wall Mounting
Industrial-Grade Protection Built for Harsh Environments
-40°C to 75°C Operating Temperature
6kV Lightning Protection
Industrial-Grade IP40 Aluminum Casing
Enhanced Networking Stability and Security | 1+1 Redundant Power Input
Equipped with dual power input ports and a wide 12-57V DC voltage range, ensuring continuous operation even if one power supply fails.
Real-Time Fault Alarm
Connected to an external alarm, the switch outputs an alarm signal promptly if a port is disconnected or power input is abnormal.
Gigabit PoE++ Ports for Reliable High-PowerDevice Support
2� Gigabit PoE++ RJ45 Ports
6� Gigabit PoE+ RJ45 Ports
Budget up to 60W per PoE++ Port
Total 240W PoE Power
Easy Operation andMaintenance with Omada'sFree Cloud Management
Easy to Use with Plug-and-Play Design and Simple Configuration.
Free and Easy Centralized Cloud Management via Omada Central Essentials
Access Logs and Receive Alert Notifications at Any Time
Easily Configure Surveillance Features Like 24/7 Camera Monitoring & Automatic Recovery
Flexible Deployment Options
DIN-rail
Wall-mount
Diverse Industry Applications
Surveillance
Industrial Automation
Energy
Smart Buildings
- 8� Gigabit RJ45 Ports (2� PoE++, 6� PoE+)
- 2� Gigabit Combo RJ45/SFP Slots
- 240W Power Budget with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | Yes |
| Plug/Connector Type | Terminal Block |
| PoE Budget | 240 W |
| Input Voltage | 46 V DC |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Switch Management Type | Easy Managed |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 10 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | Yes |
| Maximum Data Transfer Rate | 128 MB/s |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Shared SFP Slot | Yes |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 � Gigabit Ethernet RJ-45/SFP Combo Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
