- 9� Gigabit RJ45 ports, and 1� Gigabit combo SFP/RJ45 Port
- 8� PoE+ ports transfer data and power via a single cable with a total power budget of 123 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m (820ft) data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery.
- Plug and Play. No configuration or central management required.
- Fanless design reduces power consumption and works silently in its location
- Effectively increases available bandwidth on your network
- Cascade to other network devices through the uplink port to expand your local area network
- Features 9 networking ports to easily establish a local network or expand your existing one
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| PoE Budget | 123 W |
| Input Voltage | 230 V AC |
| Power Source | Power Adapter |
| Power Consumption | 141.40 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 9 |
| PoE (RJ-45) Port | Yes |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| General Features | |
|---|---|
| Manageable | No |
| Maximum Data Transfer Rate | 128 MB/s |
| Frequency | 60 Hz |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1.0 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 1 � 1000 Mbps SFP Expansion Port |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |

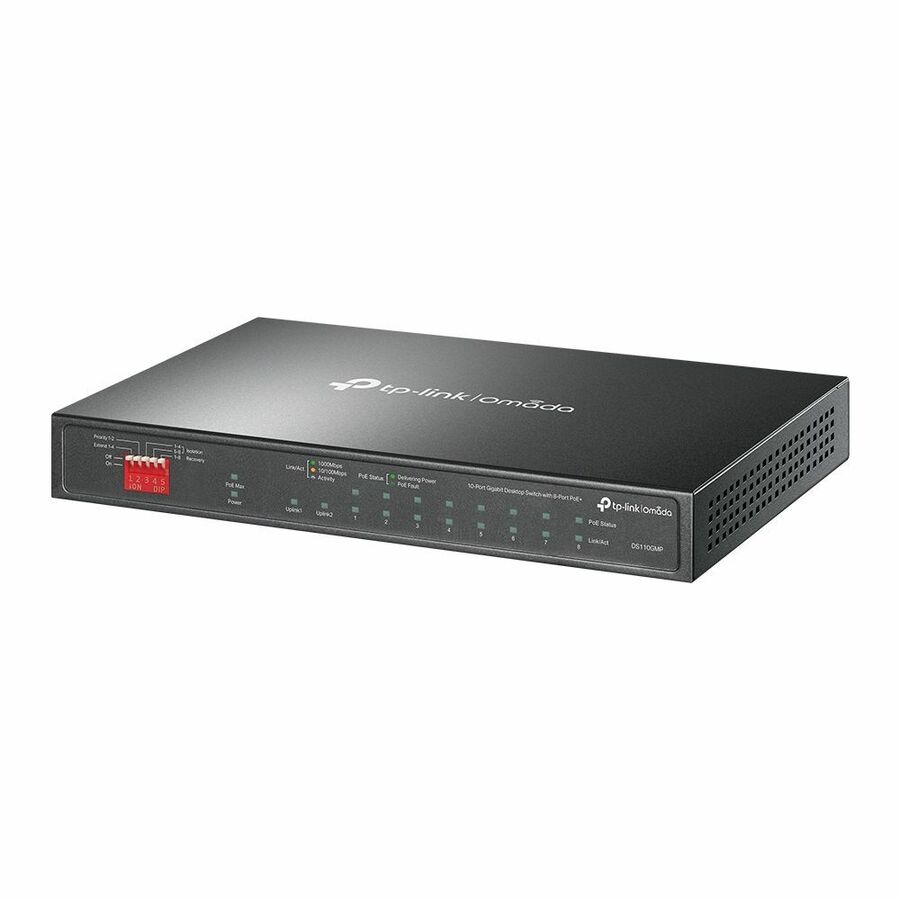

TP-Link Omada 10-Port Gigabit Desktop Switch with 8-Port PoE+ - 9 Ports - Gigabit Ethernet, Fast Ethernet - 10/100/1000Base-T, 1000Base-X - 1 SFP Slots - 141.40 W Power Consumption - 123 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable
