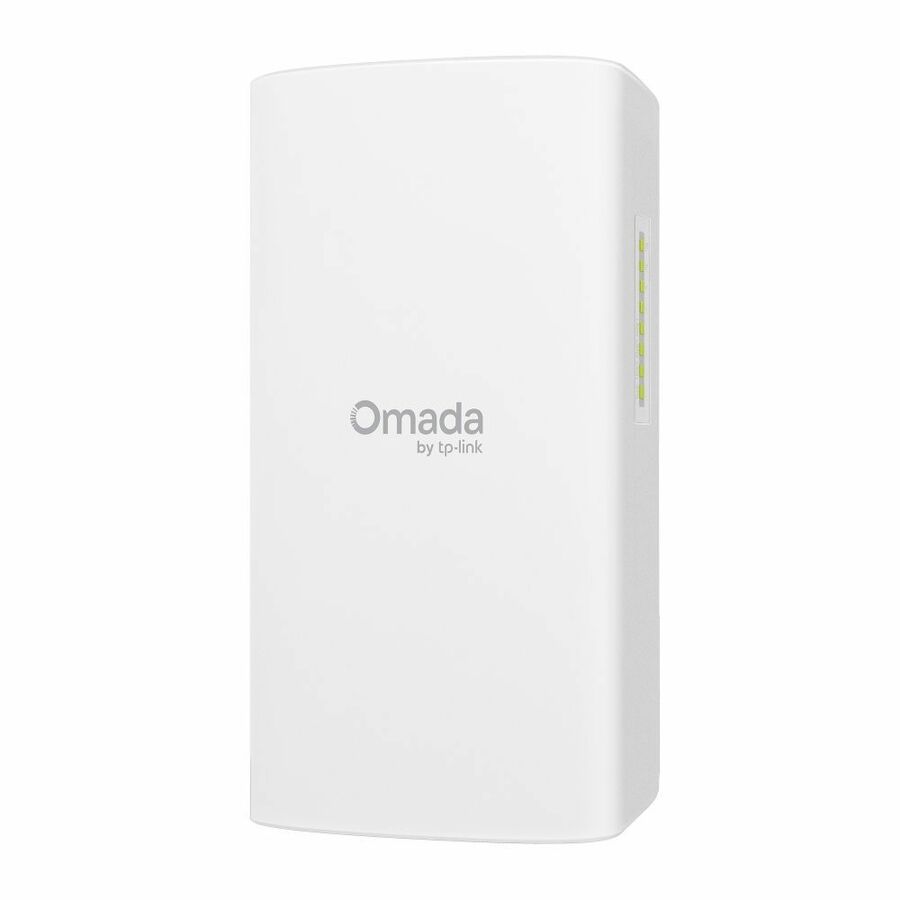

Flexible Bridge Point for 3.1 mi (5 km) Transmission
Delivers speeds up to 867 Mbps on 5 GHz with integrated 17 dBi high-gain dual-polarized directional antennas for long-range, uninterrupted wireless transmission.
Flex Bridge Multipoint Deployment Options | Flex Bridges Working Together
Supports point-to-point and multipoint bridging between Flex Bridges, optimized at around 8 connected nodes.
Flex Bridges Connected to a Sector Bridge
When paired with a Sector Bridge hub, supports multipoint deployments of up to 32 Flex Bridges.
Powering Surveillance with 2x PoE Out Ports
Features 3 gigabit ports, including 1 PoE In to power the bridge and 2 PoE Out ports delivering up to 10W on a single port or 5W per port when both are used, easily powering IP cameras and simplifying surveillance network expansion.
Role & DIP Switches for Simple Pairing
Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
Robust Outdoor Design for Long-Lasting Reliability
- IP66 Weatherproof
- 6 kV Lightning Protection
- -40 °C to 70 °C (-40 °F to 158 °F) Working Range
Versatile Power Management: Integrated Edge Power for Any Scenario
Supports 802.3at/af, Passive PoE (54V passive PoE adapter included), and 12V DC, allowing flexible power supply via a PoE switch, the included passive PoE adapter, or solar power.
Perfect for Surveillance and More
- Business Park
- Resort
- Port
- Factory
- Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub.
- Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations.
- Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion.
- Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity.
- Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments.
- Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments.
- Flexible Power Supply Options: Supports 802.3at/af, Passive PoE
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Power & Battery | |
|---|---|
| Power Consumption | 12 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 5 |
| MIMO Technology | Yes |
| MIMO Type | Multi User MIMO |
| Total Number of Antennas | 3 |
| Number of Internal Antennas | 3 |
| Wireless Transmission Speed | 867 Mbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | NTP |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 3 |
| PoE (RJ-45) Port | Yes |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ball Joint |
| Antenna Form Factor | Internal |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor/Outdoor |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP66 |
