- 2� 2.5Gbps WAN/LAN RJ45 Ports
- 10� Gigabit WAN/LAN Ports (2� SFP, 8� RJ45)
- Load Balancing on up to 11 WAN Ports
- Quad-Core 2.0 GHz CPU
- Centralized Cloud Management
- SSL/ IPSec / GRE/ WireGuard / PPTP / L2TP VPN & OpenVPN
- Multi-Net DHCP
- DPI & IPS/IDS

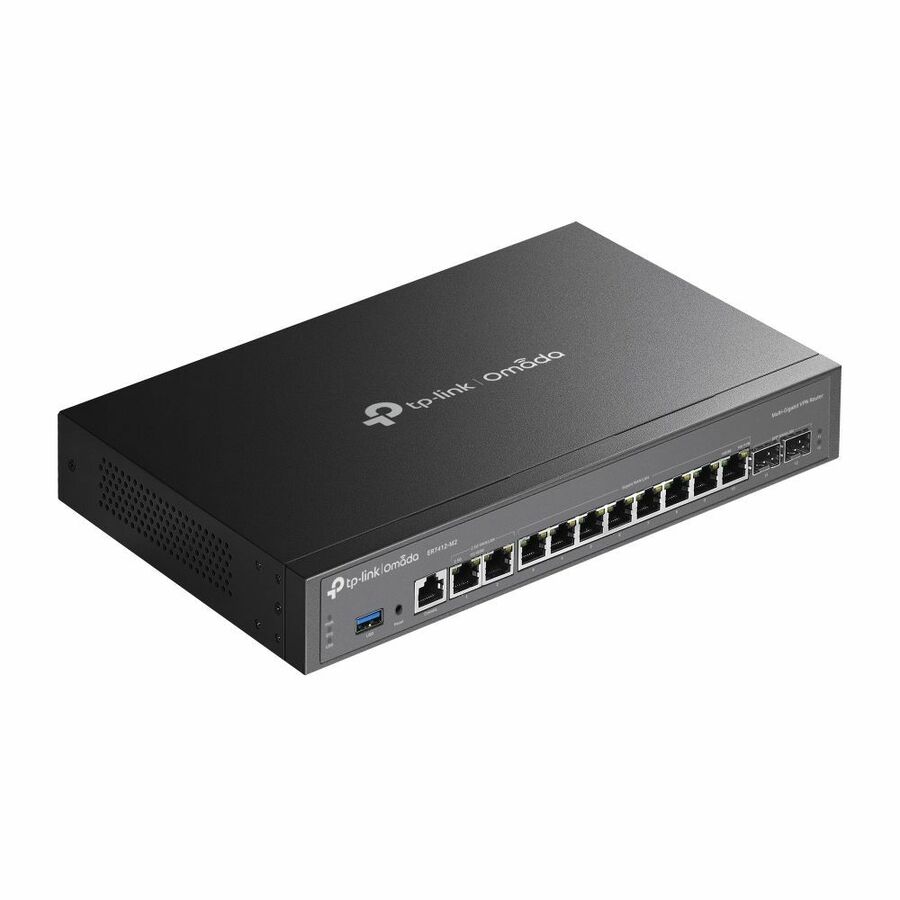

Engineered for Dense Environments, Powered by Dual 2.5 Gbps Ports and Quad-Core 2.0 GHz CPU
Easily build a multi-gigabit network for schools, hotels, and offices.
Up to 11 WAN Ports & One USB WAN for Mobile Broadband
- 2� 2.5Gbps WAN/LAN RJ45 ports
- 8� Gigabit WAN/LAN RJ45 ports
- 2� Gigabit WAN/LAN SFP ports
- 1� USB 3.0 port(Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN Ports Distributes data streams according to the bandwidth proportion of every WAN port to raise the utilization rate of multi-line broad band.
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
High-Security and High-Performance VPN
SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN easily build secure VPN tunnels for secure Internet browsing, communication between different branches, or enabling remote work or study from home.
Abundant Security Features | DPI (Deep Packet Inspection)
Easily specify internet access rights and strategies via DPI (Deep Packet Inspection), IP/MAC/URL Filtering and Access Control List (ACL).
IDS/IPS
The integrated IDS/IPS engine bolsters threat detection and defense. It is constantly protected via the built-in attack prevention signature database with 7000+ signature rules that can be updated regularly.
DoS/DDoS Protection
Automatically detects and blocks Denial of Service (DoS) attacks such as TCP/UDP/ICMP Flooding, Ping of Death, and other related threats.
- Offers high performance and reliable connectivity to the Internet and other offices
- With 10Base-T technology, get up to 10 mbps data transfer rate over twisted pair cable
- Management capability provides control over the router's setup and configuration
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Desktop installation - Ideal for deployments outside the wiring closet
| Brand | |
|---|---|
| Brand | TP-LINK Technologies Co. |
| Memory / RAM | |
|---|---|
| Standard Memory | 1 GB |
| Power & Battery | |
|---|---|
| Power Source | Power Supply |
| Power Consumption | 18.50 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 2.5GBase-T |
| USB Ports | |
|---|---|
| USB Standard | USB 3.0 |
| Ethernet Port | |
|---|---|
| Number of WAN Ports | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| General Features | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Total Number of Ports | 10 |
