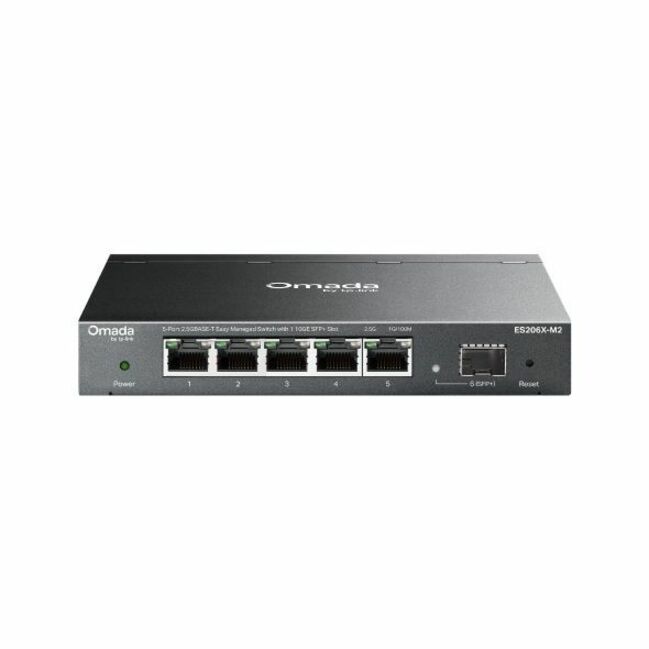

Omada 5-Port 2.5GBASE-T Easy Managed Switch with 1 10GE SFP+ Slot

44.99 44.99
44.99

44.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Manageable
  • Switch Management Type
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Number of SFP+ Slots
  • Port/Expansion Slot Details
  • Form Factor
  • Product Material
  • Maximum Data Transfer Rate
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • Media Type Supported
  • Input Voltage
  • MTBF
  • Environmental Compliance
  • Certifications & Standards
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Omada 5-Port 2.5G Easy Managed Switch with 1� 10G SFP+ Slot

5 � 2.5 Gbps RJ45 Ports

1 � 10 Gbps SFP+ Port

Fanless Design for Silent Operation

Easy Centralized Management

Omada App

Traffic Separation

Traffic Prioritization

Automatic Loop Prevention

Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices

2.5G WiFi7/6 APs

2.5G Gaming Computer

2.5G NAS/Server

4K Video

Cost-Performance Solution | Looking for free, worry-free cloud management for life?

Omada Central Essentials

Lifetime Free Cloud without Additional Fees

On-site work eating up time and resources?

Reduce Maintenance Costs

Manage and Maintain from Anywhere

Manage and Maintain from Anywhere for Free and Easy Cloud Management

Omada Central Essentials provides free and easy-to-use cloud centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

  • 5� 2.5 Gbps RJ45 Ports
  • 1� 10 Gbps SFP+ Slot
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design
Brand
Brand TP-LINK Technologies Co.
Power & Battery
Input Voltage 12 V DC
Power Source Power Adapter
Power Consumption 5.63 W
Networking & Connectivity
Network Technology 10GBase-LRM
Switch Management Type Easy Managed
Layer Supported 2
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 5
Size / Dimensions
Form Factor Wall Mountable
General Features
Manageable Yes
Maximum Data Transfer Rate 1.25 GB/s
MTBF 1223587 Hour
Manufacturer TP-LINK Technologies Co., Ltd
Expansion Slots
Total Number of Expansion Slots 1
Expansion Slot Type SFP+
Number of SFP+ Slots 1
Misc Ports
Port/Expansion Slot Details 1 x 10 Gigabit Ethernet Expansion Slot
Printer/Scanner/Fax Specs
Media Type Supported Optical Fiber
