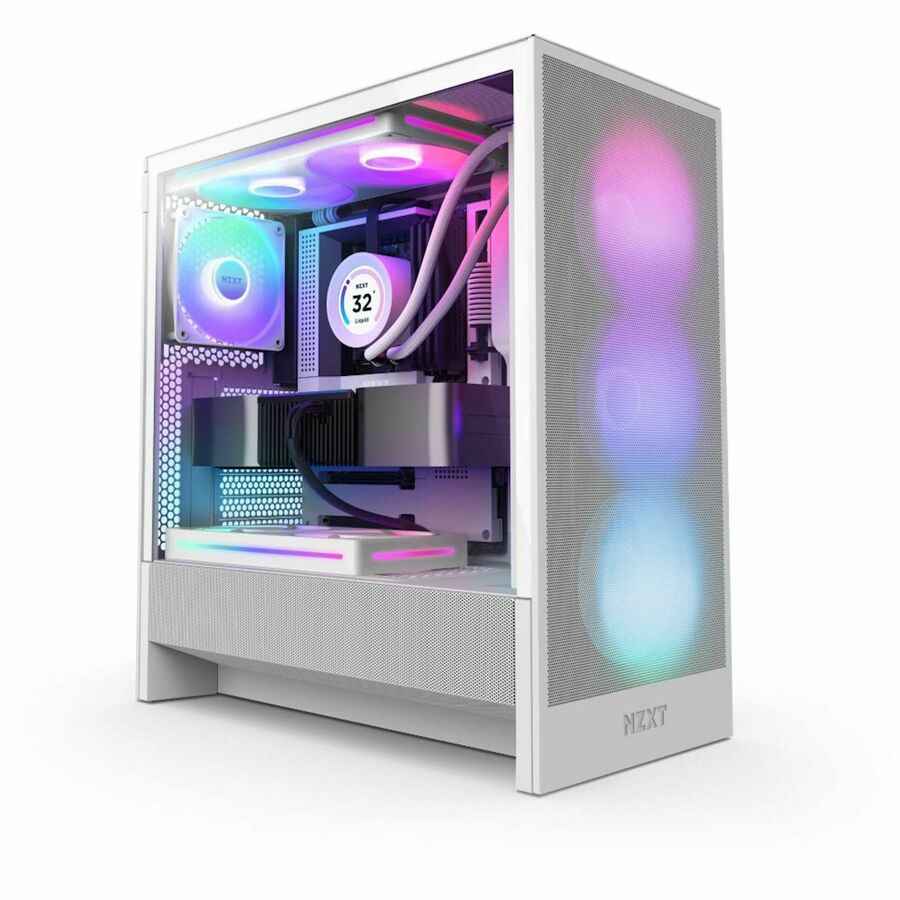

H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- The high air flow mid-tower casing to protect the hardware components
| Brand | |
|---|---|
| Brand | NZXT Corporation |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 16.14" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 7.87" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Front USB | Yes |
| USB Port Details | 1 x USB 3.2 Type-C |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mid-tower |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan/Liquid Cooler |
| Installed Fan Size | 5.51" |
| Installed Fan Size Details | 2 x 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.69" |
| Manufacturer | NZXT Corporation |
| Number of Fans Supported | 4 |
| Number of Fans Installed | 3 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 7 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 3.5" Bays | 1 |
| Miscellaneous | |
|---|---|
| Product Name | H5 Flow RGB |
