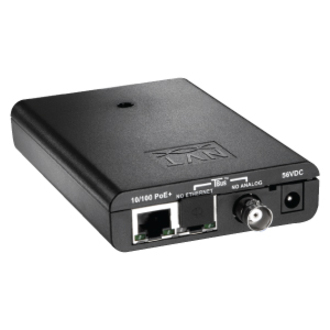

The NVT Phybridge Model NV-ET1801 TBus PoE+ Transmitter is a compact bus-architected media converter that delivers 10/100 BaseT Ethernet and PoE+ power via coax, UTP or 2-Wire or Shielded Twisted Pair cable. These transmitters are extremely simple to use, with no IP or MAC addressing required. Status LEDs indicate power and link connectivity/quality/activity for RJ45 and TBus ports.The NV-ET1801 TBus Ethernet Transmitter is backed by NVT Phybridge's award winning customer support, Limited Lifetime Warranty and advance replacement.
- Use with the NV-ER1804 (4-Port)
- Powers PoE, PoE+, or High Power PoE cameras (or other PoE devices), up to 50 watts
- Advanced 128-bit AES encrypted transmission and PoE+ power technology
- Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast etc.)
| Brand | |
|---|---|
| Brand | Phybridge |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Barrel |
| Power Source | DC |
| Power Consumption | 3 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 10/100Base-T |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| General Features | |
|---|---|
| Maximum Distance Supported | 2.44 km |
| Manufacturer | Phybridge, Inc |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Coaxial |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
