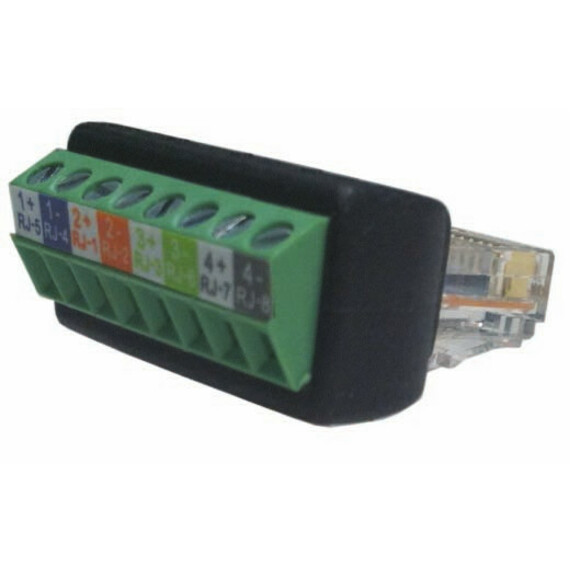

The NVT Model NV-RJ45A is an adaptor used by NVT's Analog, PVD, and IP transceivers to break out RJ5 conductors to screw terminals.
Eight screw-terminal connections each support wire diameters as large as 16 AWG .051" (1.3mm). Screws should be torqued to 2 in-lbs (0.2 Nm).
It ships two in a package, with colored labels to assist with EIA/TIA 568B wiring asignments.
It is backed by NVT's award winning customer support and limited lifetime warranty.
Product weight: 0.025 lbs (.011 Kg)
- Network adapter enables quick and easy connections for efficient networking
- Versatile and durable RJ-45/Terminal Block adapter supports multiple connectivity needs
- Screw Lock feature ensures maximum efficiency and convenience for smooth operation
| Brand | |
|---|---|
| Brand | Phybridge |
| General Features | |
|---|---|
| Manufacturer | Phybridge, Inc |
| Cables | |
|---|---|
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | Terminal Block - Female |
| Miscellaneous | |
|---|---|
| Adapter Type | RJ-45/Terminal Block |
