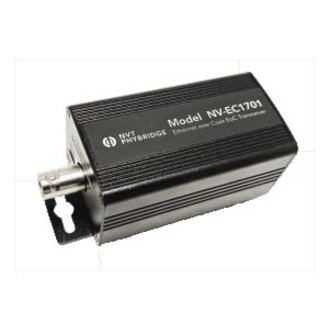

NV-EC1701 is a compact media converter that allows 10/100 BaseT PoE+ to be transmitted using coax cable. These devices are often used in legacy installations where existing cable is re-deployed as part of an upgrade to IP cameras.
Single Camera EoC Transmission
- 2 NV-EC1701 Transceivers
- 1 NV-PS55-60W Power Supply with IEC line cord
- Available in 1-4 Camera System Kits
- Limited lifetime waranty
- 128-bit AES encrypted transmission
- Transparently supports all networking protocols (UDP, TCP/IP, HTTP, Multicast, etc.)
- Up to four transceivers can be rack mounted on an NV-RMEC16 or NV-RMEC16-90 Rack Mount Tray Kit, connecting up to 16 cameras
- One NV-EC1701 transceiver at the network-end can support multiple remote transceivers/IP cameras using the NV-EC4BNC adaptor/splitter.
- 55 VDC is distributed over the coax to all connected equipment.
- 100 BaseT transmission; Network speeds up to 93 Mbps*; Up to 8,000ft (2,500m)
| Brand | |
|---|---|
| Brand | Network Video Technologies |
| General Features | |
|---|---|
| Manufacturer | Network Video Technologies |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Network Video Technologies |
| MPN | NV-EC1701-KIT1 |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
