High-Performance Display Solution

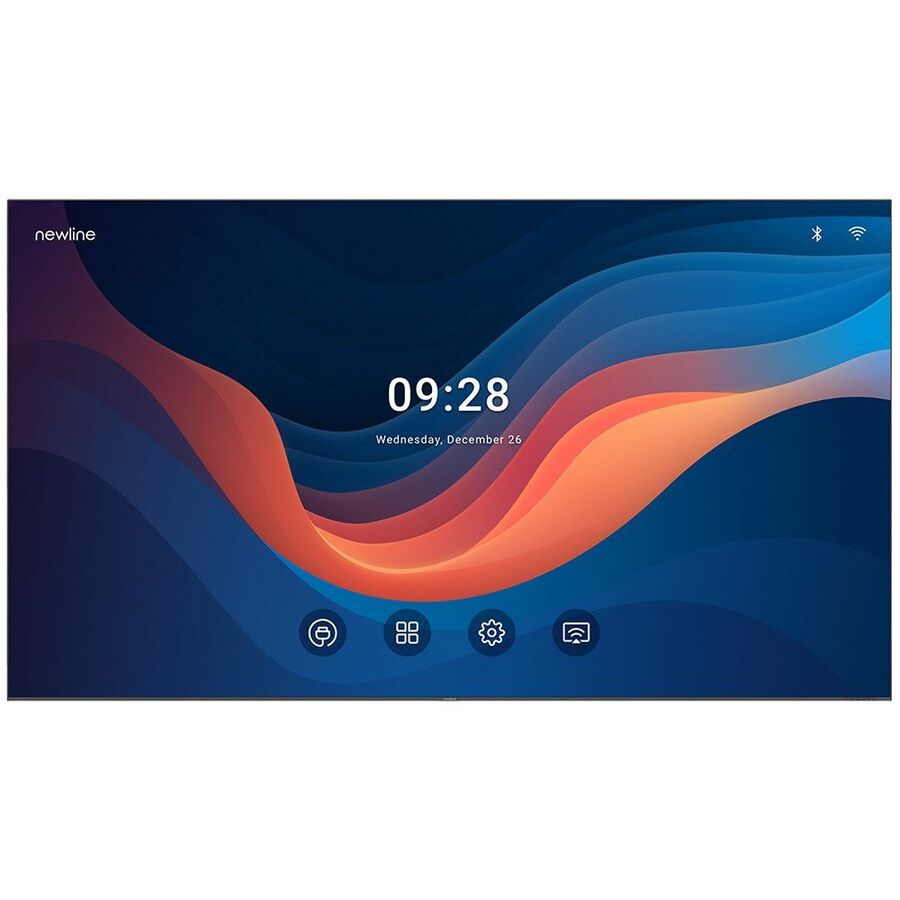

The newly upgraded DV One+ offers enhanced performance and additional features to meet diverse needs. The DV One+ comes in four sizes, 135", 163", 189" and 216", providing more flexibility for different spaces, from compact areas to larger venues. The DV One+ introduces several new features that elevate performance and functionality. RS-232 and IP control, along with Wake-on-LAN and Wake-on-WiFi, enables seamless remote management and control through Newline Display Management (NDM). Maintenance is simplified with easy access to components, while the upgraded Android 13 operating system and new chipset enhance performance and responsiveness. Additionally, the DV One+ features a new intuitive calibration tool, making adjustments quicker and easier than ever before. The design has been streamlined with a sleek design and hidden-away ports for a cleaner, more polished presentation, and allows for cleaner integration with existing audio systems or separate speaker setups. This refined design, combined with its reliable performance, makes the DV One+ an ideal choice for spaces like lecture halls, cafeterias, media centers, and gymnasiums, where tailored display solutions are key.
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Experience luminescent visual images with LCD display
- Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- Direct View LED backlight technology offers visual brilliance with maximum efficiency
| Brand | |
|---|---|
| Brand | Newline Interactive |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Memory / RAM | |
|---|---|
| Standard Memory | 4 GB |
| Screen / Display | |
|---|---|
| Dynamic Contrast Ratio | 000:1 , 6 |
| Screen Size Class | 13.58 ft |
| Viewable Screen Size | 13.58 ft |
| Backlight Technology | Direct View LED |
| Video Wall Compatible | Yes |
| Display Resolution | 1920 x 1080 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Brightness | 550 Nit |
| Color Gamut | 110% NTSC |
| Pixel Pitch | 73.8 mil |
| Color Depth | 8-bit |
| Power & Battery | |
|---|---|
| Average Power Consumption | 690 W |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 1 |
| Speaker Power | 5 W |
| General Features | |
|---|---|
| Chipset Manufacturer | Amlogic |
| Chipset Model | A311D2 |
| Manufacturer | Newline Interactive |
| Maximum LED Life | 11.4 Year |
| Misc Ports | |
|---|---|
| Serial | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 1080p |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 90% |
| Minimum Operating Humidity | 10% |
