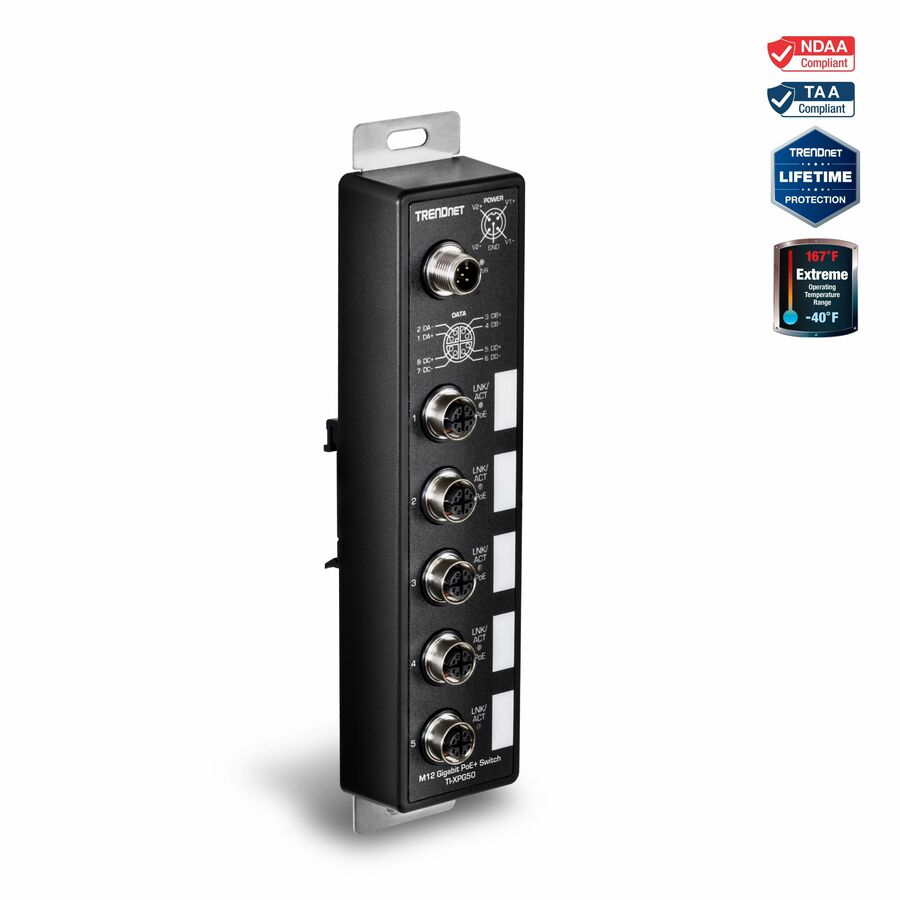

TRENDnet 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch

$ 524.99 $ 524.99
$ 524.99

$ 524.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Network Technology
  • Features
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Port/Expansion Slot Details
  • Form Factor
  • Product Color
  • Color Family
  • Product Material
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • MTBF
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF
  • DEVICE INTERFACE: 4 x M12 (X-code) Gigabit PoE+ ports; 1 x M12 (X-code) Gigabit port; 1 x M12 (A-code) power port; LED
    indicators; Wall Mount; Din Rail Mount; Grounding Point
  • POWER SUPPLY & CABLES SOLD SEPARATELY: M12 cables sold separately (models: TI-CD02 / TI-CD05 / TI-CP02); Power
    supply sold separately (models: TI-S15052)
  • POE POWER BUDGET: Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with total power budget of
    120W@56V DC
  • SWITCHING CAPACITY: The 5 port TI-XPG50 has a 10Gbps switching capacity
  • EN50155 COMPLIANT: This M12 switch supports an input voltage range from 48 - 56V DC with M12 interfaces for moving bus,
    train, and other rolling stock applications.
  • INDUSTRIAL DESIGN: Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand a high degree of
    vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.
  • DIN-RAIL & WALL MOUNT KIT: This gigabit PoE+ switch comes with an integrated DIN-Rail mount and wall mounting hardware.
  • SHOCK AND VIBRATION RESISTANT: Designed to withstand a high degree of vibration and shock. Rated for shock (EN
    60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)
  • TRENDnet LIFETIME PROTECTION: The TI-XPG50 M12 Switch comes with Lifetime TRENDnet Manufacturer Protection.

    TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.

    EN50155 Compliant

    This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.

    Industrial Design

    Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).

    Power over Ethernet (PoE+)

    Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.

    More from the Manufacturer

    • 4 x M12 (X-code) Gigabit PoE+ ports
    • 1 x M12 (X-code) Gigabit port
    • 1 x M12 (A-code) power port
    • PoE power budget: 120W@56V DC
    • EN50155 compliant for rolling stock and railway applications
    • Hardened IP67 outdoor rated metal housing
    • 10Gbps switching capacity
    • Operating temperature range of -40° - 75° C (-40° - 167° F)
    • Includes DIN-Rail and wall mount kits
    • M12 cables sold separately (models: TI-CD02, TI-CD05, TI-CP02)
    Brand
    Brand TRENDnet
    Power & Battery
    PoE Budget 120 W
    Input Voltage 56 V DC
    Power Source Power Supply
    Power Consumption 5 W
    Networking & Connectivity
    Network Technology 10/100/1000Base-T
    Layer Supported 2
    Ethernet Port
    Network (RJ-45) Yes
    Total Number of Network Ports 5
    PoE (RJ-45) Port Yes
    Size / Dimensions
    Form Factor DIN Rail Mountable
    General Features
    MTBF 546613 Hour
    Manufacturer TRENDnet
    Misc Ports
    Port/Expansion Slot Details 1 x Gigabit Ethernet Network
    Printer/Scanner/Fax Specs
    Media Type Supported Twisted Pair
    Miscellaneous
    Product Name 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch
    TRENDnet 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch - 5 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 5 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - Black - Wall Mountable, DIN Rail Mountable - Lifetime Limited Warranty
