The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210 Series uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.
- Effectively reduces downtime with improved network performance
- Features 24 networking ports to establish large network
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The desktop installation makes it ideal for deployments outside the wiring closet
- Management capability allows maximum efficiency and with unrestricted control
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- 128 MB memory makes you productive with its smooth performance
| Brand | |
|---|---|
| Brand | D-Link Systems |
| Memory / RAM | |
|---|---|
| Standard Memory | 128 MB |
| Memory Technology | DDR2 SDRAM |
| Storage | |
|---|---|
| Flash Memory | 16 MB |
| Power & Battery | |
|---|---|
| Redundant Power Supply Suppor | No |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Token Ring Port | No |
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 24 |
| LRE Port | No |
| Total Number of Network Ports | 24 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Appearance | |
|---|---|
| Modular | No |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | D-Link Systems, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 4 |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
|---|---|

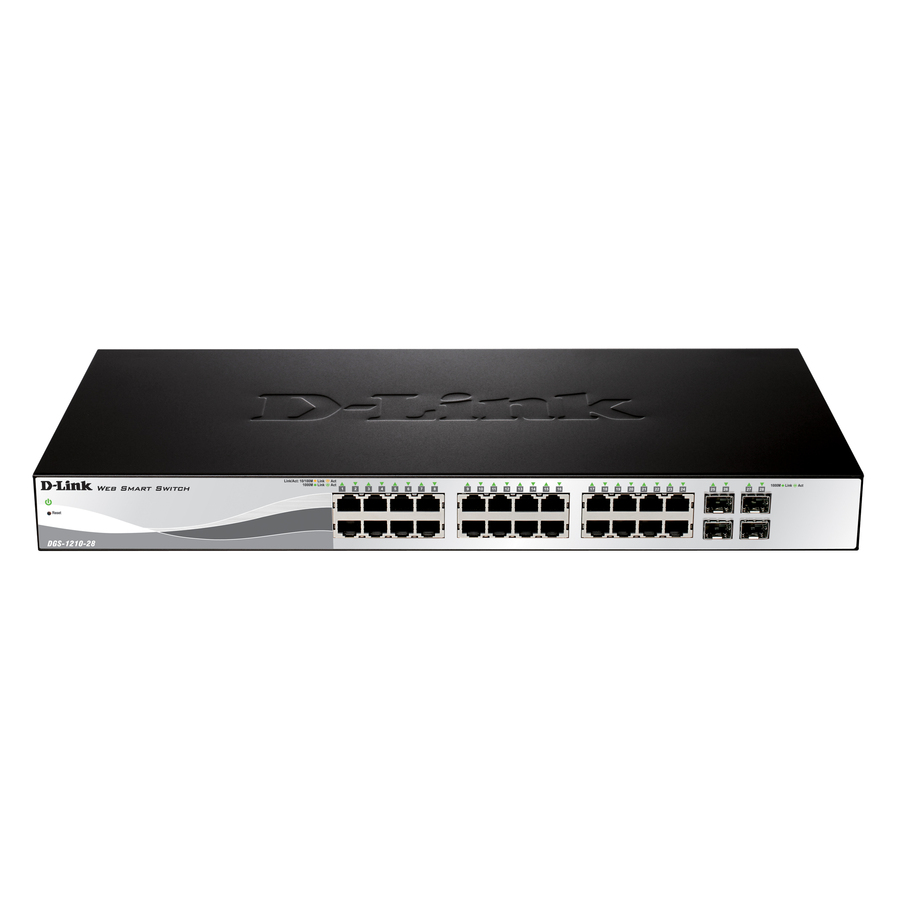

| Product Name | WebSmart DGS-1210-28 Ethernet Switch |
| Bypass | No |
