Industrial Grade, LTE-Advanced Performance, Low Power

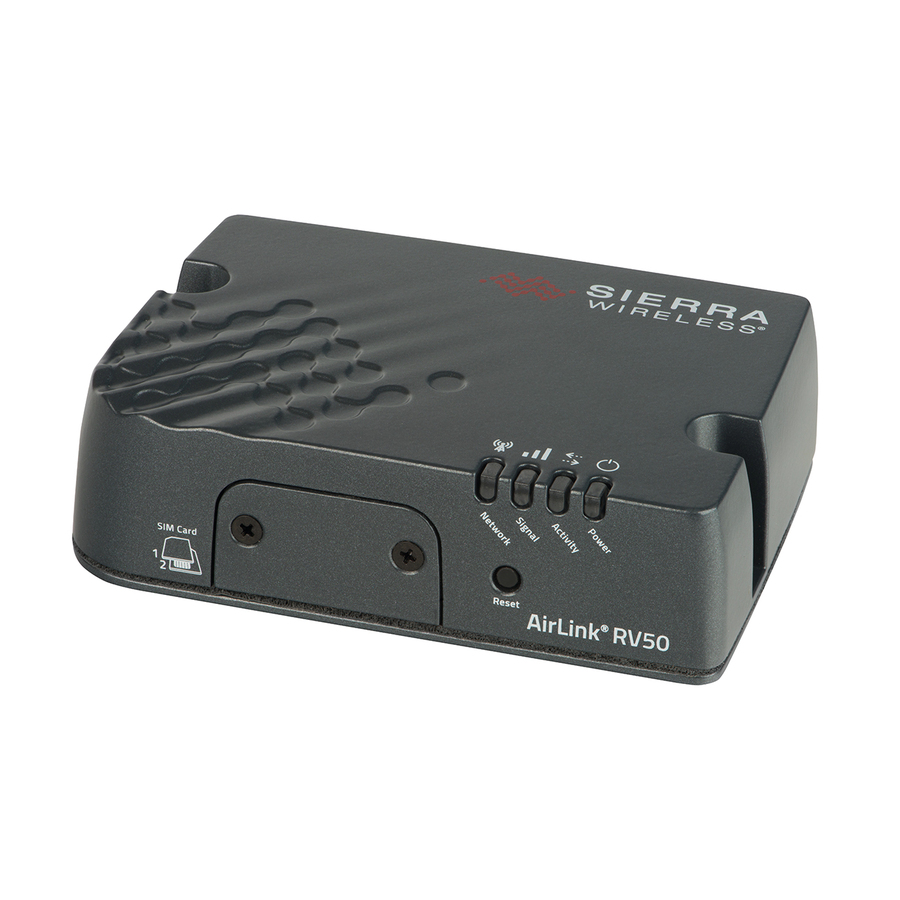

The AirLink RV50 is the industry's lowest power and most rugged LTE gateway. Simple to install and easy to manage, this industrial-grade gateway is designed to connect critical assets and infrastructure. Ideal for energy, utilities and smart-city applications, the RV50 provides real-time remote connectivity for SCADA, distribution management systems and metering.
With the lowest power consumption available on the market, the RV50 dramatically reduces infrastructure costs when running on battery or solar power. The RV50X variant supports an extensive range of LTE bands worldwide, and its LTE-Advanced capabilities deliver up to 300 Mbps downlink speeds. For deployments in areas with limited LTE coverage, the RV50 provides fallback to 2G and 3G networks. Furthermore, the RV50 provides programmability to enable edge computing applications, using the ALEOS Application Framework (AAF).
RUGGED DESIGN FOR DEMANDING ENVIRONMENTS
The RV50 is designed to withstand harsh industrial conditions, and is capable of surviving 5 V brownouts and spikes from -600 VDC to 200 VDC.
Certified as Class I Div 2, it is ideal for hazardous environments. The die cast aluminum housing is sealed to meet IP64 for resistance to dust and water ingress.
The RV50 is tested to meet and exceed the MIL-STD-810G specification for shock, vibration, temperature and humidity. The built-in power supply protection make it suitable for harsh electrical environments such as compressors, generators, and excavators.
ULTRA-LOW POWER CONSUMPTION
The RV50 offers best-in-class power consumption combined with LTE performance, and is optimized for battery and solar applications. It is the industry's only LTE gateway with 2G power consumption, operating at 900 mW in idle mode. For 2G and 3G deployments migrating to LTE, the RV50 will work with existing power infrastructure, eliminating the need to invest in replacement solar panels or batteries. Standby Mode provides additional protection for batteries by dropping power consumption to 53 mW, and can be triggered by timers, low voltage detection or I/O.
SIMPLIFIED DEPLOYMENT
The RV50 automatically configures the radio based on the SIM, which provides versatility and simplicity when changing operator networks.
Ideal for global deployments, the RV50X provides worldwide LTE coverage with just two product variants; one for North America and EMEA, and one for Asia-Pacific.
BEST-IN-CLASS REMOTE MANAGEMENT
Network Management solutions for the RV50 allow over-the-air registration, configuration and software updates, and can be deployed either as a cloud- based service, or as a licensed software platform in the enterprise data center. Both options provide a centralized and remote view of an entire fleet and enable simplified management, control and monitoring of connected RV50s and critical infrastructure.
AirLink Management Service (ALMS) is a secure, centralized cloud-based service that remotely monitors and manages signal strength, network technology and location. ALMS provides dashboards with up-to-date views of an entire deployment, and custom alerts to monitor and report critical events, to increase efficiency and prevent downtime.
The AirLink RV50 is the industry's lowest power and most rugged LTE gateway. Simple to install and easy to manage, this industrial-grade gateway is designed to connect critical assets and infrastructure. Ideal for energy, utilities and smart-city applications, the RV50 provides real-time remote connectivity for SCADA, distribution management systems and metering.
With the lowest power consumption available on the market, the RV50 dramatically reduces infrastructure costs when running on battery or solar power. The RV50X variant supports an extensive range of LTE bands worldwide, and its LTE-Advanced capabilities deliver up to 300 Mbps downlink speeds. For deployments in areas with limited LTE coverage, the RV50 provides fallback to 2G and 3G networks. Furthermore, the RV50 provides programmability to enable edge computing applications, using the ALEOS Application Framework (AAF).
RUGGED DESIGN FOR DEMANDING ENVIRONMENTS
The RV50 is designed to withstand harsh industrial conditions, and is capable of surviving 5 V brownouts and spikes from -600 VDC to 200 VDC.
Certified as Class I Div 2, it is ideal for hazardous environments. The die cast aluminum housing is sealed to meet IP64 for resistance to dust and water ingress.
The RV50 is tested to meet and exceed the MIL-STD-810G specification for shock, vibration, temperature and humidity. The built-in power supply protection make it suitable for harsh electrical environments such as compressors, generators, and excavators.
ULTRA-LOW POWER CONSUMPTION
The RV50 offers best-in-class power consumption combined with LTE performance, and is optimized for battery and solar applications. It is the industry's only LTE gateway with 2G power consumption, operating at 900 mW in idle mode. For 2G and 3G deployments migrating to LTE, the RV50 will work with existing power infrastructure, eliminating the need to invest in replacement solar panels or batteries. Standby Mode provides additional protection for batteries by dropping power consumption to 53 mW, and can be triggered by timers, low voltage detection or I/O.
SIMPLIFIED DEPLOYMENT
The RV50 automatically configures the radio based on the SIM, which provides versatility and simplicity when changing operator networks.
Ideal for global deployments, the RV50X provides worldwide LTE coverage with just two product variants; one for North America and EMEA, and one for Asia-Pacific.
BEST-IN-CLASS REMOTE MANAGEMENT
Network Management solutions for the RV50 allow over-the-air registration, configuration and software updates, and can be deployed either as a cloud- based service, or as a licensed software platform in the enterprise data center. Both options provide a centralized and remote view of an entire fleet and enable simplified management, control and monitoring of connected RV50s and critical infrastructure.
AirLink Management Service (ALMS) is a secure, centralized cloud-based service that remotely monitors and manages signal strength, network technology and location. ALMS provides dashboards with up-to-date views of an entire deployment, and custom alerts to monitor and report critical events, to increase efficiency and prevent downtime.
- Supports up to 5 VPN tunnels for secure cellular communications
- (CANADA/EMEA/APAC)
- Meets industrial-grade certifications including Class 1 Div 2, MIL-STD-810G, IP64 ingress protection
- Dual-SIM functionality to enable automatic failover between SIMs
- Remote configuration, software update, and monitoring with cloud-based AirLink Management Service (ALMS) or on-premises with AirLink Mobility Manager (AMM)
- Provides network connectivity via Ethernet, Serial and USB
- Two product variants cover the globe
- Fully automatic network operator switching: just insert the SIM
- State-of-the-art LTE coverage spanning 21 LTE frequency bands worldwide
- LTE performance at 2G power consumption (less than 1W in idle mode)
| Brand | |
|---|---|
| Brand | Sierra Wireless |
| Networking & Connectivity | |
|---|---|
| Cellular Data Connectivity Technology | HSPA , HSPA+ , LTE |
| Broadband Transmission Techno | Cellular |
| Cellular Data Connectivity Te | HSPA |
| Cellular Generation | 4G |
| Cellular Network Supported | WCDMA 2100 |
| ISM Band | No |
| UNII Band | No |
| VPN Supported | Yes |
| Broadband Transmission Technology | Cellular |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Number of Network (RJ-45) Ports | 1 |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Screw Mount |
| General Features | |
|---|---|
| Manufacturer | Sierra Wireless |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | AirLink RV50X Modem/Wireless Router |
Sierra Wireless AirLink RV50X Cellular Modem/Wireless Router - 4G - LTE 700, LTE 800, LTE 850, LTE 900, LTE 1800, LTE 1900, LTE 2100, LTE 2600, WCDMA 850, WCDMA 900, WCDMA 1800, ... - LTE, HSPA+, HSPA - 1 x Network Port - USB - Gigabit Ethernet - VPN Supported - Screw Mount
