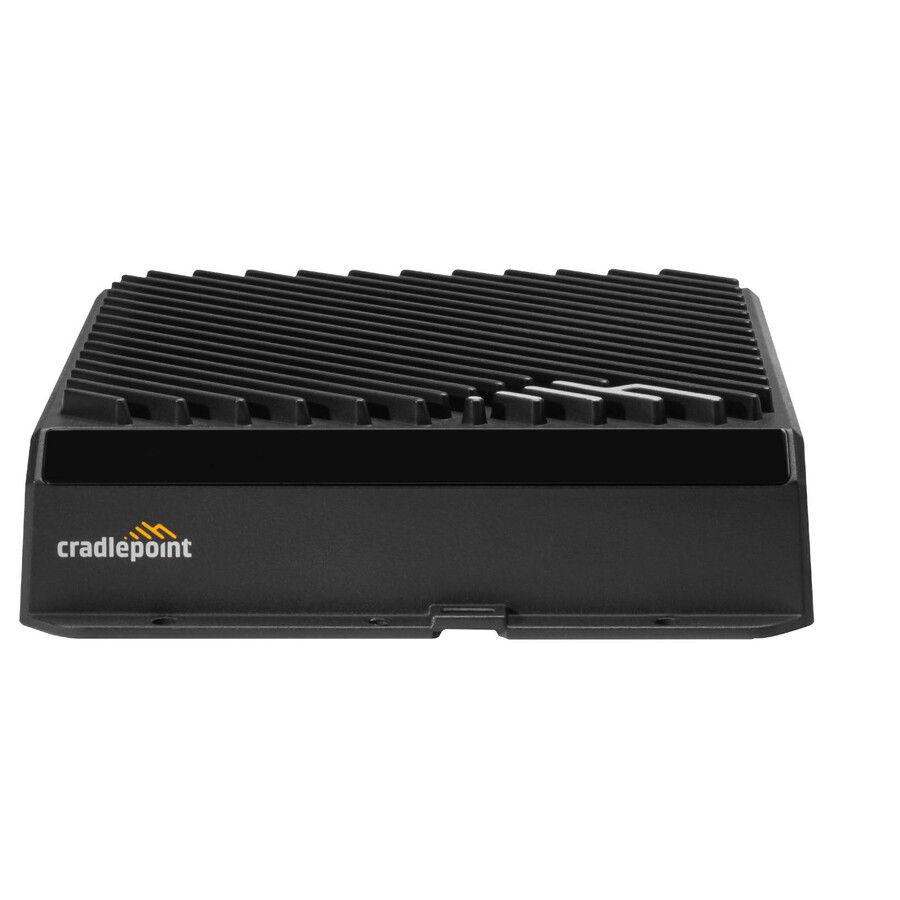

Cradlepoint's NetCloud Mobile Performance Service with the R1900 Series router is a ruggedized 5G networking platform, designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, location, and IoT services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.
Notable Features
- Deploy the ultimate 5G NR / Cat 20 LTE mobile networking solution with industry-leading features
- Add a second cellular modem with the optional RX30 managed accessory for simultaneous dual-carrier connectivity
- Take advantage of Wi-Fi 6 for the best possible connections
- Enable unified edge security with application aware multi-zone firewalls, IDS/IPS, and internet security
- Define policies through centralized cloud-based management for easy deployment at scale
- Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning
- Create a cellular coverage map for complete visibility into your area's 5G and LTE coverage
- Extend your deployment with additional PoE ports, GPIOs, NetCloud SDK and API, Bluetooth, and container support for customizable solutions
For organizations that depend on field forces and mobile networks, the Cradlepoint R1900 mobile router with the NetCloud Mobile Performance Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. When coupled with the Advanced Performance Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps. The R1900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.
5G Embedded High-Performance Solution
The R1900 mobile router includes an embedded 5G modem that can automatically switch to Cat 20 LTE if the vehicle moves outside of 5G coverage. In addition, the R1900 is designed to accept the RX30 managed accessories which provide either four additional PoE ports or four additional GbE ports and a second modular modem. It also has the ability to act as a controller for a separate Cradlepoint 5G Wideband Adapter. These two capabilities, along with the continually improved NetCloud platform, ensure the ability for future expansion and the best investment protection available.
Performance
Stateful Firewall Throughput:
940 Mbps
IPS Throughput:
940 Mbps
Application Aware Services & Analytics:
940 Mbps
IPSec VPN Throughput:
400 Mbps
- Savor simultaneous downloading and seamless streaming
- Gigabit Ethernet port for ultra-fast wired network speeds
- Provides electric power over RJ45 ports along with data to devices on your network, such as IP cameras or network equipment
- Uses ISM Band to connect your computers, wireless printers, game consoles, and other Wi-Fi devices for a smooth network experience
- Access USB-compatible peripherals accross the wireless network via built-in USB port
- Can be placed on the desktop surface for standalone installation
| Brand | |
|---|---|
| Brand | ERICSSON |
| Networking & Connectivity | |
|---|---|
| Cellular Data Connectivity Technology | HSPA+ , LTE Advanced Pro , UMTS |
| Broadband Transmission Technology | Cellular , Ethernet |
| Total Wireless Transmission S | 221.75 MB/s |
| Broadband Transmission Techno | Ethernet |
| Cellular Data Connectivity Te | HSPA+ |
| Wi-Fi Generation | Wi-Fi 6 |
| Cellular Generation | 5G |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.40 GHz |
| UNII Band | Yes |
| UNII Maximum Frequency | 5 GHz |
| VPN Supported | Yes |
| Total Wireless Transmission Speed | 221.75 MB/s |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 4 |
| Number of Network (RJ-45) Ports | 4 |
| PoE (RJ-45) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | ERICSSON |
| Telephony | |
|---|---|
| Multi-SIM Supported | Yes |
| Number of SIM Card Supported | 2 |
| SIM Size Supported | Nano |
| Miscellaneous | |
|---|---|
| Product Name | R1900 Modem/Wireless Router |
CradlePoint Wi-Fi 6 IEEE 802.11ax 2 SIM Cellular, Ethernet Modem/Wireless Router - 5G - LTE Advanced Pro, UMTS, HSPA+ - 2.40 GHz ISM Band - 5 GHz UNII Band - 221.75 MB/s Wireless Speed - 4 x Network Port - USB - PoE Ports - Gigabit Ethernet - VPN Supported - Desktop
