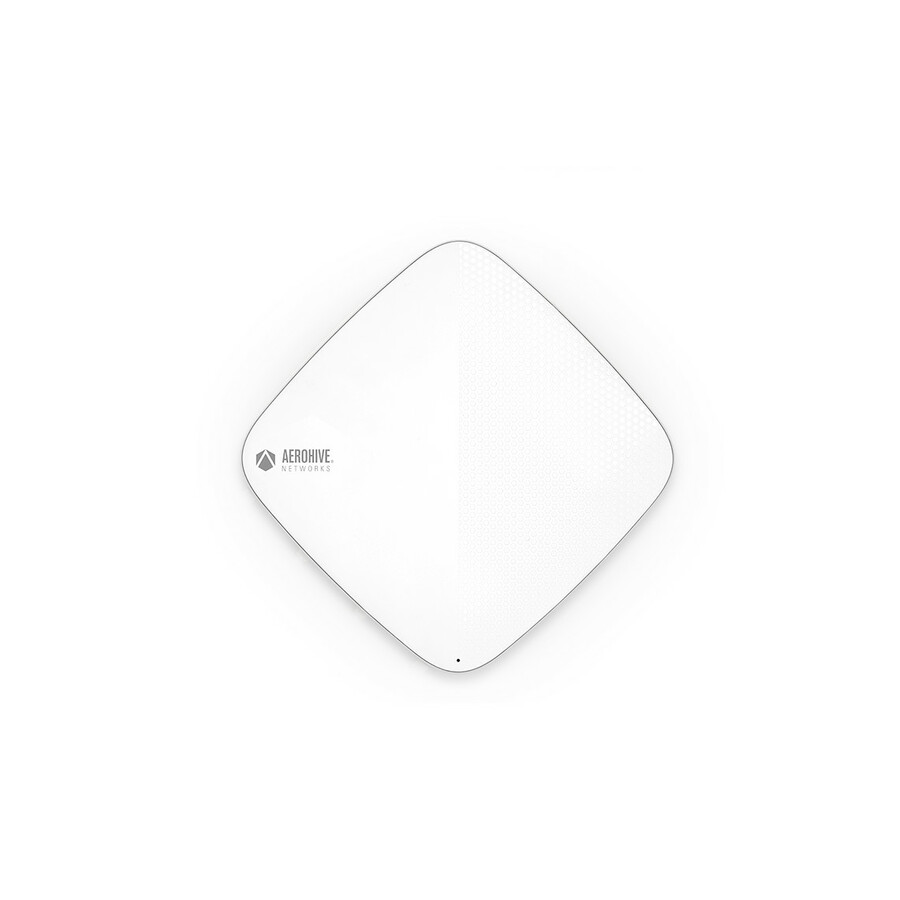

Wi-Fi 6 certified (802.11ax) Indoor Access Point with integrated or external antenna options
Exteme's AP510C/CX is a high performance, enterprise class Wi-Fi 6 access point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.
World SKU is the latest innovation from Extreme Networks to simplify the sales ordering process. The World SKU allows our customers, partners and distributors to order one model for any region instead the age-old problem of country specific SKU. ExtremeCloud IQ enables us to geo-locate an access point and accurately provide it the corresponding set of channel and power specifications that the product can operate under in that country. A single model AP510C/CX is orderable for anywhere in the world.
The AP510C/CX provides high-efficiency 802.11ax aggregate data rates up to 4.8 Gbps currently in both the 5 GHz band and 2.4 GHz band. It also supports a Software Selectable Radio (SSR), providing the flexibility to simultaneously operate both radios in the 5 GHz band.
Despite the exponential growth of users, BYOD devices, IoT, highbandwidth applications and security threats straining the infrastructure, the AP510 combines performance, security services and insightful ML/AI management capabilities to deliver an enterprise class solution at a value price.
Security
The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.
Wi-Fi 6 Technology
The AP510C/CX delivers the highest level of security services, beginning with support for the latest Wi-Fi Alliance WPA3 security certifications. Additionally, supporting a stateful L2-L7 DPI firewall for contextbased access security, Private Pre-Shared Key (PPSK) and much more.
Programable Radios
Extreme launched the industry's first software defined 802.11ax access point supporting not only a dual 5 GHz capability but also three software programmable modes to optimally manage radios to provide the highest level of client performance. The AP510C intelligent monitoring of the software configurable radios enables network administrators to configure network RF topology based on user environment and configure the access points in different modes as required.
- Create a reliable wireless business network with this wireless access point that features a high-speed data transfer rate
- 4.80 Gbit/s wireless transmission speed is ideal for fast data transfer with maximum reliability
- 802.11ax wireless LAN standard lets you connected on the go so your productivity never stops
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- Its management capability provides efficient control over setup and configuration of your network
- Data Encryption feature effectively protects your precious and valuable data from unauthorized access
- External antenna form factor for enhanced performance and feasible placement
- Wall Mountable form factor offers comfortable usage for a longer duration
| Brand | |
|---|---|
| Brand | Extreme Networks |
| Power & Battery | |
|---|---|
| Power Consumption | 20.65 W |
| Networking & Connectivity | |
|---|---|
| Bluetooth Standard | Bluetooth 4.2 |
| Total Number of Antennas | 4 |
| Number of External Antennas | 4 |
| Wireless Transmission Speed | 4.80 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | T-bar Mount |
| Antenna Form Factor | External |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA3 |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | Extreme Networks, Inc |
| Misc Ports | |
|---|---|
| Management Port | Yes |
| Miscellaneous | |
|---|---|
| Product Name | ExtremeWireless AP510C Wireless Access Point |
