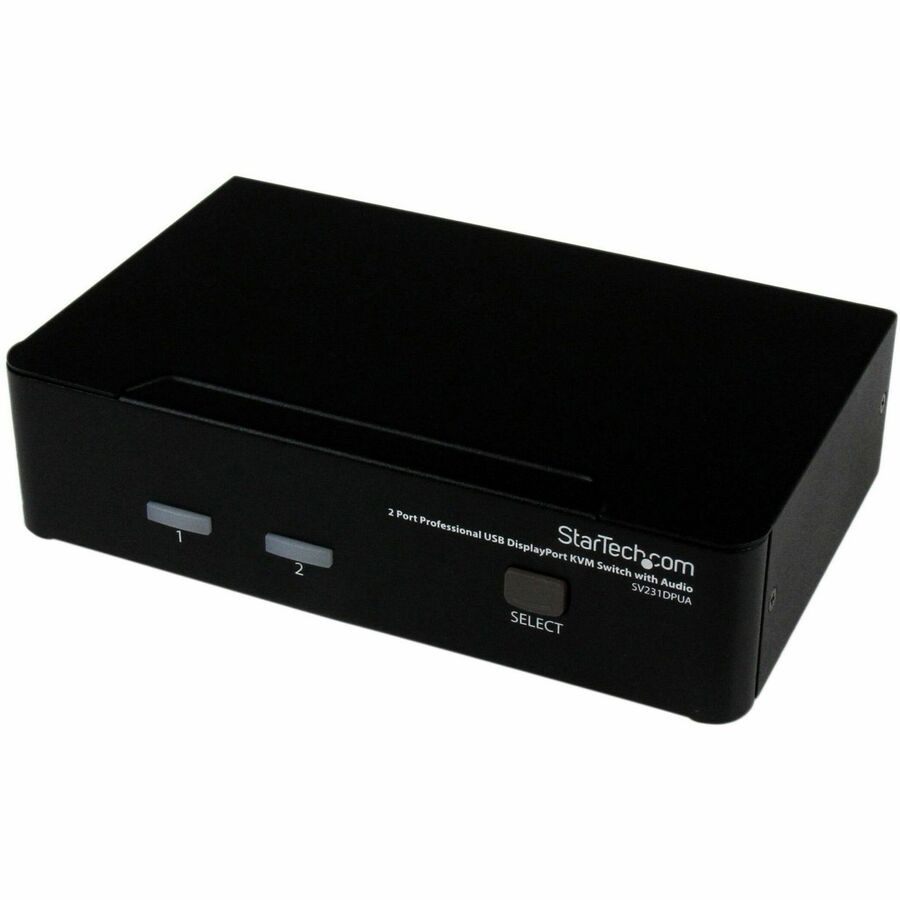

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.
A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.
A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
More from the Manufacturer
- Platform Independent - Supports Mac and PC operating environments
- Full plug-and-play support with USB keyboards, mice, and connected peripherals
- No driver or software installation required
- Hotkey and push-button switching
- USB 2.0 peripheral sharing
- VESA and CEA compliant
- Supports 3.5mm Stereo analog audio; Supports 7.1 Channel High Definition Digital Audio through the DisplayPort connection
- Supports a maximum resolution of 3840 x 2400 at lower refresh rates
- Native resolution: 2560 x 1600 @ 60Hz, beyond 1080p
- Supports native DisplayPort computer connections - no adapter required
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WQUXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V AC to 240V AC |
| Input Voltage | 5 V DC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2400 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Local Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Number of Computers Supported | 2 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Miscellaneous | |
|---|---|
| Product Name | 2 Port USB DisplayPort KVM Switch with Audio |
