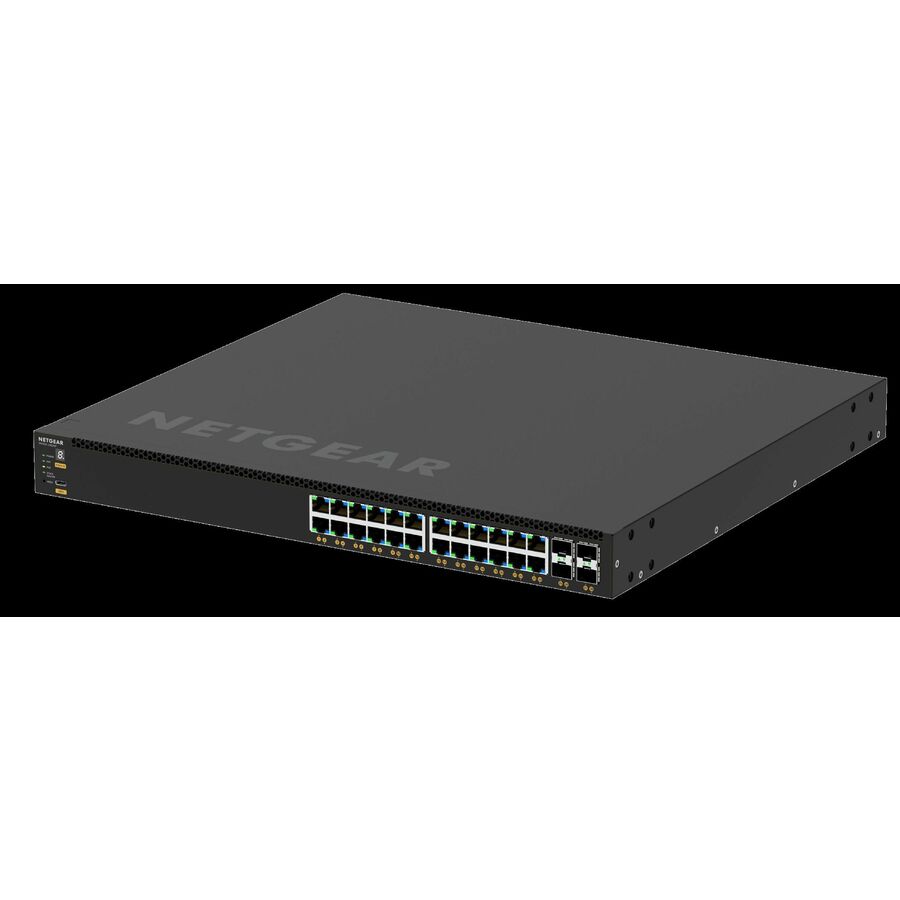

Netgear AV Line M4350-24G4XF Ethernet Switch

2,579.99 2,579.99
2,579.99

2,579.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Number of Power Supplies Supp
  • Redundant Power Supply Suppor
  • Number of Power Supplies Inst
  • Network Technology
  • Manageable
  • Modular
  • Network (RJ-45)
  • Total Number of Network Ports
  • PoE (RJ-45) Port
  • Total Number of Expansion Slots
  • Expansion Slot Type
  • Uplink Port
  • Number of SFP+ Slots
  • Port/Expansion Slot Details
  • Plug/Connector Type
  • Form Factor
  • Compatible Rack Unit
  • Ethernet Technology
  • Networking Standards
  • Layer Supported
  • PoE Budget
  • Media Type Supported
  • Input Voltage
  • Frequency
  • Environmentally Friendly
  • Environmental Compliance
  • Energy Efficiency Compliance
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Series
  • Product Line
  • Product Model
  • Application/Usage
  • Manufacturer Website Address
  • Power Source
  • Power Consumption
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR listens to and supports the Pro AV community

  • IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
  • Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
  • The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
  • NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
  • AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
  • SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

  • From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
  • Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

  • Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
  • Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

  • Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
  • SNMP, sFlow and RSPAN - the entire feature set is available without license

Industry leading warranty

  • NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
  • 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
  • 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks.
  • 880W internal power supply providing 648W of PoE budget.
  • 1 slot for modular power supply (1+1 redundancy and/or EPS share).
  • Any APS350W, APS600Wv2, APS920W, or APS2000W can be used.
  • The PoE budget can reach 720W, when the redundant PoE budget remains 648W.
  • Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
  • Layer 3 feature set includes static, policy-based, and dynamic routing.
  • NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
  • NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
  • Lifetime Next Business Day Hardware Replacement.
Brand
Brand Netgear
Power & Battery
Number of Power Supplies Supp 2
Redundant Power Supply Suppor Yes
Number of Power Supplies Inst 1
Plug/Connector Type C14
PoE Budget 648 W
Input Voltage 230 V AC
Power Source PoE+
Power Consumption 240 W
Networking & Connectivity
Network Technology 10/100/1000Base-T
Layer Supported 3
Ethernet Port
Network (RJ-45) Yes
Total Number of Network Ports 24
PoE (RJ-45) Port Yes
Uplink Port Yes
Size / Dimensions
Form Factor Table Top
Compatible Rack Unit 1U
Appearance
Modular Yes
General Features
Manageable Yes
Frequency 60 Hz
Manufacturer Netgear, Inc
Expansion Slots
Total Number of Expansion Slots 4
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Misc Ports
Port/Expansion Slot Details 4 x 10 Gigabit Ethernet Expansion Slots
Printer/Scanner/Fax Specs
Media Type Supported Twisted Pair
Compliance & Certification
Environmentally Friendly Yes
Energy Efficiency Compliance Energy-using Products Directive (EuP)
