Advanced Copper and Fiber Network Testing, Diagnostics, Discovery, and Mapping
- Provides deep visibility, diagnostics, and packet capture for network technicians and engineers to quickly resolve issues impacting single or multiple devices and network segments.
- Automatically discovers, inventories, and documents network infrastructure devices, endpoints, and connection paths across multiple VLANs and subnets; detects common problems and generates topology maps in Link-Live.
- Comprehensive AutoTest validates and troubleshoots all aspects of network connectivity and services.
- Verifies available link speed from 10Mbps to 10Gbps, tests PoE, identifies connected switch port and VLAN.
Overview
The LinkRunner AT 4000 is an advanced cable and network tester for Multigigabit NBASE-T and fiber Ethernet networks, including comprehensive network discovery and topology mapping with advanced diagnostics and problem detection for in-depth troubleshooting.
Using network discovery and layer 2 and 3 path analysis, the LinkRunner AT 4000 offers comprehensive network visibility to help resolve issues impacting multiple devices - not just a single link - while still providing the automated tests for moves/ adds/changes validation and troubleshooting that the LinkRunner AT family of test solutions is known for.
Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapters) allows remote operation and result uploading separate from the network under test.
| Brand | |
|---|---|
| Brand | NetAlly |
| Screen / Display | |
|---|---|
| Display Screen Type | LCD |
| Power & Battery | |
|---|---|
| Battery Rechargeable | Yes |
| Battery Life | 9 Hour |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Size Supported | Proprietary Battery Size |
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 2 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Device Function | LAN Cable Testing |
| Manufacturer | NetAlly |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slo | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
|---|---|

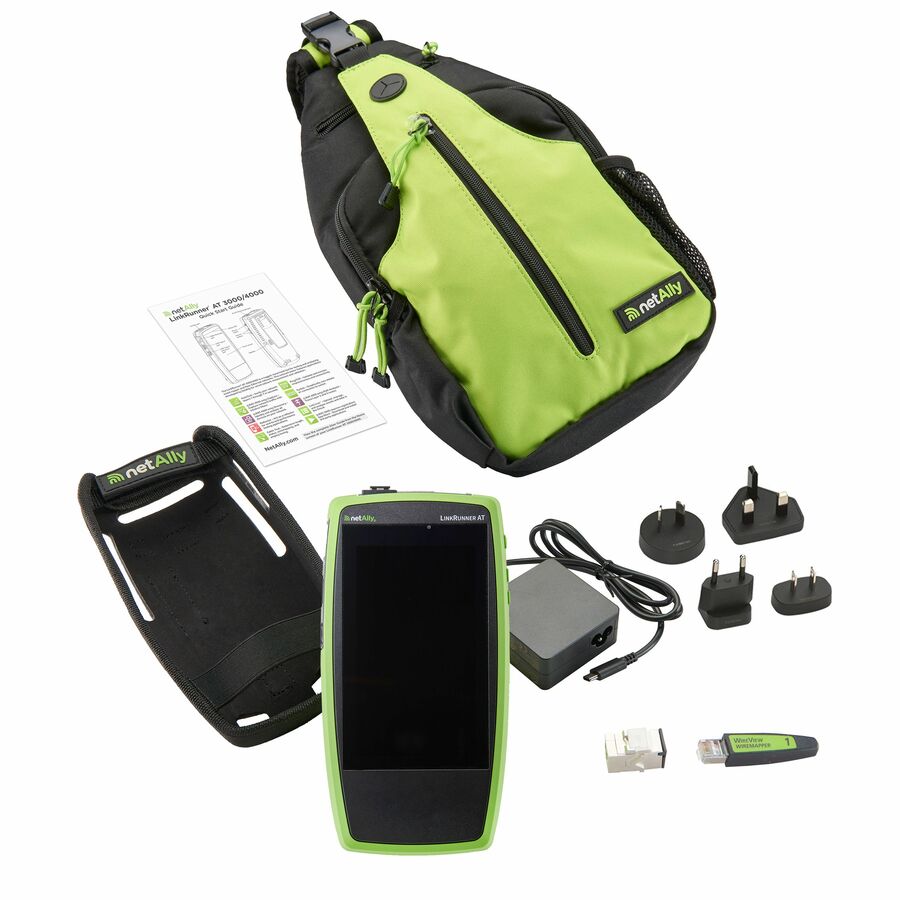

| Product Name | LinkRunner AT 4000 Advanced Network & Cable Tester |
