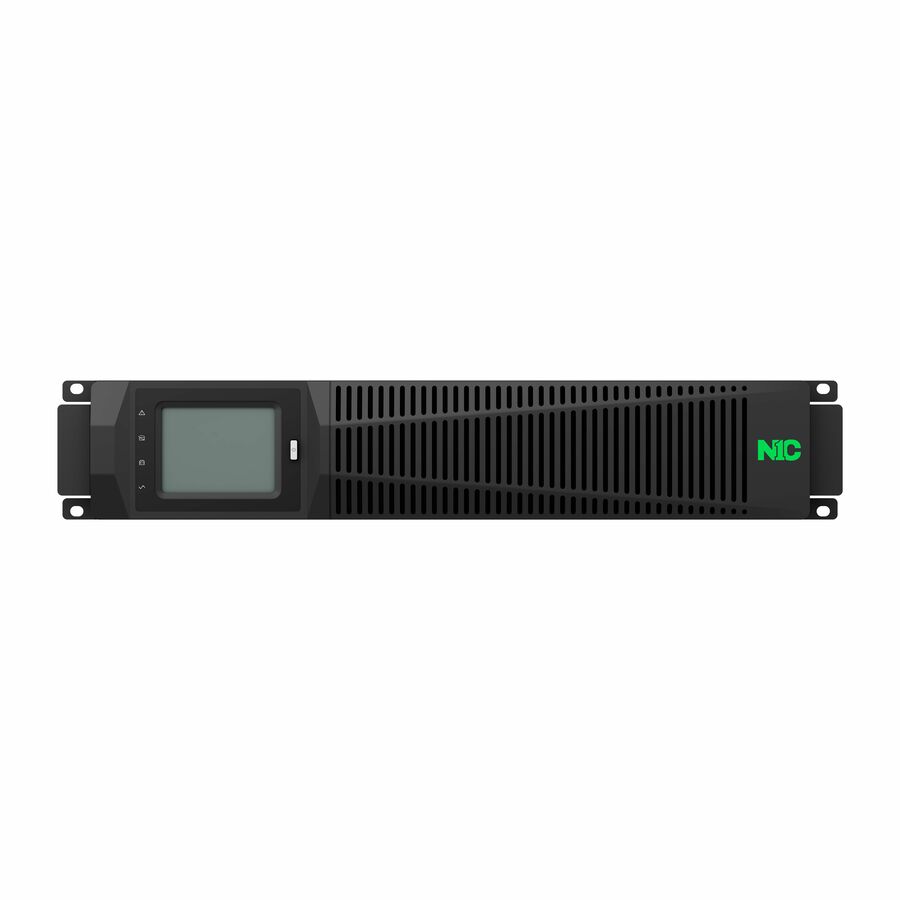

The N1C LK Series offers the most unity power factors in a small space with long runtime. 5, 6 and 10kvA options with unity power factors maximize load capacity. Extend the runtime with up to 8x total line-and-match external battery modules. Each system comes with 4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power. On board outlets offer easy connectivity and 6 and 10kVA models allow for parallel connection (up to 4x units) for power capacity growth or N+1 redundancy. Monitor and control units with an intuitive full-color touchscreen or via the included SNMP user interface via a connected PC. Keep critical loads online for longer with N1C LK-Series.
- Industry-best 10-year warranty on electronics and battery
- Lithium-ion battery lowers total cost of ownership over lead acid systems by virtually eliminating costly battery replacements
- 5kva/5kW capacity, 208-240VAC
- Unity Power Factor
- External Lithium-ion battery modules offer 12-15 year design life and > thousands of charge/discharge cycles
- Slim and compact 2U UPS + 2U EBM (up to 8x)
- Programmable outlets let you shed non-critical loads to keep critical gear on longer
- SNMP card included in all LK-Series UPS models for remote network monitoring and alerts with FREE WiseInsight multi-UPS monitoring software
- cTUVus 1778 + CSA C2.2 No. 107.3 + FCC 47 + UN38.3 (Battery)
| Brand | |
|---|---|
| Brand | N1 Critical Technologies |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L6-20R |
| Receptacle Type | NEMA L6-20R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Battery Characteristics | External Battery System |
| Typical Battery Recharge Time | 6 Hour |
| Input Voltage Range | 135 V AC - 250 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (Watt) | 5000 W |
| Load Capacity (VA) | 5000 VA |
| Backup/Run Time (Full Load) | 19 Minute |
| Backup/Run Time (Half Load) | 45 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | Dry Contact |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Input Frequency Converter | Yes |
| Manufacturer | N1 Critical Technologies, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Operating Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 45 dB(A) |
