The N1C LK Series offers the most unity power factors in a small space with long runtime. 5, 6 and 10kvA options with unity power factors maximize load capacity. Extend the runtime with up to 8x total line-and-match external battery modules. Each system comes with 4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power. On board outlets offer easy connectivity and 6 and 10kVA models allow for parallel connection (up to 4x units) for power capacity growth or N+1 redundancy. Monitor and control units with an intuitive full-color touchscreen or via the included SNMP user interface via a connected PC. Keep critical loads online for longer with N1C LK-Series.
- Industry-best 10-year warranty

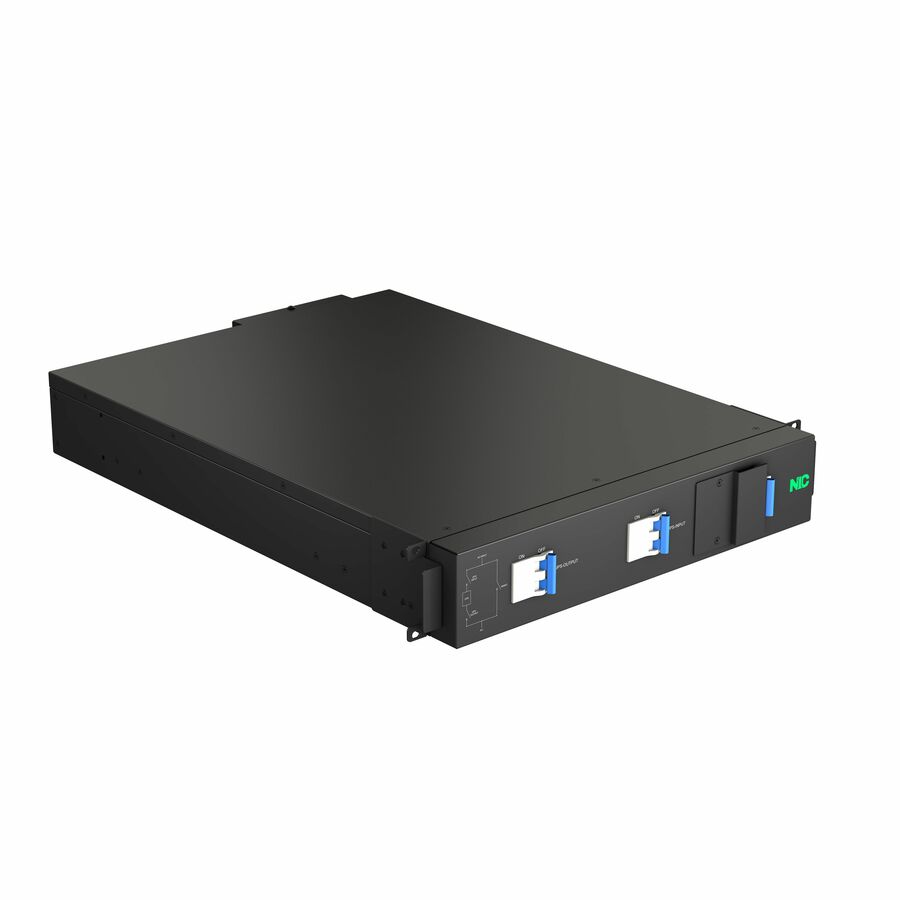

- Bypass PDU allows continued power to loads while servicing UPS/Batteries
- 10kW capacity
- 4x outlets with breakers - (2) L6-30R + (2) L6-20R - plus Output Terminals
- Includes mounting hardware and UPS cable connection kit
- Line and match 2U space-saving design
- Works with all LK-Series models plus other 5-10kW UPS systems
| Brand | |
|---|---|
| Brand | N1 Critical Technologies |
| Power & Battery | |
|---|---|
| Receptacles | Hardwired |
| Plug/Connector Type | Hardwired |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (Watt) | 10 kW |
| Load Capacity (VA) | 10 kW |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Manufacturer | N1 Critical Technologies, Inc |
| Brand | N1 Critical Technologies, Inc |
| UPC/GTIN | 810318036314 |
| MPN | 40-700600 |
| Unit Count | 1 Units |
| Warranty | 10 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
