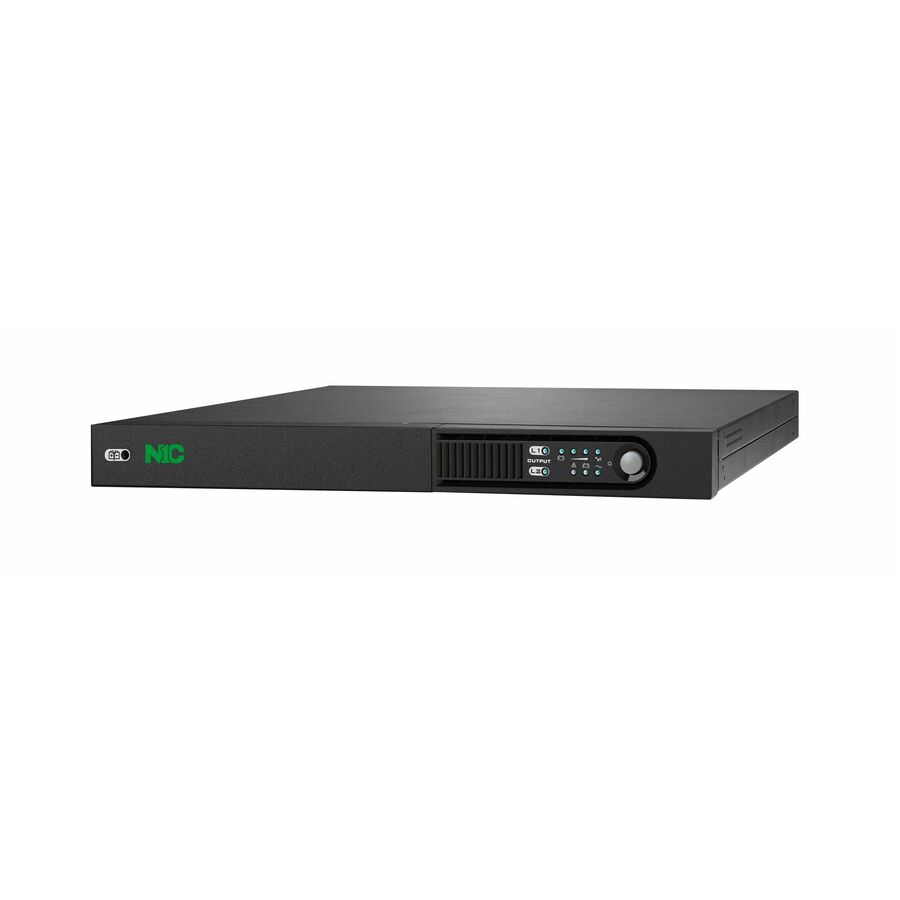

Tight on space but need extra protection? Choose the N1C C-Series UPS System. Each UPS module is 1U in rack height containing a long-lasting lithium-ion battery module. Extend the runtime of the N1C.C2200 and N1C.C3000 models with up to 4x 1U line-and-match external battery modules, allowing up to 75 mins full load runtime (2.2kva) or 55 mins full load runtime (3kva). Each system comes with universal 2-/4-post rail kits, SNMP cards for remote monitoring, license-free software and our industry-best 10-year warranty! Get piece-of-mind and maximum protection from all 9 power problems with online double conversion topology and a 0ms transfer time to battery power.
N1C's pair of C-Series 1kva models (N1C.C1000 and C1000G) are medical-grade quality with IEC 60601-1 certification for use in hospitals, clinics and field hospitals. The lithium iron phosphate (LiFePO4) battery technology on each C-Series UPS come with integrated battery management systems (BMS) for safety and a 12-15 year design life with >8,000 charge/discharge cycles in normal operating conditions. This lowers your overall total cost of ownership by virtually eliminating costly battery replacements (sourcing, shipping, downtime, maintenance, recycling, etc.). All systems offer a pure sine wave output maintain even the most sensitive equipment. The always-included SNMP network monitoring card offers remote monitoring, alerting and shutdown capabilities, and our multi-UPS monitoring software suite is license free to all users. Dry contact relay cards are also available for interfacing with building control systems, PLC boards and other industrial gear.
- Industry-best 10-year warranty on electronics and battery
- Lithium-ion battery lowers total cost of ownership over lead acid systems by virtually eliminating costly battery replacements
- 1kva/900W capacity, 230VAC
- Medical grade - IEC 60601-1 certification for use in hospitals and clinics
- Lithium-ion battery modules offer 12-15 year design life and > thousands of charge/discharge cycles
- Slim and compact 1U space-saving design
- Programmable outlet bank lets you shed non-critical loads to keep critical gear on longer
- SNMP card included in all C-Series UPS models for remote network monitoring and alerts with FREE WiseInsight multi-UPS monitoring software
- FCC+ cTUVus + IEC 60601-1 (Medical Grade), UN38.3 (Battery)
| Brand | |
|---|---|
| Brand | N1 Critical Technologies |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EPO Port | Yes |
| Receptacle Detail | 3 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Type | IEC 60320 C14 |
| Battery Life | 15 Year |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Battery Characteristics | Internal Battery |
| Typical Battery Recharge Time | 6 Hour |
| Input Voltage Range | 135 V AC - 250 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Load Capacity (Watt) | 900 W |
| Load Capacity (VA) | 1000 VA |
| Backup/Run Time (Full Load) | 8 Minute |
| Backup/Run Time (Half Load) | 17 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | USB/RS-232/Intelligent Slot |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | N1 Critical Technologies, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Operating Humidity | 20% - 90% |
| TAA Compliant | Yes |
