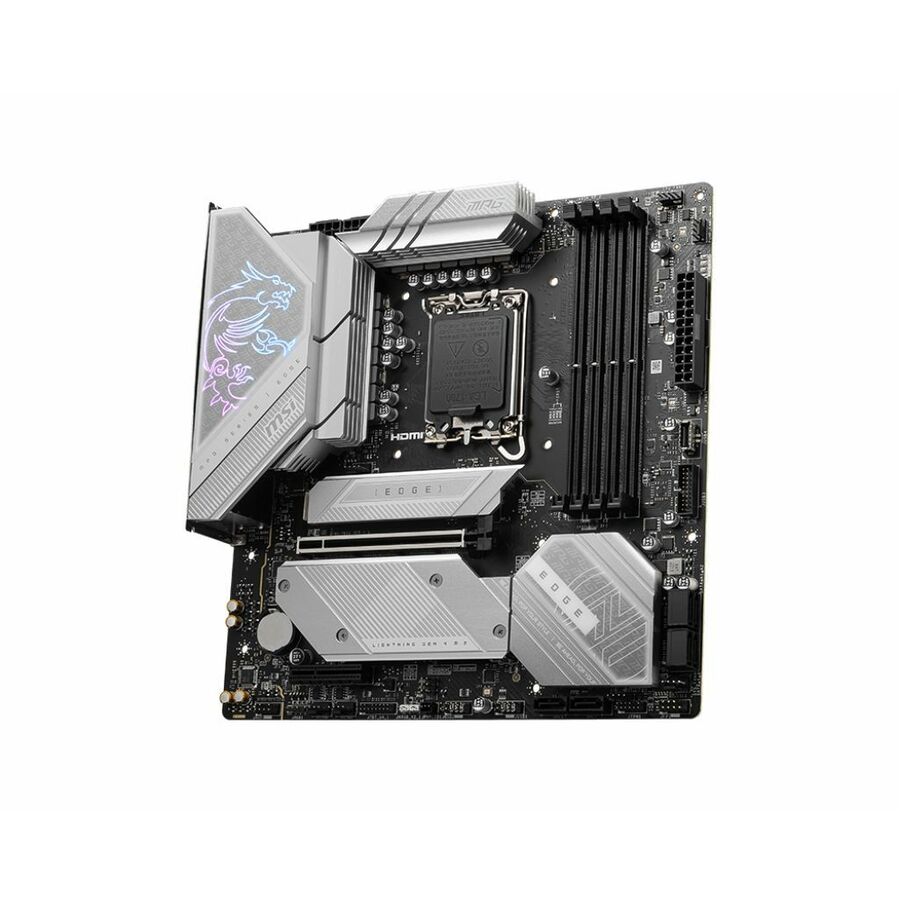

MPG B760M EDGE TI WIFI is covered with a silver-white color scheme for compact white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 6E solution, optimized DDR5 circuit, PCIe 5.0 solution, and exclusive Screwless M.2 Shield Frozr, and this is the best white B760 mATX motherboard for Intel® Core 14th Gen and 13th Gen processors.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink- Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
- Keeps M.2 SSDs safe while preventing throttling, making them run faster.
- The VRM heatsink covers the upperMOS and helps dissipate the heat.
- High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
- Support Intel®Core™ 14th/ 13th/ 12th Gen Processors, Intel®Pentium®Gold and Celeron®Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- Audio Boost: Reward your ears with studio grade sound
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Celeron |
| Total Processor Supported | 1 |
| Processor Generation Supported | 14th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 7400 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 3 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Micro ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 1 |
| Total Number of PCI Express S | 1 |
| Total Number of Expansion Slots | 1 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 6 |
