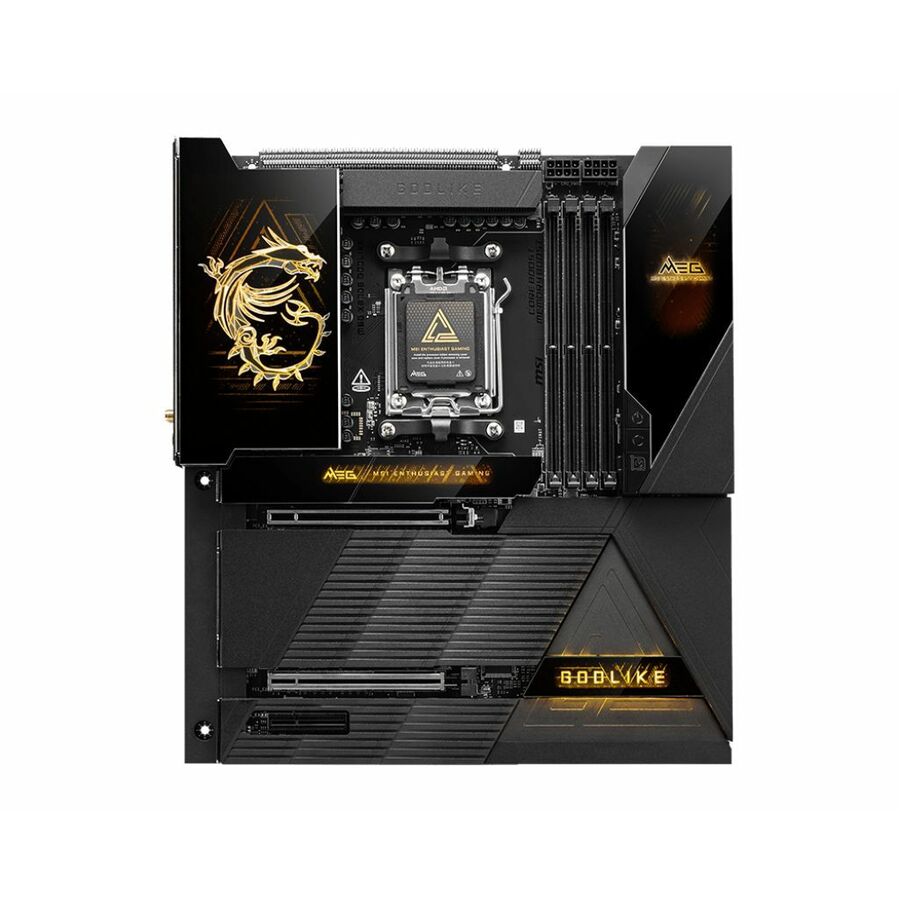

Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
Dynamic Dashboard III
A 3.99-inch full-color LCD offers real-time hardware monitoring, troubleshooting, BIOS update status, clock display, and personalization options, significantly enhancing the overall user experience.
EZ LINK
The GODLIKE-exclusive EZ Link design consolidates most of the case front panel headers, fan headers, and RGB headers into the EZ Bridge and EZ Control Hub, simplifying installation and creating a cleaner aesthetic.
M.2 XPANDER-Z SLIDER GEN5
In addition to the 5 built-in M.2 slots, the MEG X870E GODLIKE also comes with the all-new M.2 XPANDER-Z SLIDER GEN5 card, providing even more high-speed storage expansion options.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
- Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience.
- M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless.
- Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material.
- Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
- EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna.
- Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 So
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 9 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 10 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 15 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Extended ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x4 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 5.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 7 |
| Number of SATA Interfaces | 4 |
