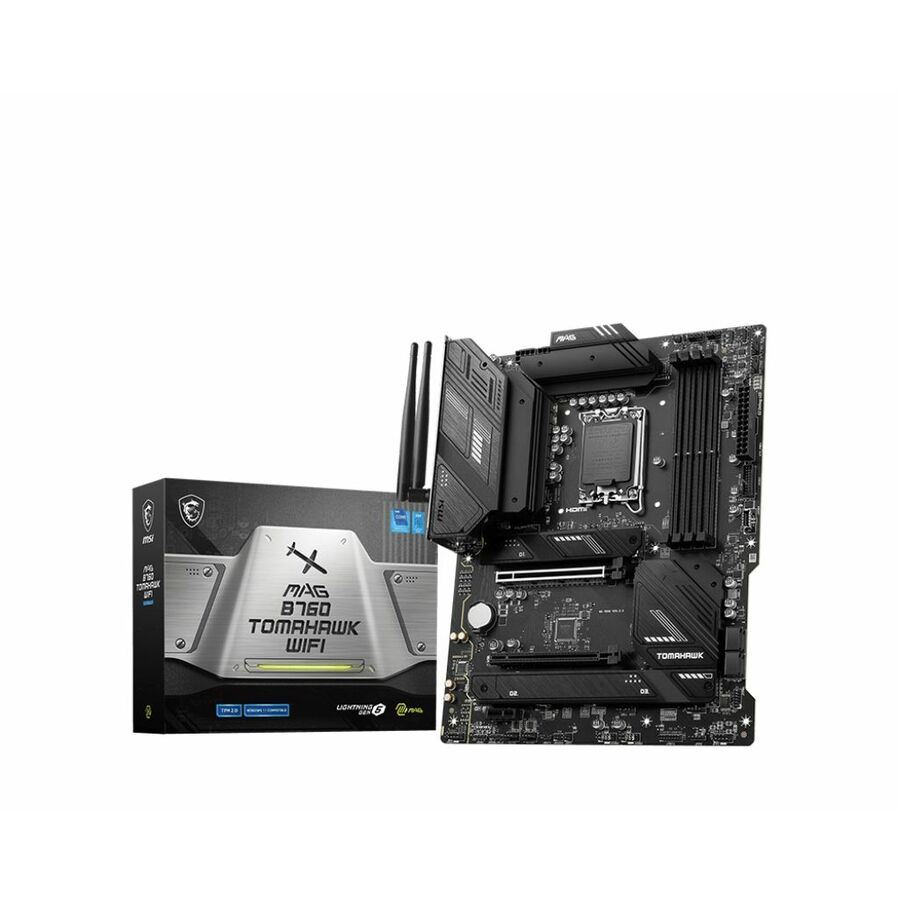

The MAG B760 Tomahawk Wifi fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Lightning Gen 5
- The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory
- A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Wi-Fi 6E
- The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- 2.5G Network Solution
- Featuring premium 2.5G LAN to deliver better network experience.
- 6 Layer PCB with 2oz Thickened Copper
- An Enhanced PCB design provides higher performance and longlasting system stability without any compromise.
- Lightning USB 20G
- Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- M.2 Shield FROZR
- M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
- Memory Boost
- Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost
- With premium layout and fully digital power design to support mor
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Pentium Gold |
| Total Processor Supported | 1 |
| Processor Generation Supported | 13th Gen |
| Processor Socket | Socket LGA-1700 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Speed Supported | 4800 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 4 |
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 9 |
| Number of USB 2.0 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 3 |
| Number of PCI Express x1 Slots | 1 |
| Total Number of Expansion Slots | 3 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 3 |
| Number of SATA Interfaces | 4 |
