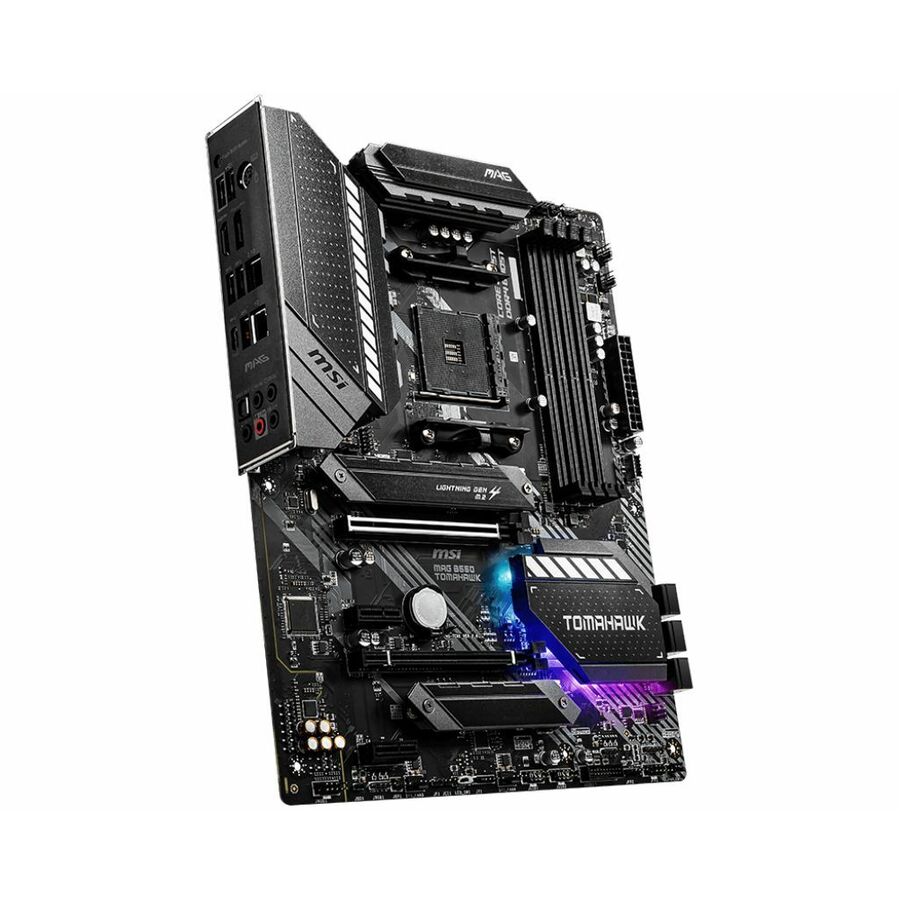

MAG
Conquer the Battlefield
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.
- 2oz Thickened Copper PCB An enhanced PCB design improves heat dissipation and performance reliability.
- DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability.
- 2.5G Plus Gigabit LAN Onboard 2.5G, Gigabits LAN with LAN manager, delivers the better online network experience without lag
- Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience.
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed
- Mystic Light RGB LED Personalize your PC with 16.8 million colors / 29 effects, controlled in one click!
- Core Boost With premium layout and fully digital power design to support more cores and provide better performance
- M.2 Shield FROZR M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster
- Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Supported | Ryzen 9 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| GPU / Graphics | |
|---|---|
| Multi GPU Supported | CrossFire |
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 5100 MHz |
| Memory Form Factor | UDIMM |
| Number of Memory Slots | 4 |
| Maximum Memory Supported | 128 GB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 1 |
| USB Ports | |
|---|---|
| Total Number of Onboard USB P | 7 |
| Number of Onboard USB 2.0 Por | 4 |
| Number of Onboard USB 3.2 Por | 3 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 4 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio Ports | |
|---|---|
| S/PDIF | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | ATX |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Controller Type | Serial ATA/600 |
| Manufacturer | MSI |
| Brand Compatibility | AMD |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of PCI Express S | 4 |
| Number of PCI Express x1 Slots | 2 |
| Total Number of Expansion Slots | 4 |
| PCI Express Standard | PCI Express 3.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Number of SATA Interfaces | 6 |
