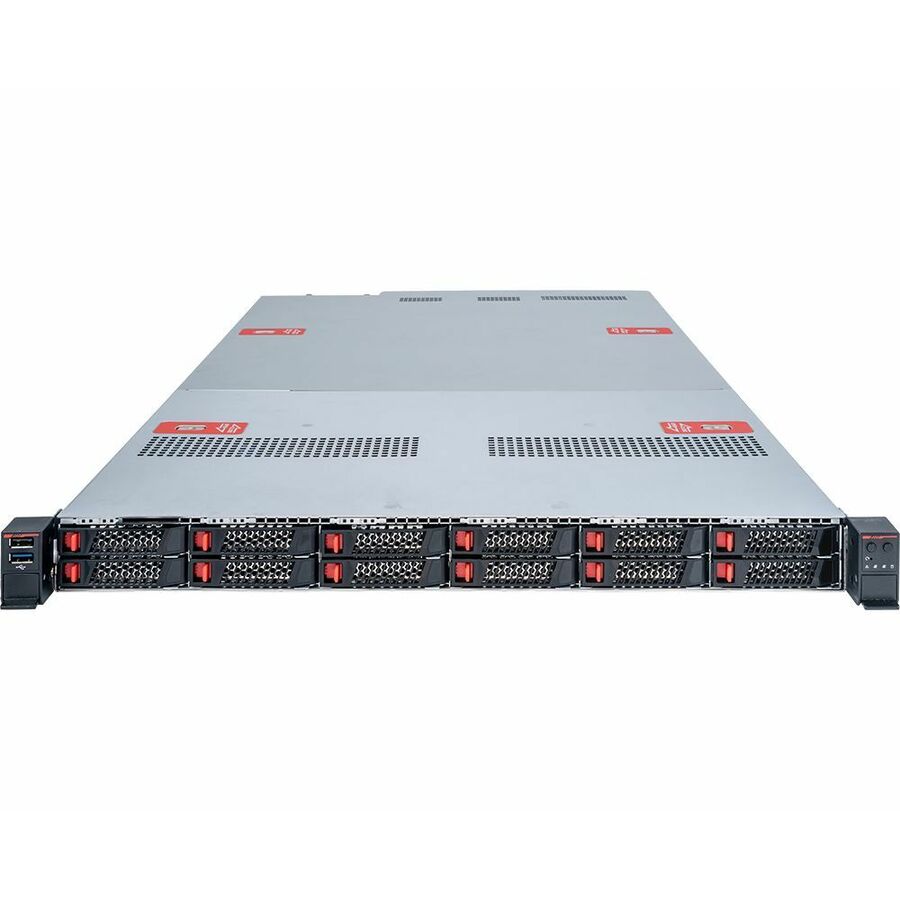

1U Single-Socket AMD SP5 Enterprise Server Platform with All-NVMe Flash Storage
The CX171-S4056 Series enterprise server features a single-socket AMD EPYC 9005/9004 Series processor, optimized for maximum memory capacity and high-TDP performance. It supports up to 12 U.2 NVMe drive bays and PCIe Gen 5.0, built on the DC-MHS architecture.
- Compatible EPYC processor enables fast and efficient execution of computational tasks
- NVMe interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance
- Featuring 4 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
- Gigabit Ethernet offers speeds up to 10x faster than standard Ethernet, ensuring high-performance uplinks and reliability
- DDR5 SDRAM slot allows convenient installation of memory, ensuring easy upgrades and improved system performance
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | AMD |
| Processor Supported | EPYC |
| Number of Processors Supported | 1 |
| 64-bit Processing | Yes |
| Processor Socket | Socket SP5 |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | ASPEED |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 24 |
| Maximum Memory Supported | 6 TB |
| Storage | |
|---|---|
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Inter | M.2 |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Plug/Connector Type | C13 |
| Maximum Power Supply Wattage | 1500 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 1 |
| DisplayPort | |
|---|---|
| Mini DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Controller Type | NVMe |
| Manufacturer | MSI |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 12 |
| Number of 2.5" Bays | 12 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
