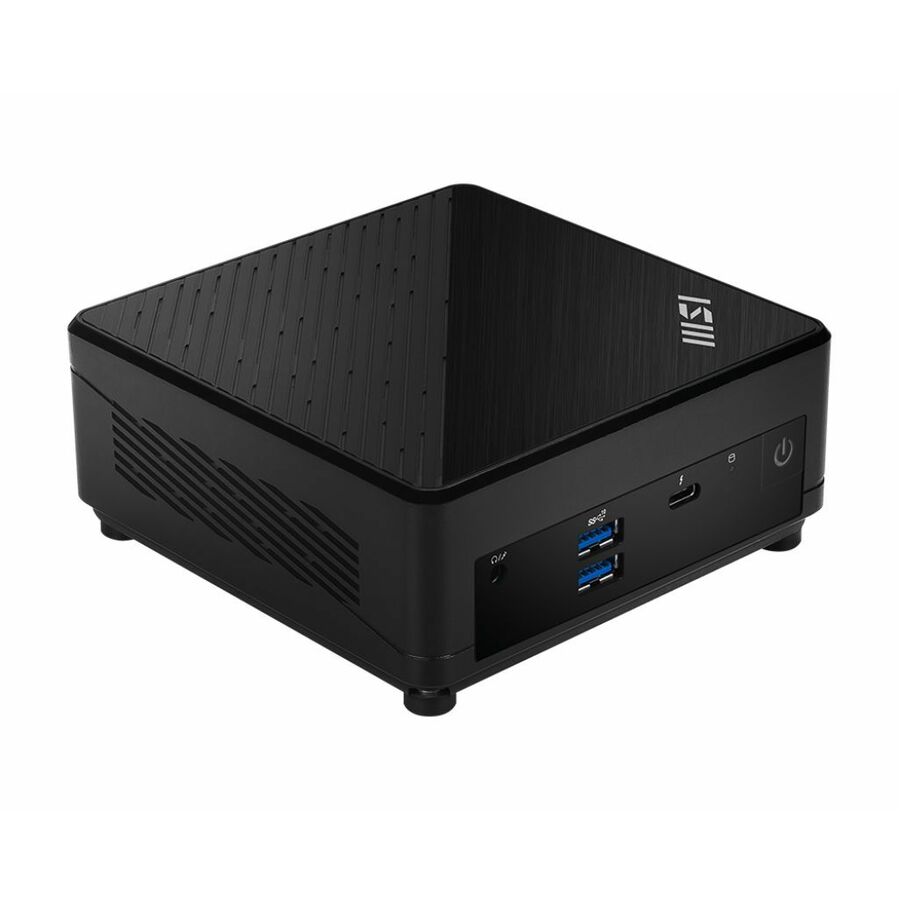

The MSI Cubi NUC Mini PC is the ideal client device for purpose-built applications such as digital signage, back up or front-end user interface without taking up any space. it can be hidden or mount behind the display less than 6 inches from backwall. The Cubi can display up to 3 independentdisplays.
- Support up to 8K UHD Display
- Support three displays
- Thunderbolt 4
- Dual LAN
- Vesa Mountable
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | Intel |
| Processor Type | Core i3 |
| Processor Model | i3-1215U |
| Processor Generation | 12th Gen |
| Processor Core | Hexa-core (6 Core) |
| Maximum Turbo Speed | 3.40 GHz |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufactu | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Memory / RAM | |
|---|---|
| Number of Occupied Memory Slo | 1 |
| Standard Memory | 8 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 2 |
| Maximum Memory Supported | 64 GB |
| Storage | |
|---|---|
| Total Solid State Drive Capac | 500 GB |
| Drive Type | SSD |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Power & Battery | |
|---|---|
| Maximum Power Supply Wattage | 65 W |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| LAN Model | RTL8111H |
| LAN Manufacturer | Realtek |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Ports | 4 |
| HDMI Ports | |
|---|---|
| Number of HDMI Outputs | 1 |
| HDMI (Rear) | Yes |
| Thunderbolt Ports | |
|---|---|
| Number of Thunderbolt 4 Ports | 1 |
| DisplayPort | |
|---|---|
| DisplayPort (Rear) | Yes |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number Of Ethernet Ports | 2 |
| Software & Licensing | |
|---|---|
| Operating System Platform | Windows |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini PC |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Cooler Type | Fan Cooler |
| Manufacturer | MSI |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
| Miscellaneous | |
|---|---|
| Product Name | Cubi 5 12M-401US Desktop Computer |
