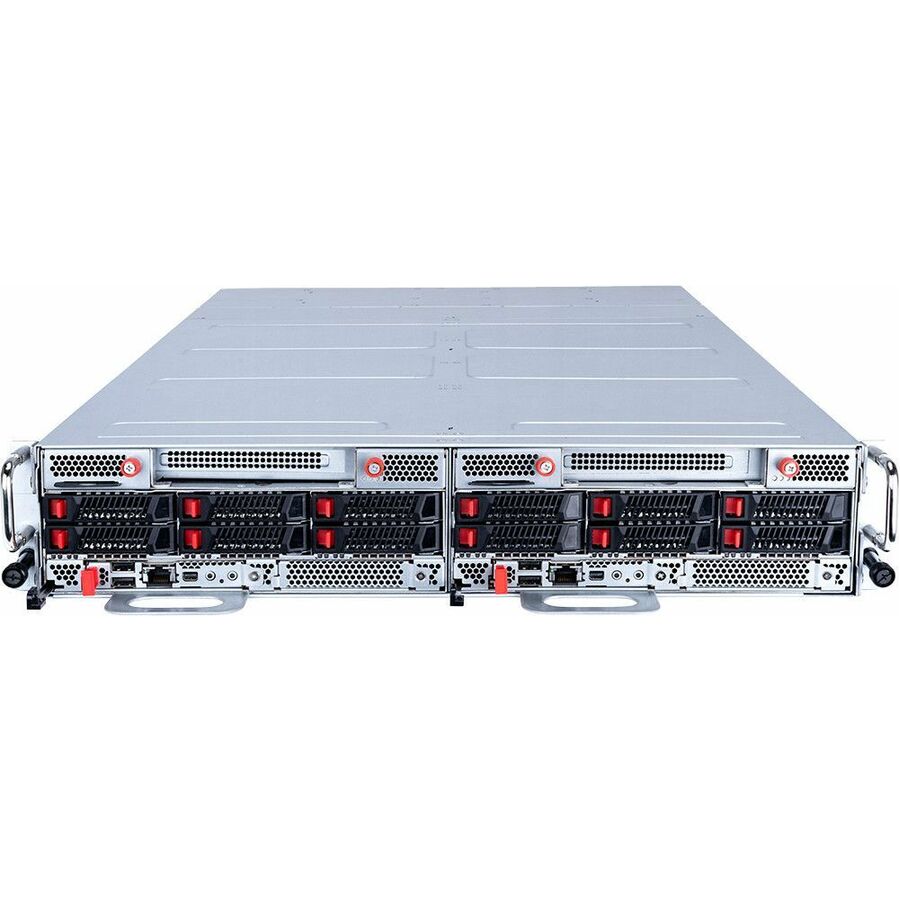

2U 2-Node AMD SP5 DC-MHS Server Platform Designed for Maximum Thermal Efficiency The CD270-S4051-X2 Series Core Compute server features AMD EPYC 9005/9004 Series processors and is equipped with an optimized airflow design and a large 2U standard Extended Volume Air Cooling (EVAC) CPU heatsink. This configuration supports maximum CPU TDP while minimizing fan power consumption for enhanced thermal efficiency
- Barebone System is compact, stylish, space-efficient, and portable, ideal for daily office and home use
- Perform computational tasks efficiently with EPYC processor for smooth and reliable performance
- NVMe interface delivers fast data transfer and higher throughput, ensuring smooth performance for demanding workloads
- Rack-mountable barebone system offers easy installation and convenient access for streamlined maintenance
- Can connect up to 2 USB peripherals for versatile and productive device integration
- Gigabit Ethernet port supports ultra-fast network speeds for smooth data transfer and improved system performance
- With DDR5 SDRAM memory technology, experience faster data transfer rates and enhanced overall system performance
| Brand | |
|---|---|
| Brand | MSI |
| CPU / Processor | |
|---|---|
| Processor Manufacturer | AMD |
| Processor Supported | EPYC |
| Number of Processors Supported | 1 |
| 64-bit Processing | Yes |
| Thermal Design Power | 500 W |
| GPU / Graphics | |
|---|---|
| Graphics Controller Manufacturer | ASPEED |
| Graphics Memory Accessibility | Dedicated |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 12 |
| Maximum Memory Supported | 256 GB |
| Storage | |
|---|---|
| Supported Storage Drive Types | SSD |
| Supported Storage Drive Inter | PCI Express 5.0 x16 |
| Power & Battery | |
|---|---|
| Number of Power Supplies Inst | 2 |
| Maximum Power Supply Wattage | 2400 W |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| DisplayPort | |
|---|---|
| Mini DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Controller Type | NVMe |
| Manufacturer | MSI |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 2 |
| Total Number of Expansion Slots | 2 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 6 |
| Number of 2.5" Bays | 6 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 2 |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Compliance | Energy-related Products Directive (ErP) |
