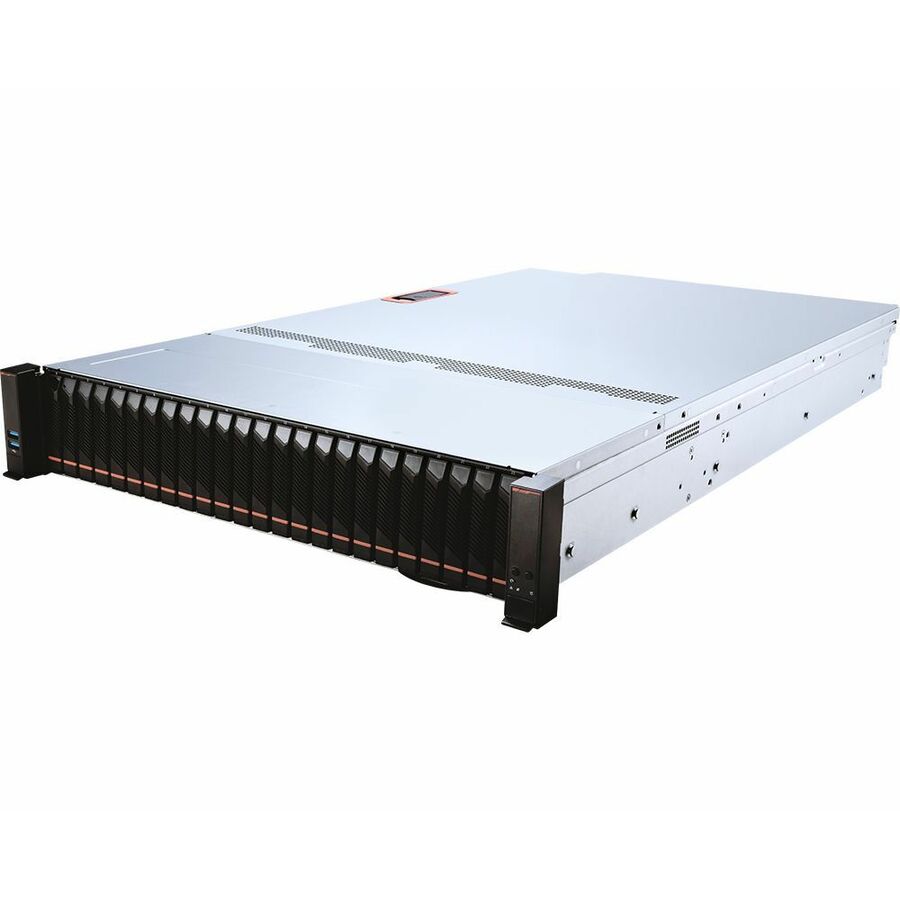

MSI Barebone System - 2U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD

$ 4,974.99 $ 4,974.99
$ 4,974.99

$ 4,974.99 / Units
  • Brand
  • Processor Manufacturer
  • Processor Supported
  • Number of Processors Supported
  • Depth
  • Number of PCI Express x16 Slo
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Brand Name
  • Width
  • Number of Power Supplies Inst
  • Supported Storage Drive Types
  • Supported Storage Drive Inter
  • Graphics Controller Manufacturer
  • Chipset Manufacturer
  • 64-bit Processing
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • Number of USB 3.0 Ports
  • Mini DisplayPort
  • Network (RJ-45)
  • Number of Total Expansion Bays
  • Number of 2.5" Bays
  • Total Number of Expansion Slots
  • Plug/Connector Type
  • Form Factor
  • Rack Height
  • Processor Socket
  • Thermal Design Power
  • Memory Technology
  • Total Number of Memory Slots
  • Maximum Memory Supported
  • Graphics Memory Accessibility
  • Ethernet Technology
  • Input Voltage
  • Frequency
  • Controller Type
  • Environmental Compliance
  • Energy Efficiency Compliance
  • Packaged Quantity
  • Package Contents
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Maximum Power Supply Wattage
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • 2U (DC-MHS architecture)
  • Single AMD EPYC™ 9004/9005 Series processor, TDP up to 500W
  • (24) DDR5 RDIMM, 12 channels(2DPC), up to 5200MT/s(1DPC) and 4400MT/s(2DPC)
  • (24) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays
  • (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports
  • (2) PCIe 5.0 x16 OCP3 NIC Mezzanine slot (NCSI supported)
  • (1) 1000Base-T Dedicated Server Management port with:
  • ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
  • Dual BIOS & BMC
  • TPM2.0 and Hardware Root of Trust module are supported as optional
Brand
Brand MSI
CPU / Processor
Processor Manufacturer AMD
Processor Supported EPYC
Number of Processors Supported 1
64-bit Processing Yes
Processor Socket Socket SP5 LGA-6096
Thermal Design Power 500 W
GPU / Graphics
Graphics Controller Manufacturer ASPEED
Graphics Memory Accessibility Dedicated
Memory / RAM
Memory Technology DDR5 SDRAM
Total Number of Memory Slots 24
Maximum Memory Supported 6 TB
Storage
Supported Storage Drive Types SSD
Supported Storage Drive Inter PCI Express NVMe 5.0 x4
Power & Battery
Number of Power Supplies Inst 2
Plug/Connector Type C13
Input Voltage 230 V AC
Maximum Power Supply Wattage 2000 W
USB Ports
Total Number of USB Ports 3
Number of USB 3.0 Ports 1
DisplayPort
Mini DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Rack Height 2U
General Features
Chipset Manufacturer AMD
Frequency 63 Hz
Controller Type NVMe
Manufacturer MSI
Expansion Slots
Number of PCI Express x16 Slo 2
Total Number of Expansion Slots 2
Drive Bays
Number of Total Expansion Bays 24
Number of 2.5" Bays 24
Misc Ports
Number of M.2 Interfaces 2
Compliance & Certification
Energy Efficiency Compliance Energy-related Products Directive (ErP)
