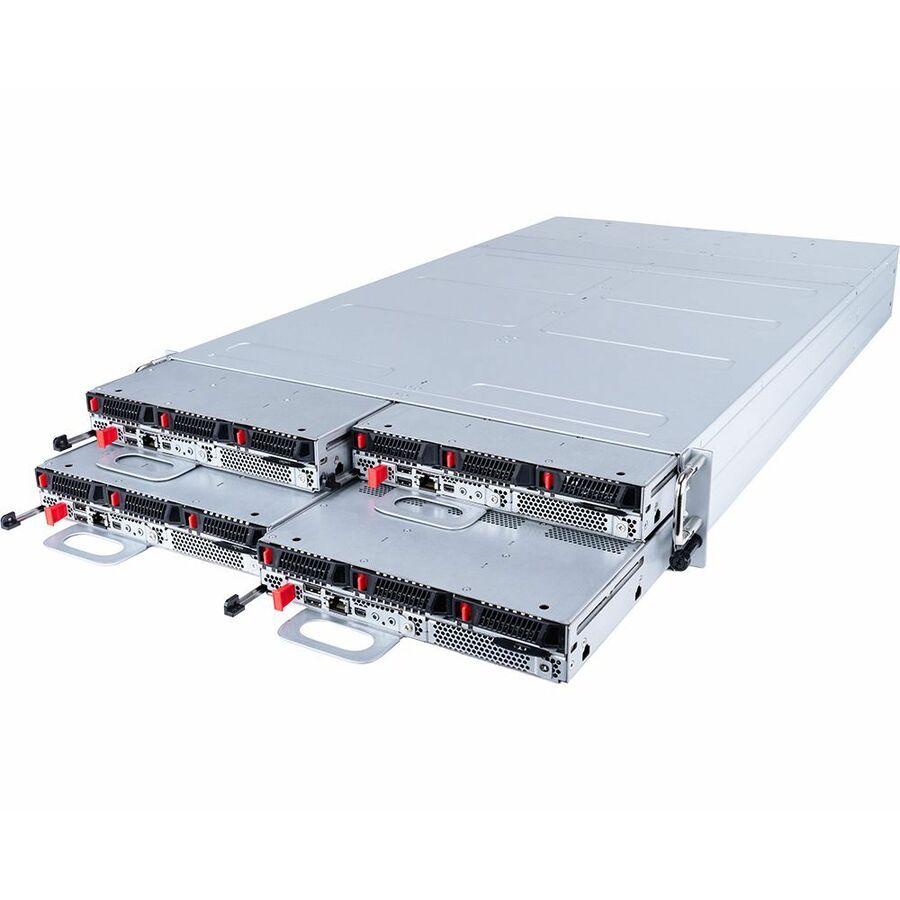

MSI Barebone System - 2U Rack-mountable - Socket SP5 LGA-6096 - 1 x Processor Support - AMD

$ 9,384.99 $ 9,384.99
$ 9,384.99

$ 9,384.99 / Units
  • Brand
  • Processor Manufacturer
  • Processor Supported
  • Number of Processors Supported
  • Depth
  • Number of PCI Express x16 Slo
  • Height
  • Product Name
  • Number of Network (RJ-45) Por
  • Brand Name
  • Width
  • Number of Power Supplies Inst
  • Supported Storage Drive Types
  • Supported Storage Drive Inter
  • Graphics Controller Manufacturer
  • Chipset Manufacturer
  • 64-bit Processing
  • Number of M.2 Interfaces
  • Total Number of USB Ports
  • Mini DisplayPort
  • Network (RJ-45)
  • Number of PCI Express x4 Slots
  • Number of Total Expansion Bays
  • Number of 2.5" Bays
  • Total Number of Expansion Slots
  • Plug/Connector Type
  • Form Factor
  • Rack Height
  • Processor Socket
  • Thermal Design Power
  • Memory Technology
  • Total Number of Memory Slots
  • Maximum Memory Supported
  • Graphics Memory Accessibility
  • Ethernet Technology
  • Input Voltage
  • Frequency
  • Controller Type
  • Environmental Compliance
  • Energy Efficiency Compliance
  • Packaged Quantity
  • Package Contents
  • Manufacturer
  • Product Type
  • Application/Usage
  • Manufacturer Website Address
  • Maximum Power Supply Wattage
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
  • 2U4N (DC-MHS architecture)
  • Single AMD EPYC™ 9004/9005 Series processor, up to TDP 400W, per node
  • (12) DDR5 RDIMM, 12 channels(1DPC), up to 6400MT/s, per node
  • (3) Front hot-swap 2.5" U.2 PCIe 5.0 x4 NVMe drive bays per node
  • (2) 2280/22110 PCIe 3.0 x2 NVMe M.2 ports per node
  • (1) 1000Base-T Dedicated Server Management port per node with:
  • ASPEED AST2600 with IPMI 2.0 & DMTF Redfish support
  • Dual BIOS & BMC
  • TPM2.0 and Hardware Root of Trust module are supported as optional
Brand
Brand MSI
CPU / Processor
Processor Manufacturer AMD
Processor Supported EPYC
Number of Processors Supported 1
64-bit Processing Yes
Processor Socket Socket SP5 LGA-6096
Thermal Design Power 400 W
GPU / Graphics
Graphics Controller Manufacturer ASPEED
Graphics Memory Accessibility Dedicated
Memory / RAM
Memory Technology DDR5 SDRAM
Total Number of Memory Slots 12
Maximum Memory Supported 256 GB
Storage
Supported Storage Drive Types SSD
Supported Storage Drive Inter PCI Express 5.0 x16
Power & Battery
Number of Power Supplies Inst 2
Plug/Connector Type C19
Input Voltage 230 V AC
Maximum Power Supply Wattage 2700 W
USB Ports
Total Number of USB Ports 2
DisplayPort
Mini DisplayPort Yes
Ethernet Port
Number of Network (RJ-45) Por 1
Network (RJ-45) Yes
Size / Dimensions
Form Factor Rack-mountable
Rack Height 2U
General Features
Chipset Manufacturer AMD
Frequency 60 Hz
Controller Type NVMe
Manufacturer MSI
Expansion Slots
Number of PCI Express x16 Slo 1
Number of PCI Express x4 Slots 3
Total Number of Expansion Slots 4
Drive Bays
Number of Total Expansion Bays 3
Number of 2.5" Bays 3
Misc Ports
Number of M.2 Interfaces 2
Compliance & Certification
Energy Efficiency Compliance Energy-related Products Directive (ErP)
