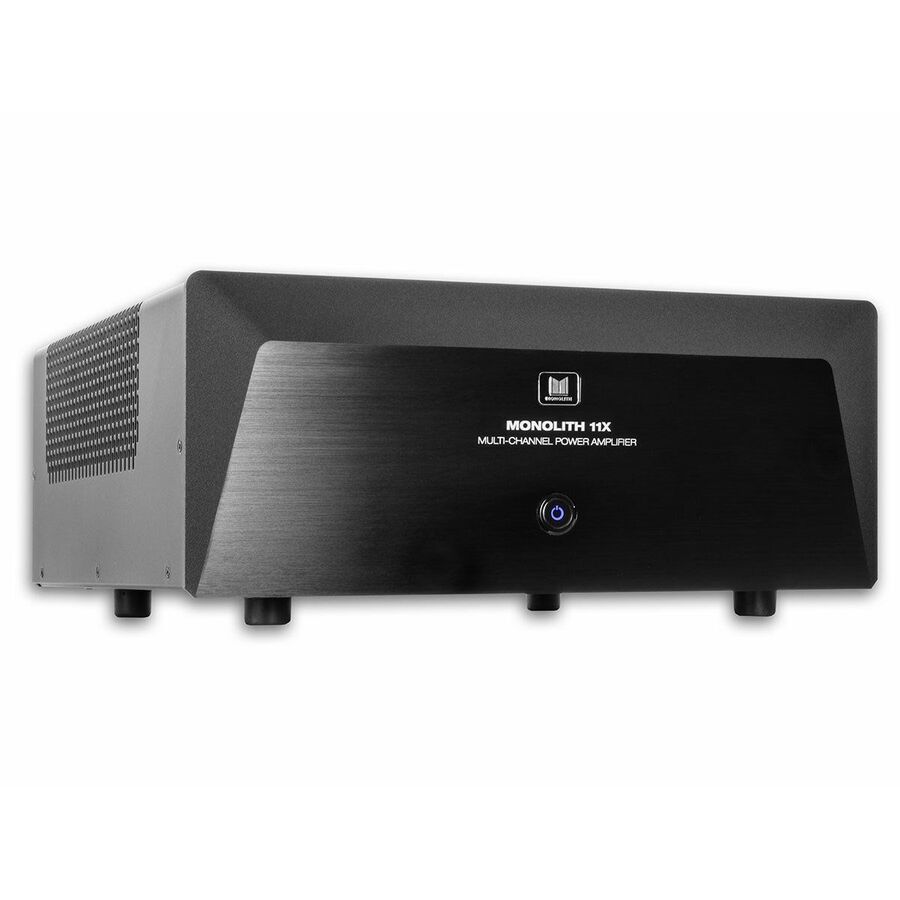

The Monolith™ 11X is a state-of-the-art, high-performance, audiophile-grade 11 channel home theater amplifier. With three channels of 200 watt amplification and 8 channels of 100 watts of amplification, the Monolith 11X is capable of driving the most demanding home theater systems and reproducing the most dynamic soundtracks, while also articulating all the subtle sonic details found in music. Supercharge your existing receiver or create the foundation of a no compromise home theater system with the Monolith 11X.
Power:The Monolith™ 11X is an 11-channel amplifier comprised of 200 watts per channel into 3 channels, and 100 watts per channel into 8 channels of amplification. This rating is measured with all channels driven across the full power bandwidth of 20Hz to 20kHz into 8-ohm loads. Additionally, there is NO current limiting and there is no protection circuitry in the amplifier circuit path. Even if the speakers' impedance drops to a low level, the Monolith is robust enough that the current is never limited.
Dynamics:High resolution audio delivers the best in music and movie soundtracks. You deserve an amplifier capable of delivering clear and clean audio across a wide dynamic range! With a more than 100dB signal to noise ratio, the Monolith™ 11X can clearly and accurately articulate the quietest portions, the loudest portions, and everything in between.
Class AB:More efficient than Class A, many high end, audiophile grade amplifiers utilize a Class AB design.
Assembled in the U.S.A.:The Monolith™ 11X is designed, engineered, and assembled in the United States of America.
Two Toroidal Transformers
No, these aren't new villains in the next giant robot movie, these are the source of an amplifier's power. Each amplifier channel gets its own set of transformer windings, and also its own storage capacitor. Essentially, each channel has its own power supply - meaning if one channel gets maxed out, the other channels are not affected.
Spaghetti Free Zone
Ever look behind a stereo rack and were aghast at the sight of the spaghetti entanglement of dozens of wires? Not here. Neat, clean wiring in tubing designed for the aerospace industry. Clean wiring. Clean layout. Better sound.
Circuit Boards
Double sided, glass epoxy boards. Metal film resistors built to 1% tolerances. Stringent quality to ensure each circuit board functions like the last and presents the maximum in sound fidelity.
Protection Circuits
These lightning fast, optically coupled circuits are designed to detect electrical shorts from either the speakers, speaker wire, or electrical outlet. If triggered, the circuit will disengage the output, protecting the amplifier. It will then sample the affected circuit every 10 seconds and will restore output when it is safe to do so. Unlike other designs where there is a fuse or relay in series with the output, which can raise the damping factor or modify the sound, our protection circuitry monitors the signal actively, but does so optically from outside the circuit path.
- Helps maintain the signal's strength
- Listen to deep lows and extreme highs maintaining 20 kHz maximum frequency
- Smartly manages power at 8 Ohm impedance to execute sound flow. So Indulge yourself in HQ audio output!
- Showcases 11 audio channels with 1400 W RMS output power
| Brand | |
|---|---|
| Brand | Monoprice |
| Power & Battery | |
|---|---|
| Input Voltage | 24 V DC |
| Operating Power Consumption | 1800 W |
| Audio Ports | |
|---|---|
| Speaker Connection Type | RCA |
| Number of Analog Audio Inputs | 11 |
| Audio | |
|---|---|
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20 Hz |
| Impedance | 8 Ohm |
| RMS Output Power | 1400 W |
| Audio Channels | 11 |
| General Features | |
|---|---|
| Manufacturer | Monoprice, Inc |
| Classification | AB |
