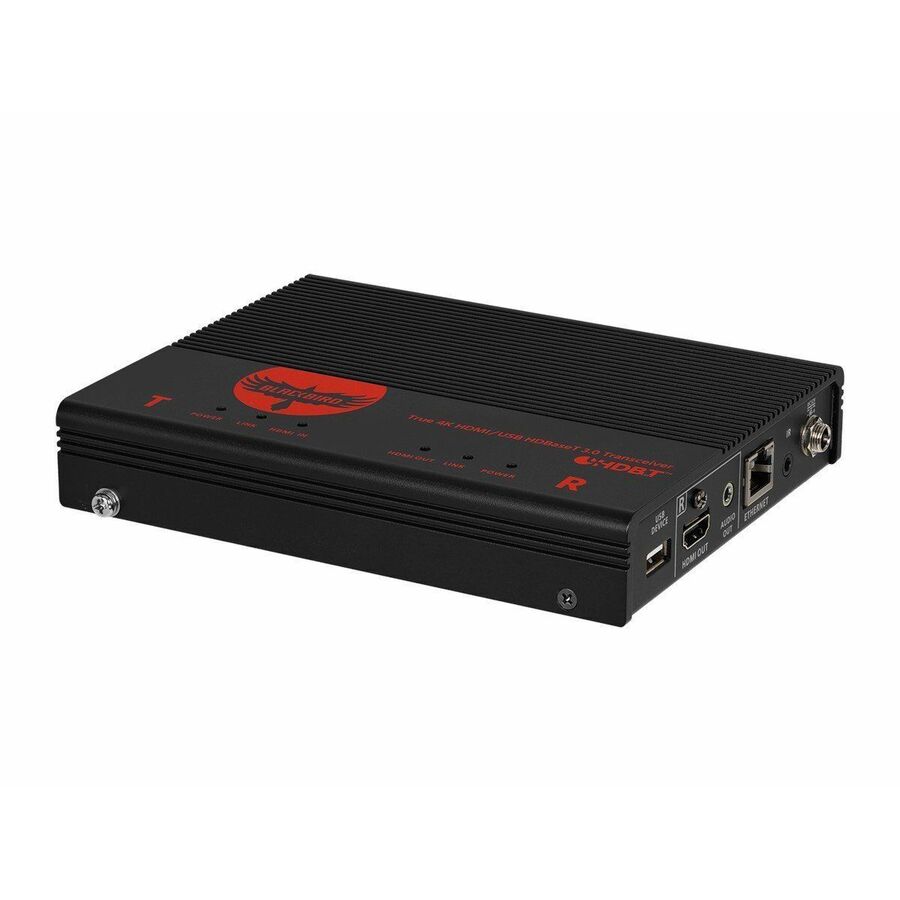

The Blackbird™ True 4K/60 HDMI/USB HDBaseT 3.0 Transceiver by Monoprice™ extends True 4K uncompressed HDMI® signals up to 100 meters (328 feet) over a single Cat6a cable. Since HDBaseT also carries bi-directional IR, RS-232, Gigabit Ethernet, and USB 2.0 signals, the transceiver not only extends video, but unlike non-HDBaseT solutions, the unit also extends full control over them from a remote location, which makes it a perfect option for touchscreen panels. The True 4K/60 HDMI/USB HDBaseT 3.0 Transceiver extends 4K HDMI® signals in either the DCI standard (4096 � 2160) or UHD standard (3840 � 2160), both at 60 Hz (4:4:4) resolution, and supports HDCP 2.3, 3D, Deep Color, HDR, HDR 10+, as well as Dolby Vision®. It also incorporates HDMI audio embedding and de-embedding functions, which allows the integration of separate audio and video sources into a single device, or separation of an HDMI source into audio and video signals for use with component amplifiers or powered speakers. The flexible transceiver design of the transceiver allows use as either a transmitter or receiver in specific installations and a pair of them function as a complete, end-to-end HDMI and USB extension solution that is perfect for use in auditoriums, houses of worship, hospitality, and education applications.
- Flexible Transceiver design allows use as a transmitter or a receiver
- Extend uncompressed True 4K HDMI video up to 100 meters over Cat6A cable
- Supports full 4096 x 2160 @ 60 Hz (4:4:4) resolution with HDR, HDR+, and Dolby Vision®
- Bi-directional IR, RS-232, USB, and Gigabit Ethernet allow full control over remotely located devices
- Zero latency allows viewing 4K video in real-time from a distance of up to 100 meters
- Supports audio embedding or de-embedding to combine or separate audio and video signals
- HDMI local output allows connection of a local monitor without using a splitter
- Fully compliant with HDBaseT 3.0 standards
TRUE 4K VIDEO
Full 4096 � 2160 @ 60 Hz (4:4:4) resolution allows use with PCs and projectors that support the DCI 4K standard, plus all 4K UHD-supported devices.
ZERO LATENCY AT UP TO 100 METERS
Allows viewing of uncompressed 4K HDMI® video in real time, from up to 100 meters (328 feet) away.
HDMI AUDIO EMBEDDING AND DE-EMBEDDING
Integrate separate audio and video sources into a single device, or separate an HDMI source into separate audio and video signals for use with an amplifier.
COMPLETE CONTROL
Bi-directional IR, RS-232, USB, and Gigabit Ethernet allow full control over remotely located devices.
