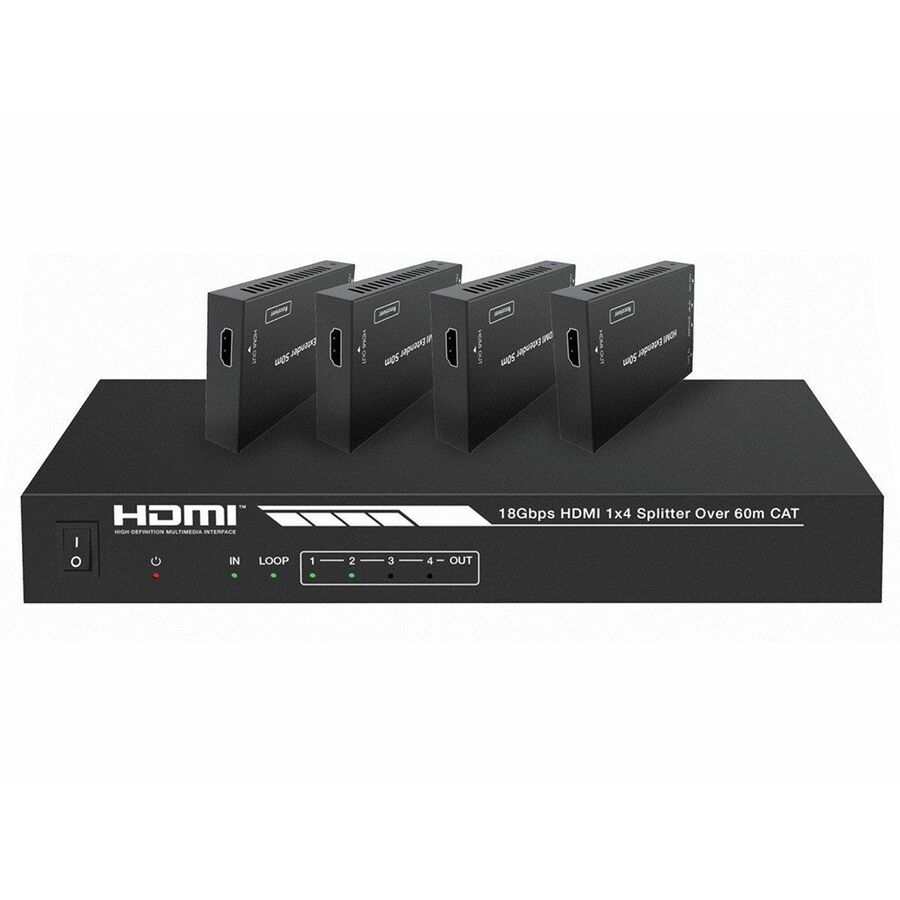

This 4K HDMI® 1x4 Splitter/Extender allows you to distribute a single HDMI video source to up to four distant displays. It can extend 4K@60Hz signals to distances up to 114 feet (35 meters), 4K@30Hz signals to distances up to 164 feet (50 meters), and 1080p@60Hz signals to distances up to 196 feet (60 meters) over a single Cat6/6a/7 Ethernet cable. It supports up to 7.1-channel audio pass-through, can extract the audio for separate amplification, and features advanced EDID® management. It supports the Power over Cable (PoC) feature, allowing the receivers to be powered by the transmitter over the Ethernet cable.
Features:
- Supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space
- Distributes a single HDMI® video source to four distant displays
- Compliant with the HDMI 2.0b and HDCP™ 2.2/1.x standards
- Provides up to 18Gbps video bandwidth
- Can extend 4K@60Hz signals to distances up to 114 feet (35 meters), 4K@30Hz signals to distances up to 164 feet (50 meters), and 1080p@60Hz signals to distances up to 196 feet (60 meters) over a single Cat6/6a/7 Ethernet cable
- Supports HDR10, HDR10+, Dolby Vision™, and Hyper Log-Gamma (HLG)
- Supports 7.1 high definition audio pass-through
- Can extract audio from the HDMI signal for distribution to digital coaxial and 3.5mm stereo analog audio outputs
- Supports one-way IR control signal passthrough
- Supports the Power over Cable (PoC) feature, allowing the receivers to be powered by the transmitter over the Ethernet cable
- Includes advanced EDID® management
