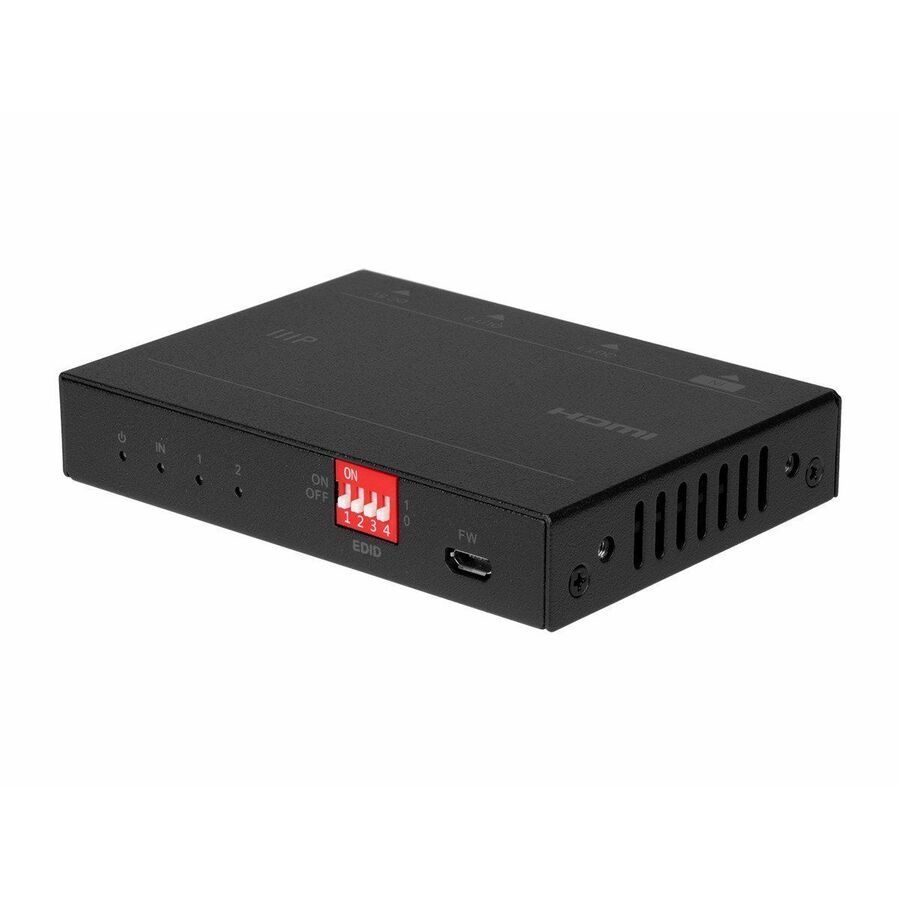

This Blackbird™ 4K Pro 1x2 Ultra Slim HDMI® Splitter allows you to distribute a single HDMI signal to two displays. It is compliant with the HDMI 2.0 and HDCP™ 2.3 standards and delivers up to 18Gbps of bandwidth. It supports video resolutions up to 4K@60Hz with the YCbCr 4:4:4 color space, including all 3D modes, and can automatically downscale 4K video for use with 1080p displays. It supports automatic EDID® detection and includes DIP switches for fixed EDID settings. The HDMI output ports provide 5 VDC, 200mA to power Active Optical Cables (AOC).
Features:
- Distributes a single HDMI® video signal to two displays
- Supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space, including all 3D modes
- Delivers up to 18Gbps video bandwidth
- Complies with the HDMI 2.0 and HDCP™ 2.3/1.4 standards
- Can automatically detect the EDID® from the displays and includes DIP switches for fixed EDID settings
- Supports automatic downscaling of 4K video for use with 1080p displays
- Supports HDCP Active and HDCP Passive modes
- HDMI output ports provide 5 VDC, 200mA to power Active Optical Cables (AOC)
- Built-in equalizer to allow the use of longer than normal HDMI cables
- Supports Consumer Electronic Control (CEC) pass-through
- Firmware can be upgraded using the built-in Micro USB port
