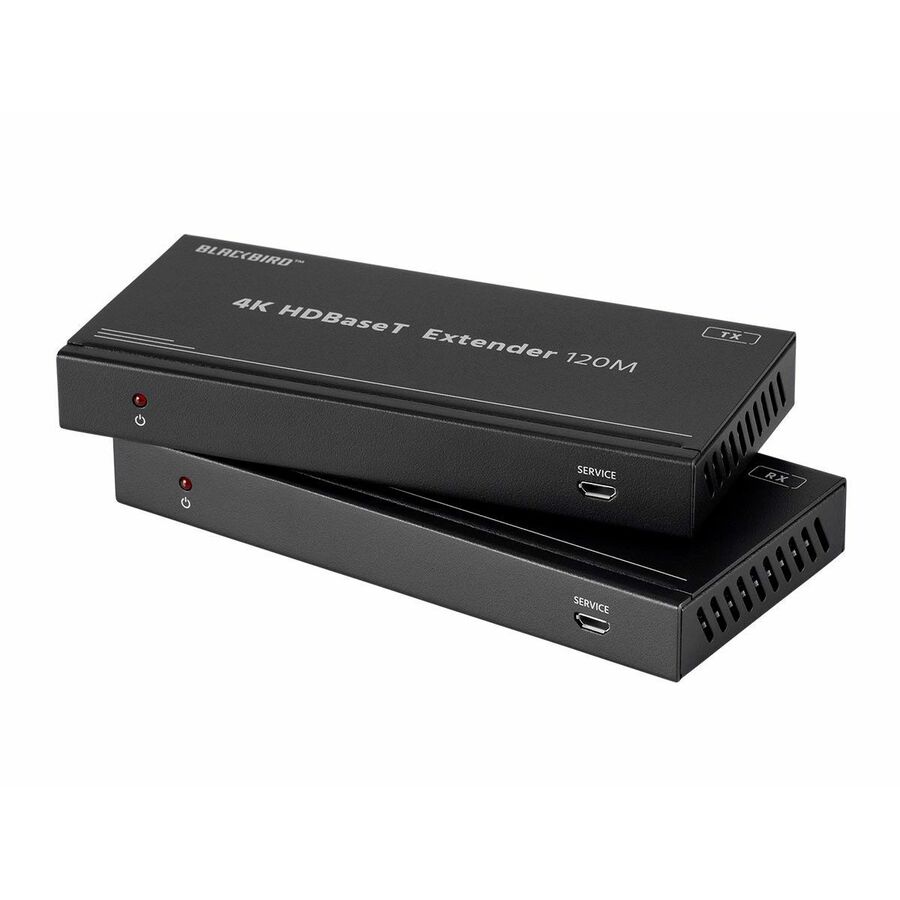

This Blackbird™ 4K HDBaseT™ Extender Kit allows you to extend 4K@60Hz HDMI® video signals to distances up to 394 feet (120 meters) over a single Cat6 Ethernet cable. It complies with the HDMI 2.0 and HDCP™ 2.2 specifications and supports up to 18Gbps bandwidth. It supports the Power over Cable (PoC) feature, allowing either the transmitter or receiver to receive its power from the other device over the connecting Ethernet cable.
The transmitter includes an HDMI loop output for connecting a local display and the receiver includes an analog audio output for connecting an external amplifier or powered speakers for amplification of audio de-embedded from the HDMI signal. It supports bidirectional IR and RS-232 pass-through and includes two IR transmitters, two IR receivers, and 2 Euroblock connectors for the RS-232 connections.
- Video Extender Transmitter/Receiver provides efficient and feasible audio/video transmission, decoding, and extending
- 1080p supported video mode for pleasurable viewing and dependable usage
- 3840 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
- HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
- HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
- The 41097 video extender transmitter/receiver provides plenty of freedom with wired connectivity
- 393.70 ft maximum operating distance to allow efficient coverage and maximum usability
- 4K graphics mode provides optimal video output with remarkable picture clarity
- Video Extender Transmitter/Receiver with hdtv application/usage to ensure maximum productivity with added feasibility
| Brand | |
|---|---|
| Brand | Monoprice |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 5.60 oz |
| Receiver Weight (Approximate) | 5.50 oz |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Operating Distance | 393.70 ft |
| Supported Video Modes | 1080p |
| Manufacturer | Monoprice, Inc |
| Video Ports | |
|---|---|
| HDBase-T | Yes |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 2 |
| Remote (IR) Output | 2 |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
| Miscellaneous | |
|---|---|
| Product Name | RS-232 , HDCP 2.2 , HDR , 18Gbps , YCbCr 4:4:4 , PoC , 4K@60Hz , 120m , Blackbird 4K HDBaseT Extender Kit , Loop Out and Bidirectional IR |
