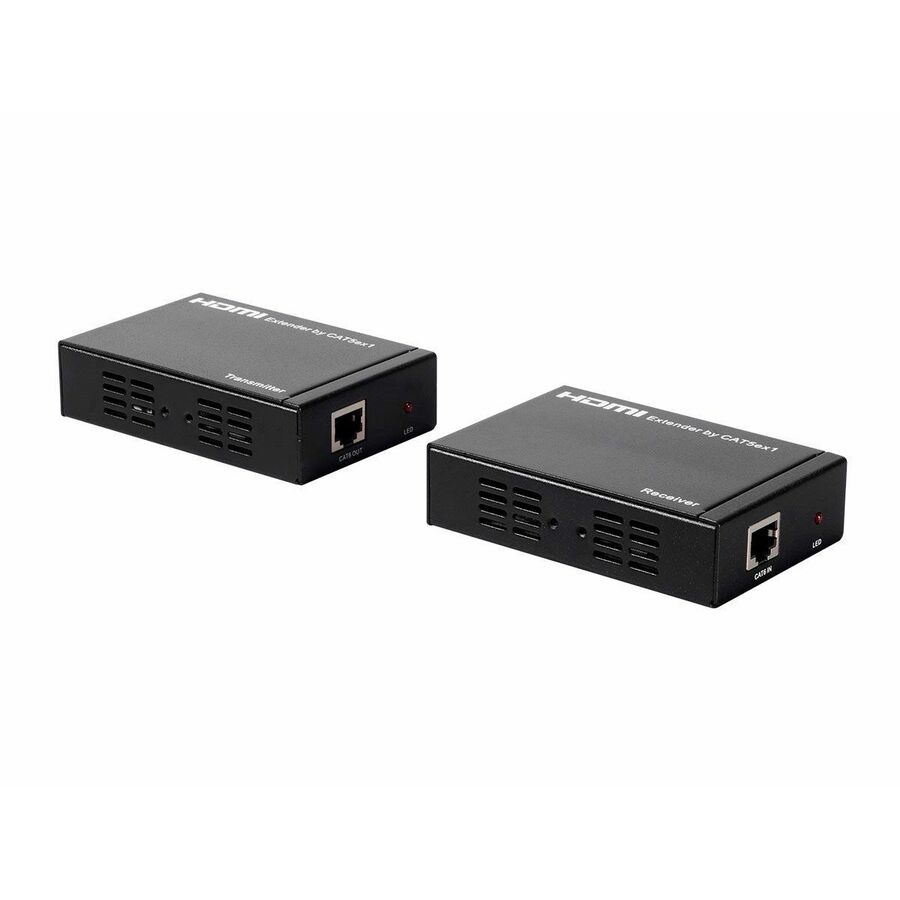

The Monoprice™ Blackbird™ HDMI® Extender can transmit HDMI video to distances up to 328 feet (100 meters) over a single Cat6 Ethernet cable. It provides a bandwidth of 6.75Gbps and supports 1080p video resolutions, 12-bit per channel Deep Color, and 48kHz LPCM digital audio. It features an IR blaster which gives you the ability to transmit infrared remote control signals, allowing for truly remote control of your equipment.
Extend up to 328ft:This extender can transmit HDMI® video to distances up to 328 feet (100 meters) over a single standard Cat6 coaxial cable.
IR Control:The bidirectional IR blaster allows you to control your video source device using its IR remote control from the remote location or to control the display from the source location.
Compatibility:This extender carries High Speed HDMI signals at resolutions up to 1080p, making it compatible with DVD players, Blu-ray Disc™ players, gaming consoles, and more.
- Provides 6.75Gbps bandwidth
- Equalizes and recovers incoming TMDS® data
- IR blaster transmits IR signals from the remote location to the HDMIsource device
- Supports high-definition audio, including 48kHz LPCM digital audio
- Supports video resolutions up to 1920x1080p
- Supports 12-bits/channel (36-bits total) Deep Color
- Supports the HDCP™ 1.1 standard
| Brand | |
|---|---|
| Brand | Monoprice |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Data Link Protocols | TCP/IP |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1080 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 1 |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328.08 ft |
| Supported Video Modes | 1080p |
| Manufacturer | Monoprice, Inc |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 6 |
