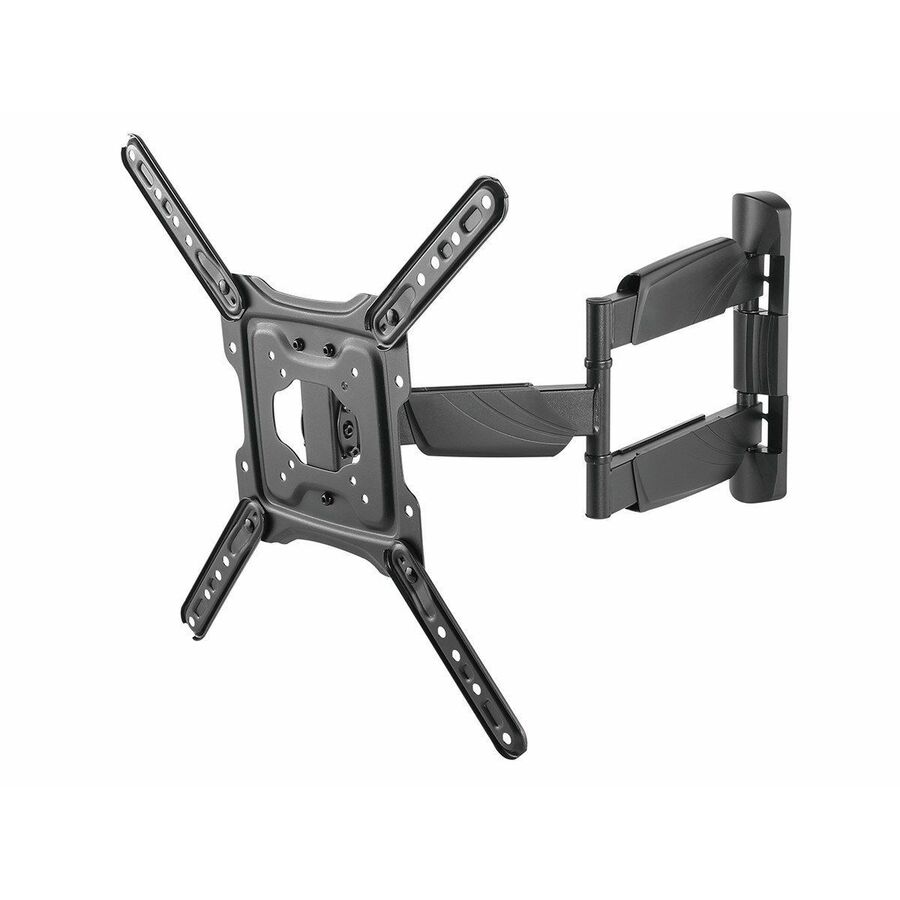

Full-Motion Articulating TV Wall Mount Bracket
For 23" to 55" flat and curved TVs weighing up to 77 pounds
Specifically designed for easy installation, this Monoprice™ EZ™ Series Full-Motion Articulating TV Wall Mount Bracket features a simple design with solid holding power. The full-motion design allows you to adjust your TV for the most comfortable viewing angle, no matter where you choose to sit. Constructed of cold-rolled steel, it can swivel up to 90° side-to-side, tilts from +5° ~ -15°, rotates ±3°, and can extend from 1.9" to 20.3" from the wall. It is designed for curved or flat screen TVs from 23" ~ 55" weighing up to 77 pounds, with VESA® mounting patterns from 75x75 to 400x400.
- Fits VESA® patterns from 75x75 to 400x400
- Designed for 23" to 55" displays
- Swivels ±90 degrees
- Tilts +5 ~ -15 degrees
- Rotates ±3 degrees
- 77 pounds weight capacity
- Extends from 1.9" to 20.3" from the wall
- Designed to work with both flat and curved displays
- Built-in cable management
- UL® certified
FULL-MOTION ARTICULATING WALL MOUNT
Monoprice™ full-motion wall mounts offer the ultimate in comfort and flexibility. The articulated swing arm allows you to move the TV towards or away from the wall, tilt it up or down, and angle it from side-to-side. The articulating plate holding the TV also allows you to rotate the TV to ensure it is level.
"IS THIS MOUNT COMPATIBLE WITH MY TV?"
- Check your TV's manual for its VESA® mounting pattern or measure the horizontal and vertical distances between the mounting holes (in mm).
- This mount supports VESA patterns between 75x75 and 400x400.
- This mount supports TVs weighing up to 77 pounds.
- The screen size range is only a suggested approximation. Your TV is compatible as long as its VESA mounting pattern is between 75x75 and 400x400 and it weighs no more than 77 pounds.
DESIGNED FOR FLAT AND CURVED DISPLAYS
This mount is designed for 23" ~ 55" flat and curved displays.
HEAVY-DUTY STEEL CONSTRUCTION
This Monoprice™ wall mount bracket is constructed from high quality, cold-rolled steel, which makes it capable of supporting displays weighing up to 77 pounds. It can be easily mounted to brick, concrete, or wood stud walls.
- Makes it quick, convenient, and simple to adjust and reposition connectors in a modular mounting system
- Can withstand a maximum weight of 77 lb
- Supports 55" displays
- Built with cold rolled steel product material to offer longevity and great resistance to damage and deterioration
- Full Motion feature for maximum productivity with added dependability
- Brick application/usage for maximum productivity with convenience and optimal results
| Brand | |
|---|---|
| Brand | Monoprice |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 55" |
| Minimum Screen Size Supported | 23" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 77 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Low Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 75 x 75 |
| Mount Surface | Wood Stud |
| Minimum Tilt Angle | -15° |
| Maximum Tilt Angle | 5° |
| Maximum Swivel Angle | 90° |
| Minimum Swivel Angle | -90° |
| Maximum Rotate Angle | 3° |
| Minimum Rotate Angle | -3° |
| Appearance | |
|---|---|
| Mount Function | Cable Management |
| General Features | |
|---|---|
| Rugged | Yes |
| Manufacturer | Monoprice, Inc |
| Compliance & Certification | |
|---|---|
| UL Listed | Yes |
| Brand | Monoprice, Inc |
| UPC/GTIN | 889028174180 |
| MPN | 43207 |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
