Each major revision of the Serial ATA interface specification has doubled the maximum data transfer rate. The latest SATA Revision 3.0 allows for data transfer speeds of up to 6 Gbps.
While the cables for all three revisions appear to be similar and will physically fit into the connectors on all SATA drives and controllers, the higher data transfer rate of SATA 6 Gbps requires higher quality materials and closer tolerances than the previous two revisions required.
Monoprice™ SATA 6 Gbps cables are certified to provide maximum speeds from your SATA system, up to 6 Gbps when used with equivalent devices and controllers.

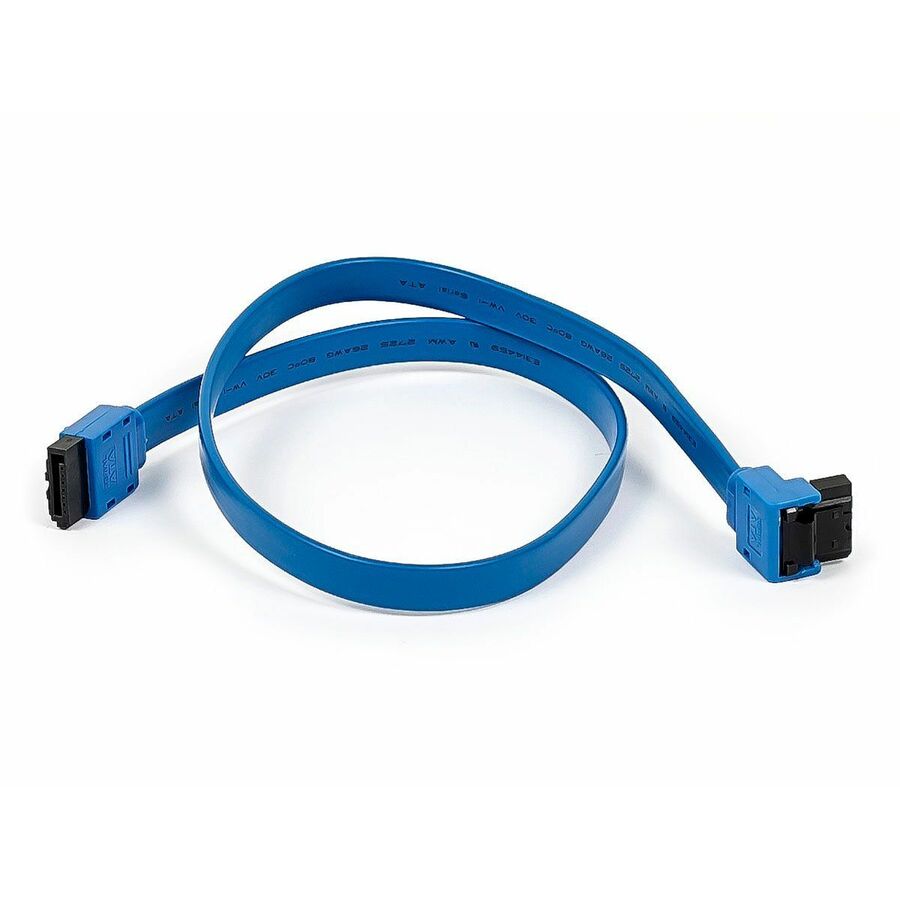

One end of this internal cable features a straight connector, while the other end uses a 90-degree connector, which can make for better cable management in some situations, especially in tight spaces. Each end has an attached locking latch, to ensure that your connections do not come loose due to movement or vibration.
Note that SATA 6 Gbps cables are backwards compatible and can be used with SATA 3 Gbps and SATA 1.5 Gbps devices. However, the data transfer of the SATA subsystem will be limited to that of the slowest device. So, for example, if a SATA 6 Gbps cable is connected to a SATA 3 Gbps drive and a SATA 1.5 Gbps controller, the drive will be limited to a transfer rate of 1.5 Gbps.
- Enables quick and reliable data transfer, ensuring smooth connectivity and efficient performance for everyday file sharing and device synchronization
- Features SATA cable type designed to deliver smooth usability and consistent operation for varied connectivity requirements
- Locking Latch feature enhances usability and operational efficiency, providing reliable performance and simplifying everyday connectivity tasks
| Brand | |
|---|---|
| Brand | Monoprice |
| General Features | |
|---|---|
| Data Transfer Rate | 6 Gbit/s |
| Manufacturer | Monoprice, Inc |
| Cables | |
|---|---|
| Cable Length | 1.50 ft |
| Cable Type | SATA |
