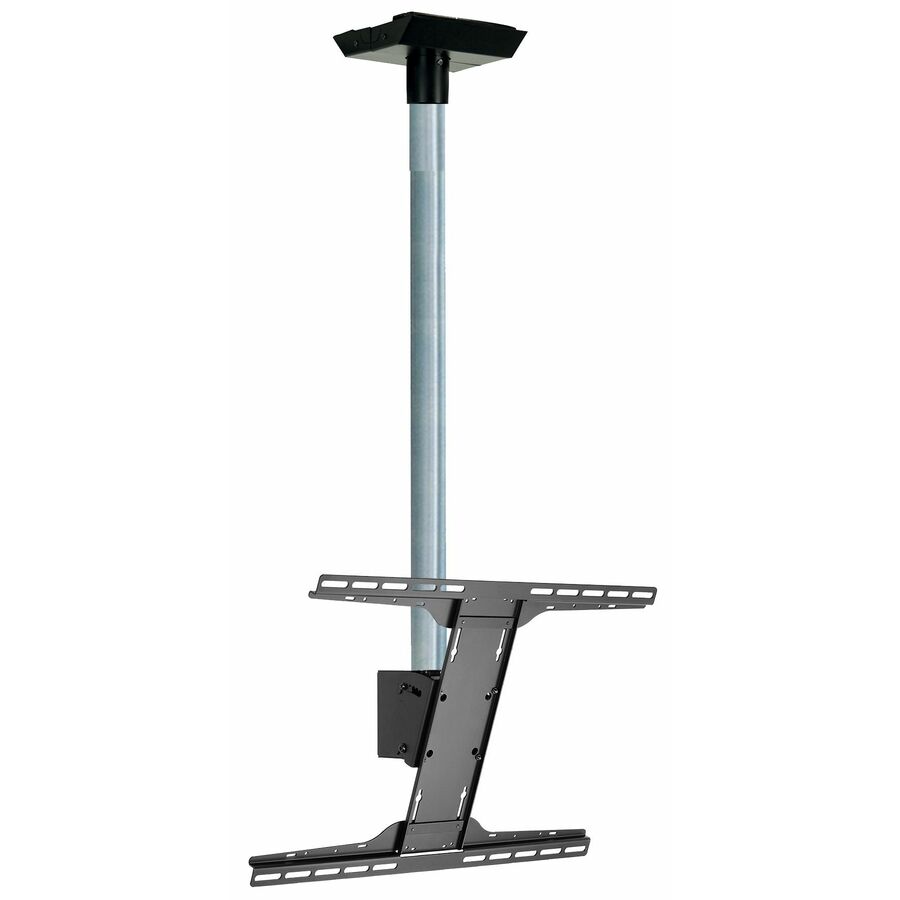

Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfil multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT20 comes with all of the components required to ceiling mount a single 32-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.
- Kit includes following parts: 1 x MOD-CPF, 1 x MOD-P200, 1 x MOD-FPMS and 1 x MOD-UNL
- 2m flat panel ceiling mount kit
- MOD-P200 50mm diameter column supplied as 2m length and cuttable to required size
- MOD-CPF Heavy duty ceiling plate securely mounts to concrete or wood joist ceilings (Optional aesthetic cover MOD-ACF)
- MOD-UNL Large universal adaptor supports 32-75" displays up to VESA® 600x400mm, 60kg (132lbs) max. weight
- MOD-FPMS Single screen mount allows addition of single screen mounting adaptor, with quick connect feature delivering -5° to +20° tilt and incremental lock at every 5° interval
- Integrated cable channel runs through column with open access at both ends for ease of use
- Portrait or Landscape screen installation for added versatility in digital signage applications
| Brand | |
|---|---|
| Brand | Peerless Industries |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 75" |
| Minimum Screen Size Supported | 32" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 132 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 600 x 400 |
| Mount Surface | Ceiling |
| Orientation | Landscape/Portrait |
| Drop Length | 78.74" |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 20° |
| Appearance | |
|---|---|
| Mount Function | Flat |
| Finishing | Powder Coated |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
