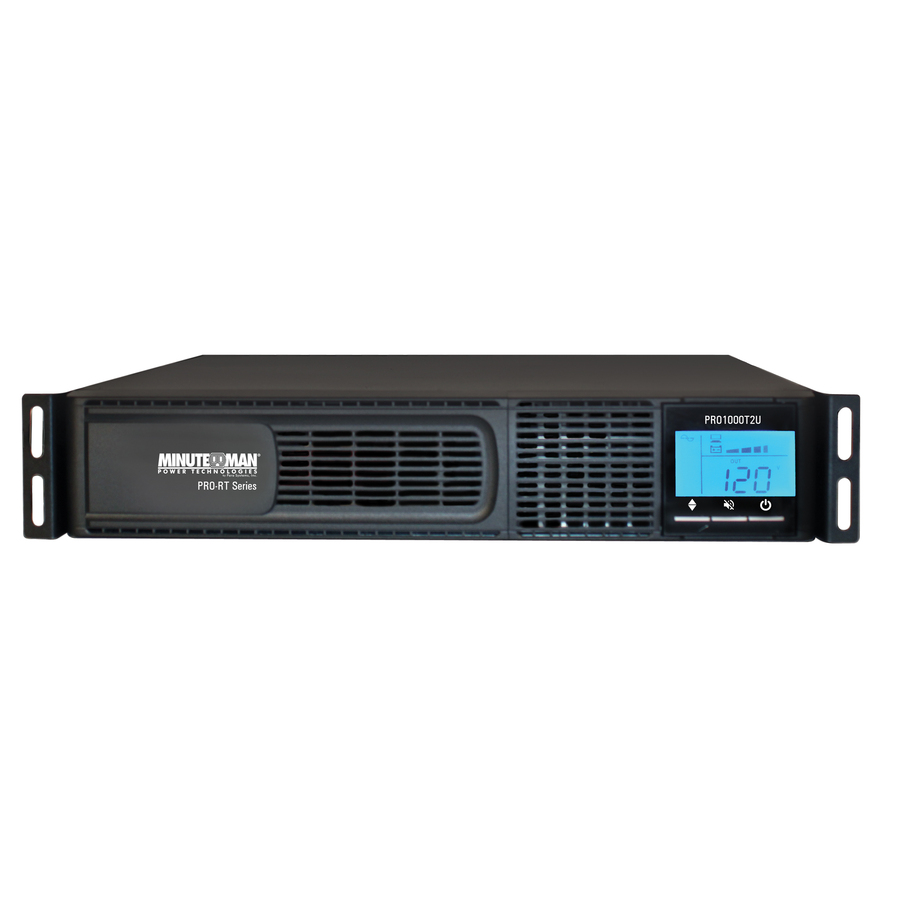

Perfect Protection For Rack-Mount Systems
The PRO-RT Series is a value-priced, yet feature-rich UPS incorporating line-interactive technology that preserves battery power by providing voltage regulation during brownouts or voltage sags. The PRO-RT Series can be used to support servers, telecom or VoIP systems, security systems, plus many other applications.
The PRO-RT UPSs include many useful features such as load-shedding with two load banks, independent battery bypass, plus auto-re-start when power is restored after an extended power outage.
Versatile Communications
Each PRO-RT model is compatible with Minuteman's free downloadable SentryHD™ power management and diagnostic software. When installed on a workstation or server, the user gains complete control over monitoring and managing the UPS using a convenient web browser-based interface. The SentryHD software communicates via a built-in USB port on the UPS. In addition, managing the UPS within a Network Management System (NMS) is easy with the installation of an optional SNMP card.
Designed for versatility, the PRO-RT models can be mounted in a standard rack using the attached rackmount ears. All units can also be installed as a tower using the included feet. An optional kit is available for mounting the unit to a wall.
High-end Features - Budget Friendly Price
The PRO-RT offers many features normally found on higher priced models, including an LCD status display which shows the following:
- Input / Output voltage and frequency
Monitor the status of your utility power - UPS and battery mode / status
Eliminate guesswork with straightforward display of the unit's status - Load capacity
Load indicator shows how much electrical load is being placed on the unit - Estimated runtime based on connected load
Find out how much backup time remains during a blackout right on the unit
Ideally Suited to Protect:
- Network Equipment
- Servers
- Workstations
- VoIP Communications
- IP and Analog Video Equipment
- Works adequately in situations where the supply is prone to sags and surges
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
- 700 W load capacity - backup power for your valuable electronics
- 1000 VA load capacity - work without any interruption during power outages
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
- Line-interactive UPS with fax machine application/usage to ensure maximum usability and reliable power supply
- 120 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for better reliance and maximum usability
- Tower/Rack/Wall Mountable form factor for added reliability and dependability
| Brand | |
|---|---|
| Brand | Para Systems |
| Power & Battery | |
|---|---|
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 103 V AC - 136 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 700 W |
| Load Capacity (VA) | 1000 VA |
| Backup/Run Time (Full Load) | 4 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Simulated Sine Wave |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack/Wall Mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Para Systems, Inc |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Environmentally Friendly | Yes |
