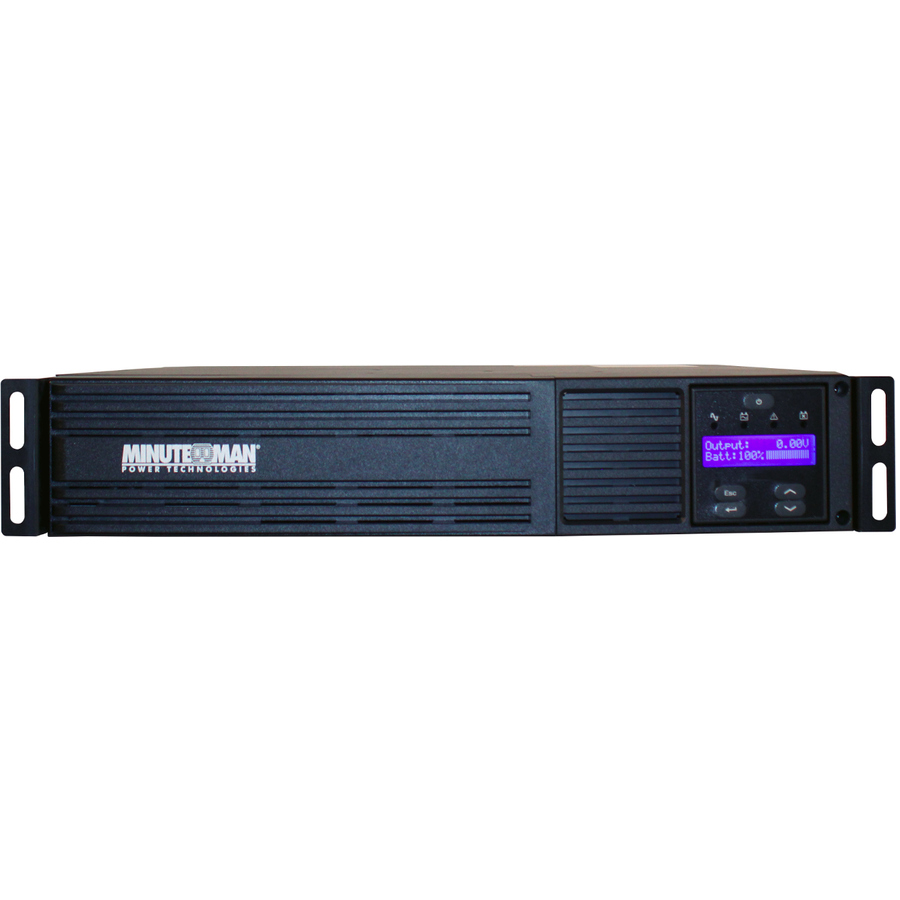

Backup Versatility Redefined: Line Interactive Technology with True-sinewave output
The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!
The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.
EXR® Key Features
Key Features Include:
- 0.9 power factor - increased capacity without migrating to larger models
- NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
- UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
- Load shedding - two power banks allow equipment prioritizing for increased runtime
- Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.
- Auto-recognition of external battery packs - automatically recalculate runtimes
- Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
- Flexible installation - rack or tower configurable; wall mount kits available
- Simultaneous USB, RS232, and SNMP communications
- Minuteman® SentryHD™ - UPS monitoring and control software included
- Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
- Dedicated remote Emergency Power Off (EPO) port
- 120V & 208V - 208V models available (1500 & 3000VA models)
- cULus certification - NOM certification (Mexico)
- RoHS 2 compliant
- Energy Star 2.0 certification
Front LCD Panel
The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:
- Input and Output Voltage
- Estimated runtime
- UPS Operating Mode
- UPS Self-test results
- Battery Condition
- Display model and serial number
- View load bank status and capacities
- Display battery module part number
- Replace Error Codes with descriptions
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.
- Works adequately in situations where the supply is prone to sags and surges
- Up to 7 minute runtime on full load to preserve critical data from power shortage interruptions
- 675 W load capacity - backup power for your valuable electronics
- 750 VA load capacity - work without any interruption during power outages
- NEMA 5-15P plug/connector type for a secure, feasible operation
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
- Single Phase phase for your convenience and optimal usage
- Line-interactive UPS with network application/usage to ensure maximum usability and reliable power supply
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Para Systems |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| Dataline Protection | RJ-45 |
| EPO Port | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage Range | 80 V AC - 164 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 675 W |
| Load Capacity (VA) | 750 VA |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 1000 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack/Wall Mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Para Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Elevation | 9842.52 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
