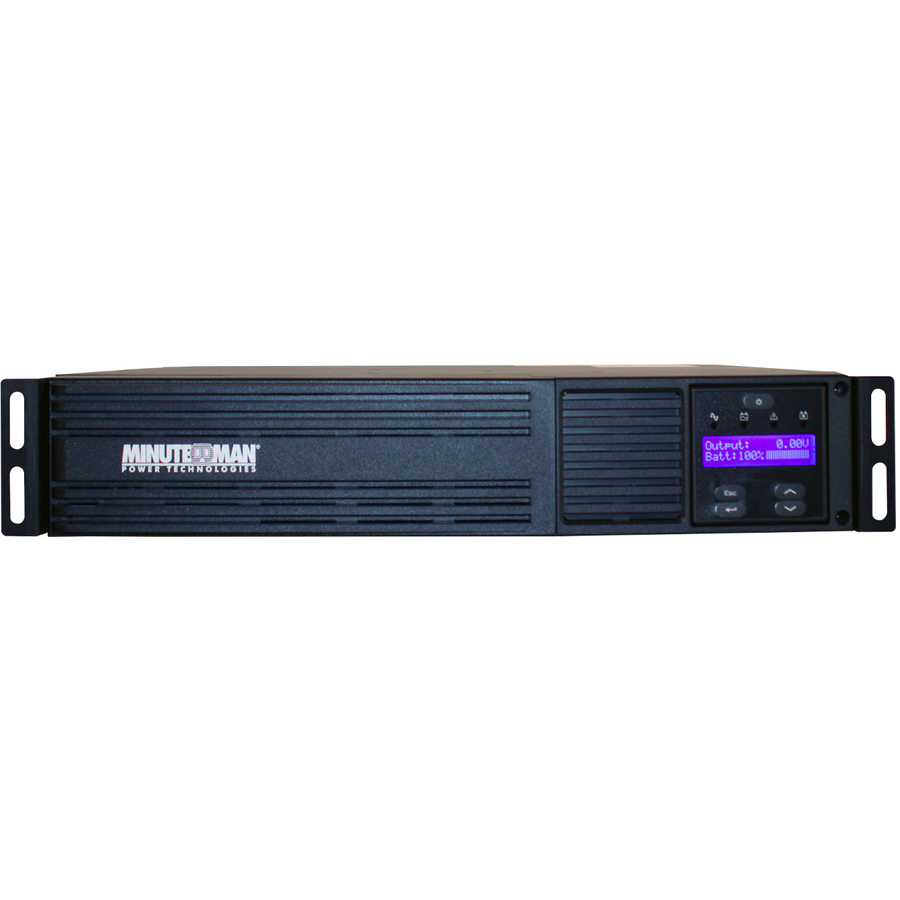

Line interactive sine wave rack/wall/tower UPSs with LCD Display for network data centers, remote IDF/MDF network closets, security systems, and education networks
The Minuteman EXR Series UPS offers a true sine wave output, robust features, and versatile configuration options for a full range of critical networking applications.
- Works adequately in situations where the supply is prone to sags and surges
- Up to 4.50 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 1800 W load capacity
- 2000 VA load capacity - work without any interruption during power outages
- NEMA L5-20 plug/connector type for a secure, feasible operation
- NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
- Single Phase phase for your convenience and optimal usage
- Line-interactive UPS with network application/usage to ensure maximum dependability and optimal performance
- 120 V AC input voltage for better reliance and maximum dependability
- 120 V AC output voltage for optimal performance with maximum feasibility
| Brand | |
|---|---|
| Brand | Para Systems |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| AVR | Yes |
| EPO Port | Yes |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Type | NEMA L5-20 |
| Input Voltage Range | 150 V AC - 281 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 230 V AC |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2000 VA |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 1000 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/Webcard |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack/Wall Mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Para Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Elevation | 9842.52 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
