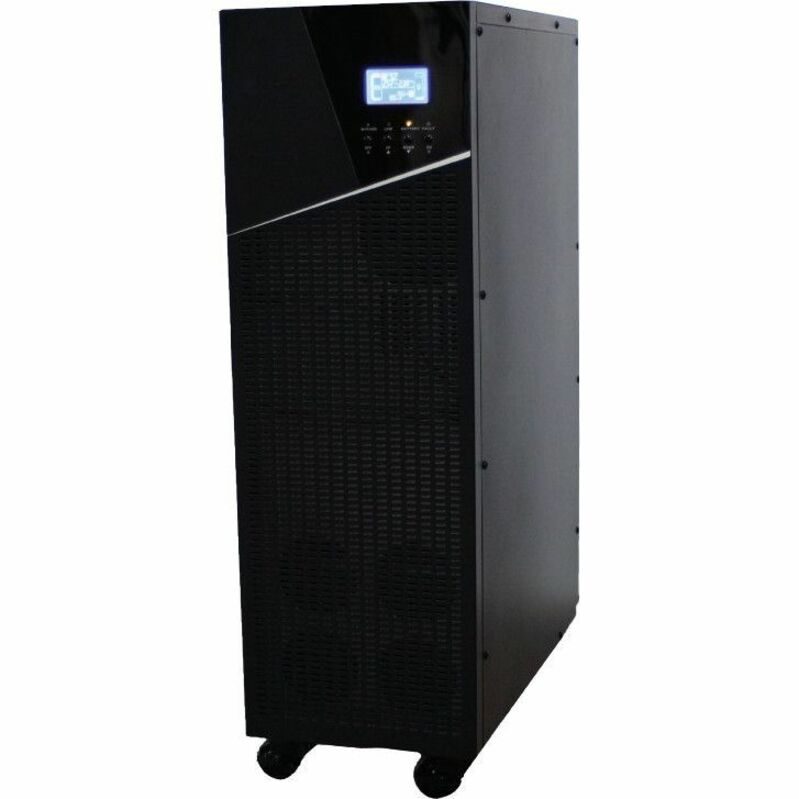

True On-line UPS Provides Maximum Protection | Endeavor® 6/10kVA Uninterruptible Power Supply
The Minuteman® Endeavor® 6/10kVA Tower Series UPS combines transient free, pure sine wave output and extended runtime capability for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.
Ultra-Configurable Value for Large Systems
The Endeavor Series is available in two models with configuration options and multiple voltage configurations to ensure a proper solution is available for most applications. Both Endeavor models include 208-240V input and 120/208/230/240VAC output. Additional accessories, including an SNMP communication card and one or more external battery packs would further tailor the Endeavor to individual's needs.
A perfectly regulated, continuous sine wave output with zero transfer time offers guaranteed uptime and compatibility with all equipment types.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
- 6000 W load capacity - backup power for your valuable electronics
- 6000 VA load capacity - work without any interruption during power outages
- 20 batteries for optimal performance with maximum usability
- Lead Acid battery chemistry to better suit your requirements with maximum productivity
- Hardwired plug/connector type for maximum usability with added reliability
- Hardwired receptacle type offers maximum safety, convenience, and increased usability
- Single Phase phase for better reliability and ensure maximum productivity
- Double Conversion Online UPS with data center application/usage to ensure maximum usability and reliable power supply
| Brand | |
|---|---|
| Brand | Para Systems |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Non-spillable , Sealed , Valve-regulated |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 20 |
| Input Voltage Range | 110 V AC - 300 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 6000 W |
| Load Capacity (VA) | 6000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 14 Minute |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 880 J |
| General Features | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 140°F (60°C) |
| Environmentally Friendly | Yes |
