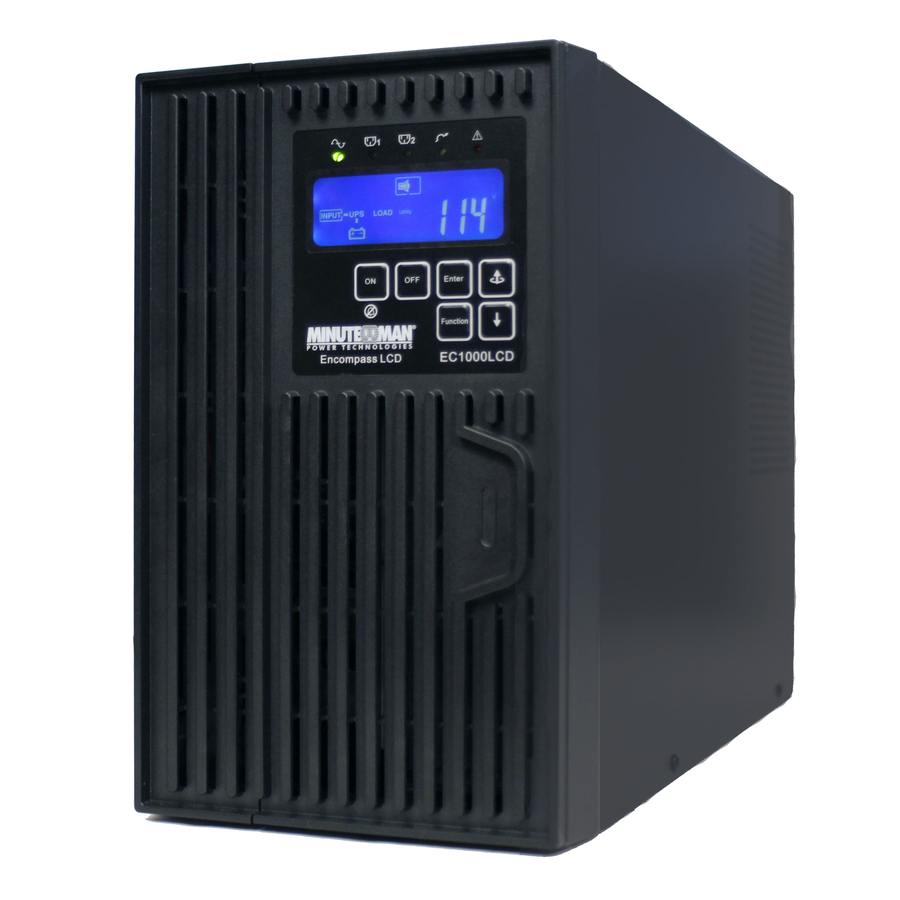

On-Line UPS, Comprehensive Protection
Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double-conversion technology, an on-line UPS provides an impenetrable "electrical firewall," providing the most fail-safe power protection available.
Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full-device management using Minuteman's SentryHD™ power monitoring and control software.
The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to meet the reliability expectations of even the most demanding critical applications. Two form factors are available in the Encompass Series: a tower-only version (EC-LCD) and a rack/tower version (EC-RT).
Minuteman's Encompass Series delivers the comprehensive protection only offered by a true on-line UPS. By totally regenerating the incoming AC signal through double-conversion technology, an on-line UPS provides an impenetrable "electrical firewall," providing the most fail-safe power protection available.
Designed to protect the most critical equipment used in data centers, voice and data communications, security systems, and light industrial applications. The Encompass Series is SNMP-capable (card optional) and allows full-device management using Minuteman's SentryHD™ power monitoring and control software.
The Encompass product line is a value-priced on-line UPS solution that provides an outstanding set of features, true sinewave output, a three-year warranty (including batteries), and is designed to meet the reliability expectations of even the most demanding critical applications. Two form factors are available in the Encompass Series: a tower-only version (EC-LCD) and a rack/tower version (EC-RT).
- Automatic internal bypass
- Cold Start capable
- Hot-swappable battery replacement
- Extended runtime capable
- Independent Battery Bypass - allows the UPS to provide voltage regulation and spike/surge protection either with dead batteries or without batteries
- Highly-efficient, Economy Mode option
- Output receptacle control with 2 banks
- 0.9 output power factor
- Easy-to-read LCD display
- True on-line, double-conversion technology
| Brand | |
|---|---|
| Brand | Para Systems |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Non-spillable , Sealed |
| Replaceable Battery | Yes |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Dataline Protection | RJ-11 |
| EPO Port | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Input Voltage Range | 0 V AC - 160 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Load Capacity (Watt) | 900 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 140 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Para Systems, Inc |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 14°F (-10°C) - 122°F (50°C) |
| Operating Humidity | 10% - 90% |
| Storage Relative Humidity | 10% - 90% |
| Maximum Operating Elevation | 10000 ft |
| Maximum Storage Elevation | 50000 ft |
| Environmentally Friendly | Yes |
| Sound Emission (A-Weighted) | 55 dB(A) |
