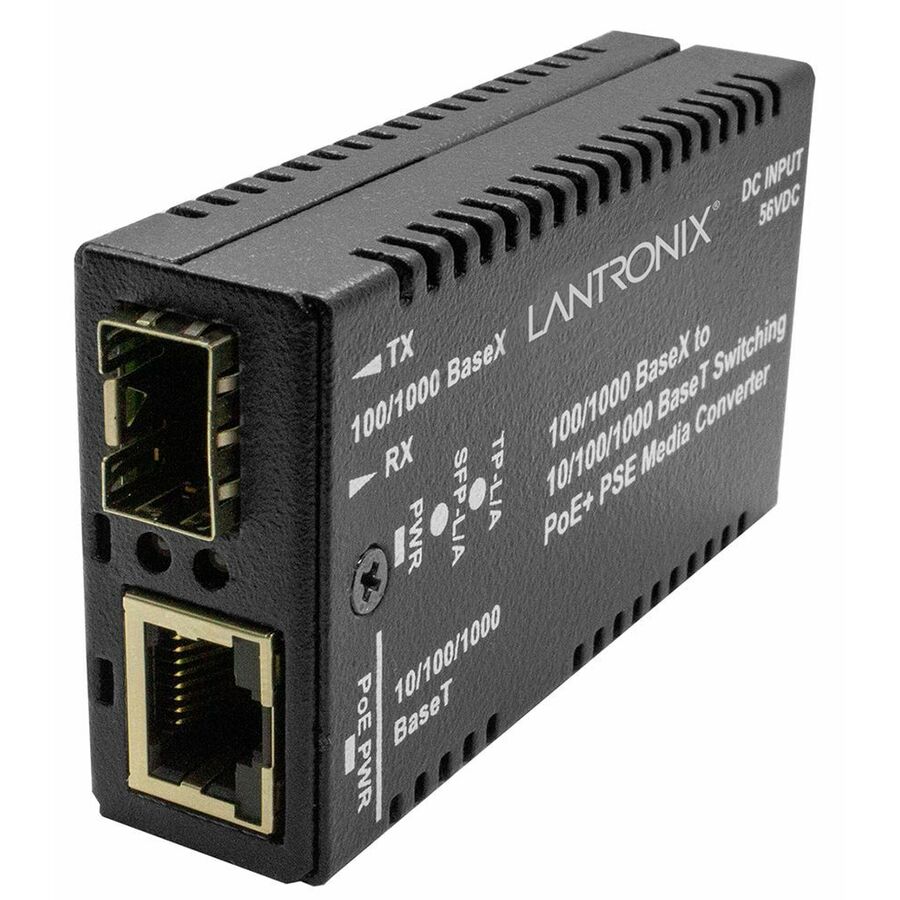

This Gigabit Ethernet Stand-alone Mini Media Converter provides cost-effective media conversion between 10/100/1000Base-T ports and 100/1000Base-SX/LX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, but it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber.
In addition to providing copper to fiber conversion, this converter is also classified as Power Sourcing Equipment PSE, meaning it combines data received over the fiber optic link with 56VDC input power to provide power and data to a Powered Device PD over the twisted Pair cable, while complying with the IEEE 802.3af and IEEE 802.3at PoE+ standards. This allows the user to take advantage of the benefits of fiber cabling, along with the benefits of Power-over-Ethernet PoE technology.
Supporting PoE allows this converter to send data and power to devices like VoIP Phones, Security Cameras, and Wireless Access Points, especially if they need to be located in remote areas of your network that can only be reached with fiber optic cabling. NDAA Compliant, TAA Compliant
- Wall mount, DIN Rail, or table top installation
- External AC/DC power supply included with country specific power cord
- 2-port 10/100/1000 copper to fiber media conversion with IEEE 802.3at PoE+ on the copper port
- Supports full 30 Watts of power to the twisted pair port
- SFP slots can support any 100Base-FX or 1000Base-X fiber SFP module
- Supports Auto-Negotiation
- Supports Auto-MDI/MDIX
- Active Link Pass Through ALPT
- Automatically detect the loss of Receive Rx signals on either fiber or copper port and propagate the failure to the end devices
- Auto Power Reset
- Re-set the power to the end PD device during a Link Pass Through LPT event, ensuring it is ready to go when the fault is corrected
- Jumbo frame support
- 8K MAC address table
- LEDs indicators for power status, Link/Activity per port, & PoE status/ classification
- Plug-and-Play fixed configuration, no dip-switches
- Over-current protection
- Under-current protection
- Fault protection input
| Brand | |
|---|---|
| Brand | Lantronix |
| Power & Battery | |
|---|---|
| Input Voltage | 56 V DC |
| Power Source | AC/DC |
| Power Consumption | 34 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100/1000Base-X |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of PoE+ (RJ-45) Ports | 1 |
| PoE Port Type | PSE |
| Size / Dimensions | |
|---|---|
| Form Factor | Tabletop |
| General Features | |
|---|---|
| Maximum Distance Supported | 0.10 km |
| Manufacturer | Lantronix, Inc |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
